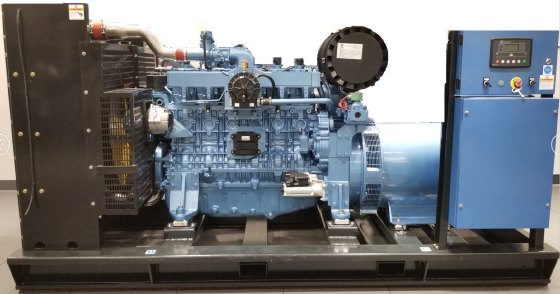

WEICHAI WPG280B86NG Series 60Hz/250KWe Gas Generator Set
WEICHAI WPG280B86NG Series 60Hz/250KWe Gas Generator Set

WEICHAI WPG280B86NG Series 60Hz/250KWe Gas Generator Set

Score
Sold: 0 Question And Answer 0

MOQ: 1 PCS

Note: If you have any questions,please contact us

  • High reliability, low emissions, low noise
  • Have kinds of domestic product certification and CE certification
  • By using electronic control technology, the emission meets the national emission standard III
  • WPG280B86NG
Weichai Power Co., Ltd.

Weichai Power Co., Ltd.

Since:

1946

You May Also Like

Product Detail Parameters

Model WPG280B86NG Frequency 60Hz
Standby Rating kVA 350 Standby Rating KWe 280
Prime Rating kVA 313 Prime Rating KWe 250
Engine Model WP13D317E301NG

International Standard Number

WPG280B86NG

Product Description

250kW GAS gen-set data sheet



Gen-set Specification
ModelWPG280B86NG
Prime250kW/313kVA
Standby280kW/350kVA
Voltage/ Frequency480V/ 60Hz
Power Factor0.8- 3 Phases
EmissionChina State 3/ EU Stage 3A
Noise level  dB(A)

B Series: ≤102

L Series: ≤75 @7m



Standard Configurations
♦ Proven ECM and gas intake system♦ IP23♦ DeepSea Controller
♦ DC24 electric starter& alternator♦ H type insulation♦ Legrand Circuit Breaker
 Puller type fan with Radiator♦ Air filter& muffler♦ NG Shutoff valve
 Maintenance-Free batteries w/ wires♦Battery Charger♦Oil Drain Valve
Forklift Groove Skid with Shock Absorber
Options
² Automatic Main Failure (AMF)² paralleling system panel² Sound Proof Enclosure
² Automatic Transfer Switch (ATS)² Telematics kit² Trailer type station
² Jacket water &oil heater kit² LPG vapor kit² Spare Parts/ Special tool
² H2S Purification System Packing² CHP System Packing² Telematics for remote display



Engine Technical Data

Base Data

Model:                 WP13D317E301NG

NO. of Cylinders:               6

Type:                    In-Line ,4 Stroke

Aspiration:              Turbocharged intercooled

Cooling Method:             Water

Governing Type:             ECM control

Compression ratio:           9.7:1

Fuel Type:                 Natural Gas, Propane

Emission:                  EPA Certified



Displacement:              12.54L

Bore/Stroke:               127/165mm

Electric system:             DC24V

Outline Dimension:     2150×1136×1359mm

Dry weight:                  1060kg

Prime Power:                 288kW

Standby Power:               317kW

Rated NG Fuel Consumption:     72L/h

Speed in Stability:             <5%

Lubrication System

Oil filter control method:     Full flow type

Total Oil Capacity:           36L

Oil Type:                  CF15W/40

 Gas System

Recommended  Gas:  Pipeline gas or natural gas (methane≥70%, sulfur content ≤20 mg/m3)

Gas pressure:               3~7 kPa

Air System

Air Filter Type:                        Dry-type

Max. Air Intake Restriction:              ≤6 kPa

Recommended air filter mass flow:       1500 kg/h

Exhaust System

Silencer type :                 horizontal

Silencer Noise Reduction Level:   15 dB(A)

Exhaust Gas Temperature °C:       ≤650

Cooling System

Coolant Capacity:             75L



Water pump type:           Centrifugal



Alternator Technical Data

Physical Data

Manufacturer:          Stamford/ Leroy-some

Model:                HCI 4D/LSA 46.3 M7

NO. of bearing:                   1

Insulation Class:                  H

Steady Voltage Regulation:      ≤±2.5%



Ingress Protection Rating:      IP21

Winding Pitch-code:           2/3

Wire:                       12

Excitation:                Brushless

Rated Power Factor:            0.8



Gen-set Dimensions & Weights

 LengthWidthHeightWeight
B-Series3200 mm1315 mm1876 mm2925 kg
L-Series4450 mm1400 mm2200 mm3690 kg




Remark


Standby Rating:

These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous tested (as defined in ISO 8528-3).

Prime Rating:

These ratings are applicable for supplying continuous electrical power (at variable load) in the lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can  supply 10% overload power for 1 hour in 12 hours.
