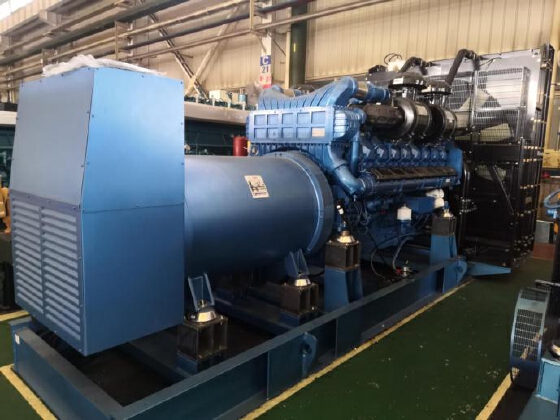

WEICHAI WPG1400B7NG Series 1120kWe/50Hz Gas Generator Set
WEICHAI WPG1400B7NG Series 1120kWe/50Hz Gas Generator Set

WEICHAI WPG1400B7NG Series 1120kWe/50Hz Gas Generator Set

Score
Sold: 0 Question And Answer 0

MOQ: 1 PCS

Note: If you have any questions,please contact us

  • High reliability, low emissions, low noise
  • Have kinds of domestic product certification and CE certification
  • By using electronic control technology, the emission meets the national emission standard III
  • WPG1400B7NG
Weichai Power Co., Ltd.

Weichai Power Co., Ltd.

Since:

1946

You May Also Like

Product Detail Parameters

Model WPG1400B7NG Frequency 50Hz
Standby Rating kVA 1400 Standby Rating KWe 1120
Prime Rating kVA 1400 Prime Rating KWe 1120
Engine Model 16M33D1280NG10

International Standard Number

WPG1400B7NG

Product Description



Gen-set Specification
ModelWPG1400B7NG
Prime1120kWe/ 1400kVA
Standby1120kWe/ 1400kVA
Voltage/ Frequency400V/ 50Hz
Power Factor0.8- 3 Phases
EmissionChina State 3/ EU Stage 3A
Noise level  dB(A)

B Series: ≤102

L Series: ≤75 @7m



Standard Configurations
♦ Proven ECM and gas intake system♦ IP23♦ DeepSea 7320 Controller
♦ DC24 electric starter& alternator♦ H type insulation♦ Circuit Breaker
 Puller type fan with Radiator♦ Air filter& muffler♦ NG Shutoff valve
 Maintenance-Free batteries w/ wires♦Battery Charger♦Oil Drain Valve
Forklift Groove Skid with Shock Absorber
Options
² Automatic Main Failure (AMF)² paralleling system panel² Sound Proof Enclosure
² Automatic Transfer Switch (ATS)² Telematics kit² Trailer type station
² Jacket water &oil heater kit² LPG vapor kit² Spare Parts/ Special tool
² H2S Purification System Packing² CHP System Packing² Remote Radiator for COP/PRP




Engine Technical Data

Base Data

Model:                16M33D1280NG10

NO. of Cylinders:               16

Type:                    V type ,4 Stroke

Aspiration:                  TA

Cooling Method:             Water

Governing Type:             ECM control

Compression ratio:           12.5:1

Fuel Type:                 Natural Gas

Emission:                  China State 3/ EU Stage 3A



Displacement:              53L

Bore/Stroke:               150/185mm

Electric system:             DC24V

Outline Dimension:     2609×1542×1746mm

Dry weight:                   5125kg

Prime Power:                 1280kW

Standby Power:               1280kW

Rated NG Fuel Consumption:     330 m3/h

Speed in Stability:             <5%

Lubrication System

Oil filter control method:     Full flow type

Total Oil Capacity:           180L

Oil Type:                  CF15W/40

 Gas System

Recommended  Gas:  Pipeline gas or natural gas (Methane content≥70%, MN≥80, sulfur content ≤20 mg/m3)

Gas intake pressure:              10~20 kPa

Air System

Air Filter Type:                        Dry-type

Max. Air Intake Restriction:              ≤6 kPa

Recommended air filter mass flow:       6000 kg/h

Exhaust System

Silencer type :                 horizontal

Silencer Noise Reduction Level:   15 dB(A)

Exhaust Gas Temperature °C:       ≤650

Cooling System

Coolant Capacity:             350L



Water pump type:           Centrifugal



Alternator Technical Data

Physical Data

Manufacturer:              Leroy-somer

Model:                    LSA 50.2 M6

NO. of bearing:                   1

Insulation Class:                  H

Steady Voltage Regulation:      ≤±2.5%



Ingress Protection Rating:      IP23

Winding Pitch-code:           2/3

Wire:                       12

Excitation:                Brushless

Rated Power Factor:            0.8




Control Module Specifications

The DSE7320 is an Auto Mains Failure Control Module

♦ Back-lit LCD display

♦ 3 Phase generator and 3 Phase Mains monitoring

♦ Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level

♦ Display warning, shutdown and engine status information

♦ Hours counter provides accurate information for monitoring and maintenance




Gen-set Dimensions & Weights



 LengthWidthHeightWeight
B-Series5196 mm2250 mm2616 mm11000 kg
C-Series20’ container15000 kg




Remarks

Prime Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

Standby Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous tested (as defined in ISO 8528‐3).
