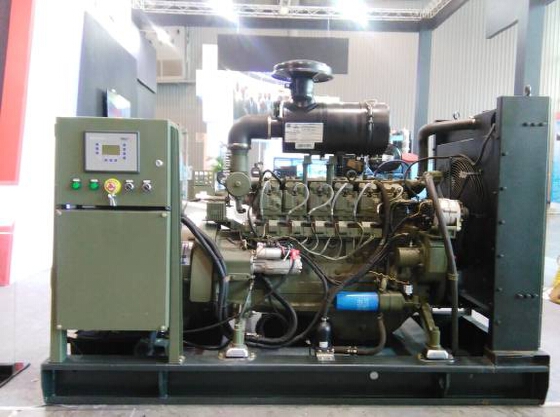

WEICHAI WPG120B96NG Series 60Hz/120KWe Gas Generator Set
WEICHAI WPG120B96NG Series 60Hz/120KWe Gas Generator Set

WEICHAI WPG120B96NG Series 60Hz/120KWe Gas Generator Set

Score
Sold: 0 Question And Answer 0

MOQ: 1 PCS

Note: If you have any questions,please contact us

  • High reliability, low emissions, low noise
  • Have kinds of domestic product certification and CE certification
  • By using electronic control technology, the emission meets the national emission standard III
  • WPG120B96NG
Weichai Power Co., Ltd.

Weichai Power Co., Ltd.

Since:

1946

You May Also Like

Product Detail Parameters

Model WPG120B96NG Frequency 60Hz
Standby Rating kVA 150 Standby Rating KWe 120
Prime Rating kVA 125 Prime Rating KWe 100
Engine Model WP6D132E301NG

International Standard Number

WPG120B96NG

Product Description



120KWe GAS gen-set data sheet


Gen-set Specification
ModelWPG120B96NG
Prime100kWe/ 125kVA
Standby120kWe/ 150kVA
Voltage/ Frequency480V/ 60Hz
Power Factor0.8- 3 Phases
EmissionChina State 3/ EU Stage 3A
Noise level  dB(A)

B Series: ≤102

L Series: ≤75 @7m



Standard Configurations
♦ Proven ECM and gas intake system♦ IP23♦ DeepSea 6020 Controller
♦ DC24 electric starter& alternator♦ H type insulation♦ Legrand Circuit Breaker
 Puller type fan with Radiator♦ Air filter& muffler♦ NG Shutoff valve
 Maintenance-Free batteries w/ wires♦Battery Charger♦Oil Drain Valve
Forklift Groove Skid with Shock Absorber
Options
² Automatic Main Failure (AMF)² paralleling system panel² Sound Proof Enclosure
² Automatic Transfer Switch (ATS)² Telematics kit² Trailer type station
² Jacket water &oil heater kit² LPG vapor kit² Spare Parts/ Special tool
² H2S Purification System Packing² CHP System Packing



Engine Technical Data

Base Data

Model:                  WP6D132E301NG

NO. of Cylinders:               6

Type:                    In-Line ,4 Stroke

Aspiration:                  TA

Cooling Method:             Water

Governing Type:             ECM control

Compression ratio:           11.5:1

Fuel Type:                 Natural Gas

Emission:                  China State 3/ EU Stage 3A



Displacement:              6.7L

Bore/Stroke:               105/130mm

Electric system:             DC24V

Outline Dimension:     1456×814×1053mm

Dry weight:                  620kg

Prime Power:                 120kW

Standby Power:               132kW

Rated NG Fuel Consumption:     33m3/h

Speed in Stability:             <5%

Lubrication System

Oil filter control method:     Full flow type

Total Oil Capacity:           10L

Oil Type:                  CF15W/40

 Gas System

Recommended  Gas:  Pipeline gas or natural gas (methane≥70%, sulfur content ≤20 mg/m3)

Gas pressure:               3~7 kPa

Air System

Air Filter Type:                        Dry-type

Max. Air Intake Restriction:              ≤6 kPa

Recommended air filter mass flow:       700 kg/h

Exhaust System

Silencer type :                 horizontal

Silencer Noise Reduction Level:   15 dB(A)

Exhaust Gas Temperature °C:       ≤650

Cooling System

Coolant Capacity:             28L



Water pump type:           Centrifugal



Alternator Technical Data

Physical Data

Manufacturer:             Stamford/ Leroy-somer

Model:                    UC274D/LSA 44.3 M6

NO. of bearing:                   1

Insulation Class:                  H

Steady Voltage Regulation:      ≤±2.5%



Ingress Protection Rating:      IP23

Winding Pitch-code:           2/3

Wire:                       12

Excitation:                Brushless

Rated Power Factor:            0.8



Control Module Specifications

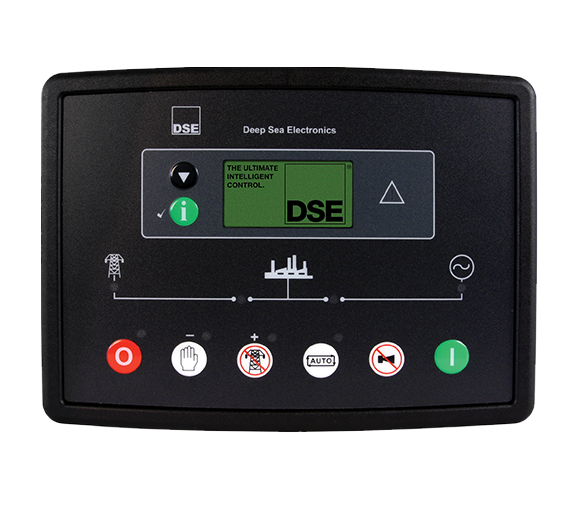

The DSE6020 is an Auto Mains Failure Control Module

♦ Back-lit LCD display

♦ 3 Phase generator and 3 Phase Mains monitoring

♦ Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level

♦ Display warning, shutdown and engine status information

♦ Hours counter provides accurate information for monitoring and maintenance




Gen-set Dimensions & Weights



 LengthWidthHeightWeight
B-Series2500 mm960 mm1600 mm1550 kg
L-Series3200 mm1100 mm1850 mm2040 kg




Remarks


Prime Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

Standby Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous tested (as defined in ISO 8528‐3).
