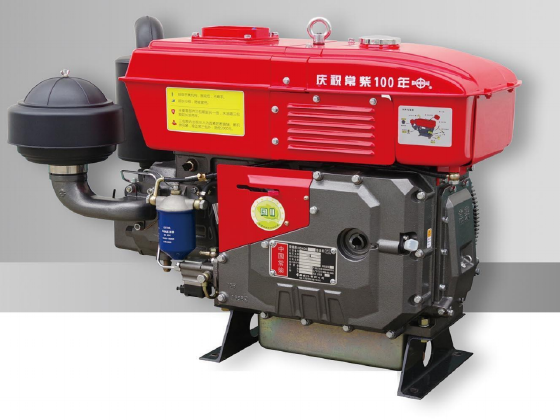

Single Cylinder Diesel Engine With EUP
MOQ: 2 PCS
Note: If you have any questions,please contact us
- 1.Low fuel consumption: With EPU and P-type injector
- 2.Low vibration noise: The diesel engine operates stably and the vibration is small.
- 3.High reliability:Optimize the structural strength of components and improve the reliability.
- 4.Good interchangeability:Installation dimensions and overall dimensions are the same as the original ZS and L series
- ZR190
- L12
- H14
- H16
- ZS1100
- ZS1105
- EH20
- ZS1110
- ZS1115
- EH24
- L28
- L32
- EH36
- HS400
Changchai Co., Ltd
Since:
1913
Product Description
.png)
Specifications of Diesel Single cylinder Engine (open frame without enclosure)
| Model Item | ZR190 | L12 | H14 | H16 | ZS1100 | ZS1105 | EH20 | ZS1110 | ZS1115 | EH24 | L28 | L32 | EH36 | HS400 | |
| Engine Type | Single cylinder inline ,Evaporating water cooled, 4-Stroke | ||||||||||||||
| Combustion chamber | Direct Injection | ||||||||||||||
| Bore(mm) | 90 | 95 | 100 | 105 | 110 | 115 | 125 | 130 | 135 | ||||||
| Stoke(mm) | 90 | 95 | 98 | 100 | 115 | 120 | 115 | 120 | 125 | 145 | |||||
| Displacement(L) | 0.573 | 0.604 | 0.694 | 0.785 | 0.903 | 0.996 | 1.093 | 1.093 | 1.194 | 1.246 | 1.473 | 1.659 | 1.789 | 2.076 | |
| Rated Power/speed (KW/r/min) | 7.4/2300 | 8/2400 | 9/2400 | 10.3/2400 | 12.1/2200 | 12.1/2200 | 13.2/2200 | 14.7/2200 | 15.5/2200 | 18/2200 | 20.6/2200 | 22.1/2200 | 25.8/2200 | ||
| Max.torque(r/min) | ≥34.4 | ≥35.7 | ≥40.1 | ≥45.9 | ≥58.8 | ≥61.7 | ≥64.2 | ≥71.5 | ≥75.4 | ≥87.5 | ≥100.2 | ≥107.4 | ≥125.4 | ||
| Speed at Max.torque(r/min) | ≤1800 | ≤1320 | ≤1600 | ||||||||||||
| Fuel consumption | ≤245 | ≤235 | ≤240 | ||||||||||||
| Idle speed(r/min) | ≤800 | ||||||||||||||
| Starting system | Hand cranking or Electrical starter | Electrical starter | |||||||||||||
| Fuel System | EUP | ||||||||||||||
| Net Weight (Kg) | Hand cranking | 100 | 96 | 102 | 112 | 155 | 150 | 180 | 208 | 212 | / | / | |||
| Electrical starter | 105 | 101 | 110 | 120 | 165 | 160 | 190 | 220 | 224 | 265 | |||||
| Dimensions [LXWXH](mm) | Hand cranking | 670x381x560 | 655x381x570 | 730x390x570 | 871x402x645 | 836x410x664 | 875x450x720 | 916x470x782 | / | / | |||||
| Electrical starter | 760x381x560 | 735x381x570 | 800x390x570 | 918x402x645 | 934x410x664 | 940x450x720 | 978x470x782 | 1085x540x805 | |||||||
Main technical features of Single cylinder diesel engine with EUP
1. Low fuel consumption: With EPU and P-type injector, it realizes accurate control of fuel injection and injection period.
2. Low emissions: the data of rotational speed sensor, water temperature sensor, oil pressure sensor will input into the ECU and ECU will control EUP’s fuel supply unit, and then effectively reduce fuel consumption and emissions to improve fuel economy.
3. Low vibration noise: The diesel engine operates stably and the vibration is small. The former mechanical speed control system is replaced by electric one so that the noise is low.
4. High reliability: Optimize the structural strength of components and improve the reliability.
5. Good interchangeability: Installation dimensions and overall dimensions are the same as the original ZS and L series, so it is easy for users to upgrade.
6. Independent research and development of control systems and electronic control unit make Changchai has complete intellectual property rights.
