ZS Series Single Cylinder Diesel Engine
MOQ: 10 PCS
Note: If you have any questions,please contact us
- 1. Diesel 4 stroke engine , light weight and smart size
- 2. Single cylinder diesel engine widely used in walking tractor,transportation vehicles water pump sets,construction machinery generator sets
Changchai Co., Ltd
Since:
1913
Product Description
Specifications of S/ZS Series-Single Cylinder Diesel Engine
| Item Model | S195 | ZS195 | S1100A2 | ZS1100 | ZL1100 | ZS1105 | ZS1110 | ZS1110A | ZS1115 | ZS1115A |
| Engine Type | Swirl | Direct Injection | Swirl | Direct Injection | ||||||
| Combustion Chamber | Single Cylinder, Horizontal, Evaporating Water Cooled, 4-Stroke | |||||||||
| Bore (mm) | 95 | 100 | 105 | 110 | 115 | |||||
| Stroke (mm) | 115 | 120 | 115 | |||||||
| Displacement (L) | 0.815 | 0.903 | 0.942 | 0.996 | 1.093 | 1.194 | ||||
| Rated Power/Speed (kW/r/min) | 10.6/2200 | 12.1/2200 | 12.7/2200 | 13.2/2200 | 14.7/2200 | 16.2/2200 | ||||
| Max Torque (N.m) | ≥51.6 | ≥58.8 | ≥61.7 | ≥64 | ≥71.5 | ≥78.8 | ||||
| Speed at Max.Torque (r/min) | ≤1760 | |||||||||
Specific Fuel Fonsumption at The Rated Condition (g/kW.h) | ≤258.4 | ≤244.8 | ≤257 | ≤246.2 | ≤244.8 | |||||
| Idle Speed (r/min) | ≤800 | |||||||||
| Starting System | Hand Cranking or Electrical Starter | |||||||||
| Net Weight (Kg) | 145 | 155 | 180 | 185 | ||||||
| Overall Dimensions [LxWxH](mm) | 814x480x618 | 821x410x671 | 851x406x651 | 858x450x699 | ||||||
Application:
Widely used in walking tractor,transportation vehicles water pump sets,irrigation equipment,construction machinery generator sets,as well as small engineering machinery, and so on.

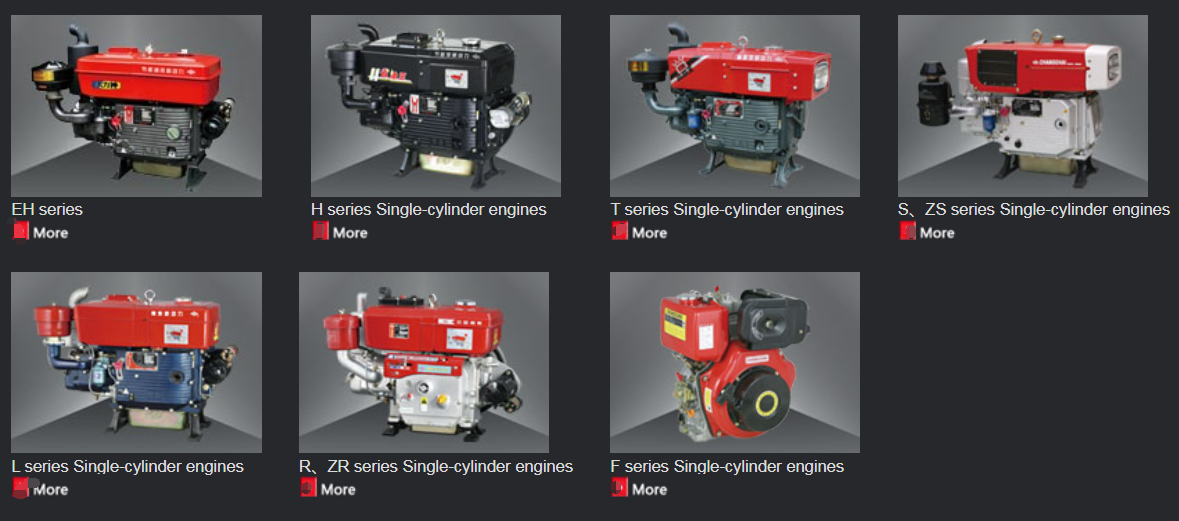

“The “Changchai” brand single-diesel engines have 10 series including H、T、S、ZS、L、R、F、SQD、D and HD, with the power ranging from 1.7KW to 24KW .the engines can be widely used for handheld and small four-wheel tractor, engineering machinery, three-wheel vehicle, generator set, water pump, air compressors, gardening machines , the processing of agricultural and side-line products and the like.
