T Series Single Cylinder Diesel Engine
MOQ: 2 PCS
Note: If you have any questions,please contact us
- 1.T series engines has greatly improved its economy by optimizing its fuel system and rational inside-cylinder combustion.
- 2.With nit-riding gears,the product reliability is greatly improved.
- 3.Diesel engine With high quality rolling bearing,the load-carrying capability has been improved.
Changchai Co., Ltd
Since:
1913
Product Description
.png)
Specifications of T Series-Single Cylinder Diesel Engine
| Model Item | T20 | T25 | T35 |
| Engine Type | Single Cylinder, Horizontal, Evaporating Water Cooled, 4-Stroke | ||
| Combustion Chamber | Direct Injection | ||
| Bore (mm) | 105 | 115 | 130 |
| Stroke (mm) | 120 | 125 | |
| Displacement (L) | 1.039 | 1.246 | 1.659 |
| Rated Power/Speed (kW/r/min) | 14.7/2300 | 18/2300 | 24/2300 |
| Max Torque (N.m) | ≥68.4 | ≥83.7 | ≥111.6 |
| Speed at Max.Torque (r/min) | ≤1840 | ||
| Specific Fuel Fonsumption at The Rated Condition (g/kW.h) | ≤244.8 | ||
| Idle Speed (r/min) | ≤800 | ||
| Starting System | Hand Cranking or Electrical Starter | ||
| Net Weight (Kg) | 150 | 185 | 208 |
| Overall Dimensions [LXWXH](mm) | 836X410X664 | 858X450X699 | 916X475X709 |

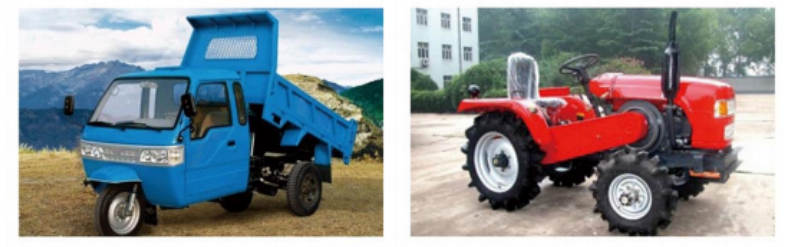

Compared with ZS and L series,T series 4 stroke engine has much higher speed and stronger power,especially suitable for tractor and three-wheel vehicles.
