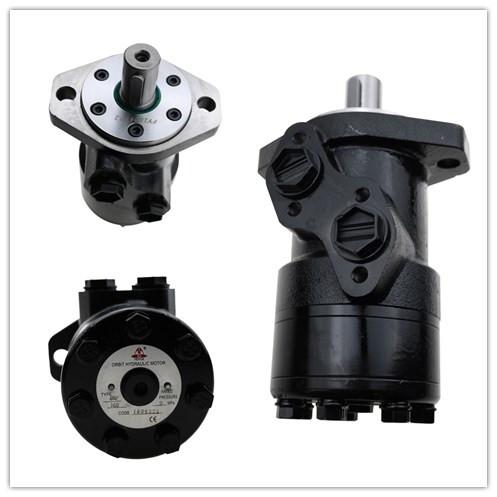

Hydraulic Motor BMR OMR 315CCM for Danfoss 151F-0500
Hydraulic Motor BMR OMR 315CCM for Danfoss 151F-0500
Hydraulic Motor BMR OMR 315CCM for Danfoss 151F-0500
Hydraulic Motor BMR OMR 315CCM for Danfoss 151F-0500
Hydraulic Motor BMR OMR 315CCM for Danfoss 151F-0500

Hydraulic Motor BMR OMR 315CCM for Danfoss 151F-0500

Score
Sold: 0 Question And Answer 0

MOQ: 100 PCS

Note: If you have any questions,please contact us

  • 1. Compact design, which provide small volume,high power and low weight.
  • 2. Credible design,for shaft seal,which can bear high pressure and be used in parallel or in series.
  • 3. Direction of shaft rotation and speed can be controlled easily and smoothly.
  • 4. Best combination of efficiency and economy in medium load applications
  • 5. Advanced manufacturing devices for the Gerotor gear set, high efficiency and long life.
  • 315CCM
XINGTAI FEIYUE HYDRAULIC PARTS FACTORY

XINGTAI FEIYUE HYDRAULIC PARTS FACTORY

Since:

1985

You May Also Like

Product Detail Parameters

Product NO BMR/OMR Displacement(CCM) 315
Mounting Flange(MM) 82.5 Shaft(MM) 25
Port Size G1/2 Drain Port G1/4
Shaft end thread M8 Mounting holes 2
Oil Port shape S Parallel key width(MM) 8

International Standard Number

151F-0500, 151F-0522, 151F-2206, 151F-2242, 151F-2305, 151F-2327, 151F-2354,151F-0501, 151F-0523, 151F-2207, 151F-2243, 151F-2306, 151F-2328, 151F-2355,151F-0502, 151F-0524, 151F-2208, 151F-2244, 151F-2307, 151F-2329, 151F-2356,151F-0503, 151F-0525, 151F-2209, 151F-2245, 151F-2308, 151F-2330, 151F-2357,151F-0504, 151F-0526, 151F-2210, 151F-2246, 151F-2309, 151F-2331, 151F-2358.,

Product Description



Replacement for Danfoss OMR series Hydraulic Motor      50/63/80/100/160/200/315/400cc,2-Bolt Mounting Flange ,G1/2 NPT Ports

1.Double needle bearing can bear higher radial force,with more Concentricity that can help smooth running under the high speed condition;

2. High quality oil seal lead to longer service life;

3.Shaft seal can bear high pressure of back and the motot can be used in parallel or in series;

4.Special design in the driver-linker and prolong operating life;

5. Special design for distribution system can meet the requirement of low noise of unit;

6.Integration of efficiency and economy to environment-friendly; Compact volume and easy installation;

Product list :fei yue catalogue 2021




BMP Main Specification





TYPEBM1BM1BM1BM1BM1BM1BM1BM1BM1BM1
OMROMROMROMROMROMROMROMROMROMR
Displacement(ml/r)506380100125160200250315400

Flow

(LPM)

Continuous45456060606060606060
Intermittent50507575757575757575

Speed

(RPM)

Continuous879720740589475370296237189149
Intermittent975755827673594463370297236185

Pressure

(MPA)

Continuous12.512.512.512.512.512.511111110
Intermittent16.516.516.516.516.516.516.51412.510.5

Torque

(N*.m)

Continuous81101129161202245286360406435
Intermittent108134171213268342390456505533

1. Continuous pressure:Max.value of operating motor continuously.

2.Intermittent pressure:Max.value of operating motor in 6 seconds per minute .

3.Peak pressure:Max.value of operating motor in 0.6 second per minute.

4.The optimum operating situation should be at the 1/3-2/3 of the continuous operating situation.




Replace DANFOSS No

151F-0500151F-0522151F-2206151F-2242151F-2305151F-2327151F-2354
151F-0501151F-0523151F-2207151F-2243151F-2306151F-2328151F-2355
151F-0502151F-0524151F-2208151F-2244151F-2307151F-2329151F-2356
151F-0503151F-0525151F-2209151F-2245151F-2308151F-2330151F-2357
151F-0504151F-0526151F-2210151F-2246151F-2309151F-2331151F-2358





Replace Eaton/Char-Lynn

104-1001104-1032104-1066104-1198104-1376104-1421105-1060
104-1002104-1033104-1067104-1199104-1377104-1422105-1071
104-1003104-1034104-1068104-1200104-1378104-1423105-1072
104-1004104-1035104-1087104-1201104-1379105-1001105-1073
104-1005104-1037104-1088104-1202104-1380105-1002105-1074



Replace M+S Hydraulic

MS 80MS 100MS 125MS 160MS 200MS 250MS 315MS 400MS 475
MSS 80MSS 100MSS 125MSS 160MSS 200MSS 250MSS 315MSS 400MSS 475
MLHS 80MLHS 100MLHS 125MLHS 160MLHS 200MLHS 250MLHS 315MLHS 400MLHS 475
MLHSS 80MLHSS 100MLHSS 125MLHSS 160MLHSS 200MLHSS 250MLHSS 315MLHSS 400MLHSS 475
MLHSW 80MLHSW 100MLHSW 125MLHSW 160MLHSW 200MLHSW 250MLHSW 315MLHSW 400MLHSW 475




Hydraulic motor spare part and production line:



1.Hydraulic motor body BEFORE processing.

Hydraulic motor body BEFORE processing.jpg



2.Picture of shell processing equipment.


3.Hydraulic motor body AFTER processing.



Hydraulic motor body.jpg





1. Hydraulic motor inside contact Shaft BEFORE Processing

  Hydraulic motor inside contact Shaft .jpg



2. Equipment for processing internal contact shafts






3.Hydraulic motor inside contact shaft AFTER processing.


Hydraulic motor inside contact shaft.jpg








1.Hydraulic motor drlve shaft BEFORE processing.

Hydraulic motor drlve shaft.jpg



2.Hydraulic motor drlve shaft processing machine

Hydraulic motor drlve shaft.jpg

3. Hydraulic motor drlve shaft AFTER processing.




 Hydraulic motor drlve shaft AFTER.jpg




1.Hydraulic motor stator BEFORE processing

Hydraulic motor stator BEFORE processing.jpg



2.Hydraulic motor stator processing machine

 Hydraulic motor stator BEFORE processing.jpg

 3.Hydraulic motor stator AFTER processing

Hydraulic motor stator AFTER processing.jpg

 Outgoing pictures and product certification
