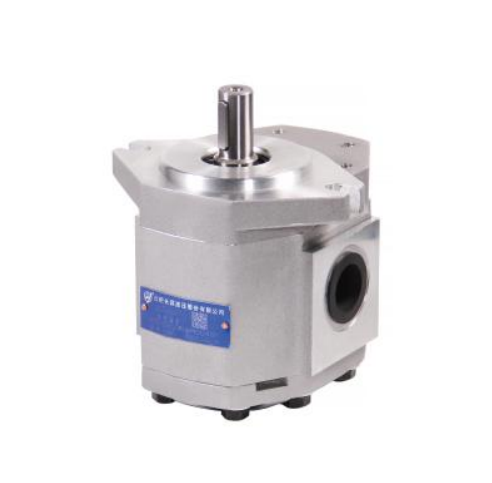

Gear Type Hydraulic Pump Gear Pump CBF-F6

Gear Type Hydraulic Pump Gear Pump CBF-F6

Score
Sold: 0 Question And Answer 0

MOQ: 100 PCS

Note: If you have any questions,please contact us

  • 1. Using high-strength aluminum alloy material, light weight, easy to install
  • 2. Axial clearance automatic compensation mechanism, radial hydraulic balance, maintain the high volumetric efficiency of the oil pump
  • 3. Use self-lubricating bearings to improve the load capacity of the pump
  • 4. The connection forms of the inlet and outlet ports are available with thread, flange, etc.
  • 5. Input shaft connection form can choose flat key, rectangular spline, involute spline
  • CBF-F6
Hefei Changyuan Hydraulic Co., Ltd

Hefei Changyuan Hydraulic Co., Ltd

Since:

1966

You May Also Like

Product Description

Gear Pump CBF-F6







Gear Pump CBF-F6 Outline Dimension



GEAR PUMP .png



Specification(Roation: Right)




ModelNominal displacement (mL/r)Pressure
(MPa)
Speed
(r/min)

Volumetric

efficiency

L1LAB1B2B3Inletoulet

Weight

(kg)

RatedMax.Min.RatedMax.abtDabtD
CBF-F650-AF**502025500200025009280.516580-0.08781602003060M10322652M8259.5
CBF-F663-AF**6383.8171.510.1
CBF-F671-AF**7185.8175.536363640M102810.5
CBF-F680-AF**808818011.0
CBF-F690-AF**9090.5185403211.5
CBF-F6100-AF**10094.8190127-0.106.318021512.0




Hydraulic gear pumps(motors) order code



GEAR PUMP .png




①Product code

② Pressure grade  A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa   Some models can be omitted

③ Number of tooth 2 3 4 5 6(ome models can be omitted)

④Nominal displacement(mL/r)

⑤Mounting A  Oval B  Square C  Rectangle T   Special

⑥Joining port L Screw F Flange  Special

⑦Shaft end P  Plain Key H  Rectangle spline Z  Taper shaft woodruff X  lnvolute spline φSAE  SAE spline B  Flat endT  Special shaft end

⑧Rotation L  Left R  Right  S bi-direction

⑨Pressure grade2 3 4

⑩ Solenoid valve function  O  normal open   C  normal close(Omited)
