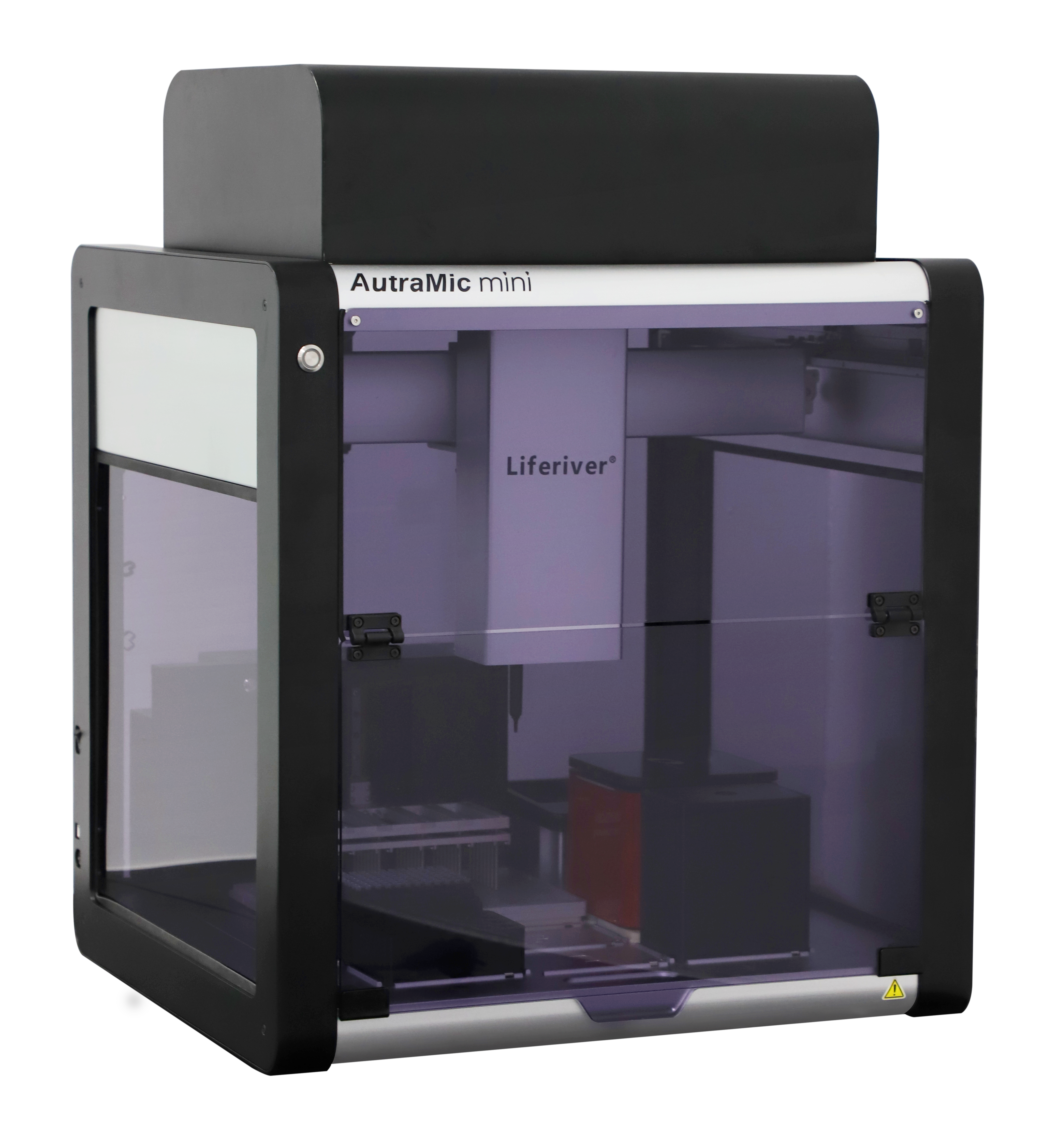

Autra Mic Mini Full Automated Nucleic Acid Test Solution
MOQ: 1 Set
Note: If you have any questions,please contact us
- 1.Automated detection:fully automated process and all-in-one design; Direct sample to result
- 2.Quick Turnaround: Nucleic acid extraction within 10 minutes per run
- 3.Nucleic acid extraction plus PCR test within 1 hour per run with 48 specimens for certain test protocol
- 4.Integrated Solution; Closed system for higher bio-safety during operation
- 5.Dual UV and HEPA systems for effective prevention of cross contamination
- Autra mini
Shanghai ZJ Bio-Tech Co., Ltd
Since:
2005
Product Description
Performance
1. Precision
Repeated extraction and detection results of the same specimen for 20 times (concentration:300 copies/mL)
2.Linearity
Extraction and detection results of the same specimen of different concentrations(concentrations:E7/E6/E5/E4/E3 copies/mL)
Technical Specifications
| Parameters | specifications |
| Model | |
| Function | Fully automated nucleic acid extraction and PCR amplification test |
| throughput | 1~48 specimens |
| running time | 45-96 min/run |
| extraction Method | Magnetic beads |
| Pipetting channel | 1 |
| pipetting accuracy | 1μ|(%℃∨:±5%),10μ(%C∨±1%),20μ(%C∨:±0.8%) |
| detection module parameters | Fluorescence channels≥4 ;lndependent LED excited light source;Heating;4℃/s,Cooling:3℃/s,Temperature control accuracy:≤±0.25℃ |
| Dimensions(L*w*h) | 630mm×570mm×850mm |
| Weight | 45kg |
| Power | AC100V~240V(±10%);50~60Hz |
| Power consumption | 421VA |
| Environmental conditions | Temperature:15-32℃ Humidity:30-80% |
Compatible Consumables
| Cat | Product | Specifications |
| ME-0089-120/480 | Viral RAN Isolation kit(for Auto-Extraction) | 120/480 reactions/kit |
| OCH0432 | MIC Tubes and Caps | 960 tubes/box |
| OCH0411 | Compatible Pipettor | 96 tips/rack, 10 rack/set |
| OCH0412 | 0.5ml screw cap microtubes | 50 tubes/bag |
