XSFA Series Speed Limit Valve
MOQ: 100 PCS
Note: If you have any questions,please contact us
- XSFA series speed-limiting valve has compact structure and reliable work. It is widely used in the hydraulic system of forklift mast lowering. It can limit the lowering speed of the mast and ensure the smooth operation of the hydraulic system.
- XSFA
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description

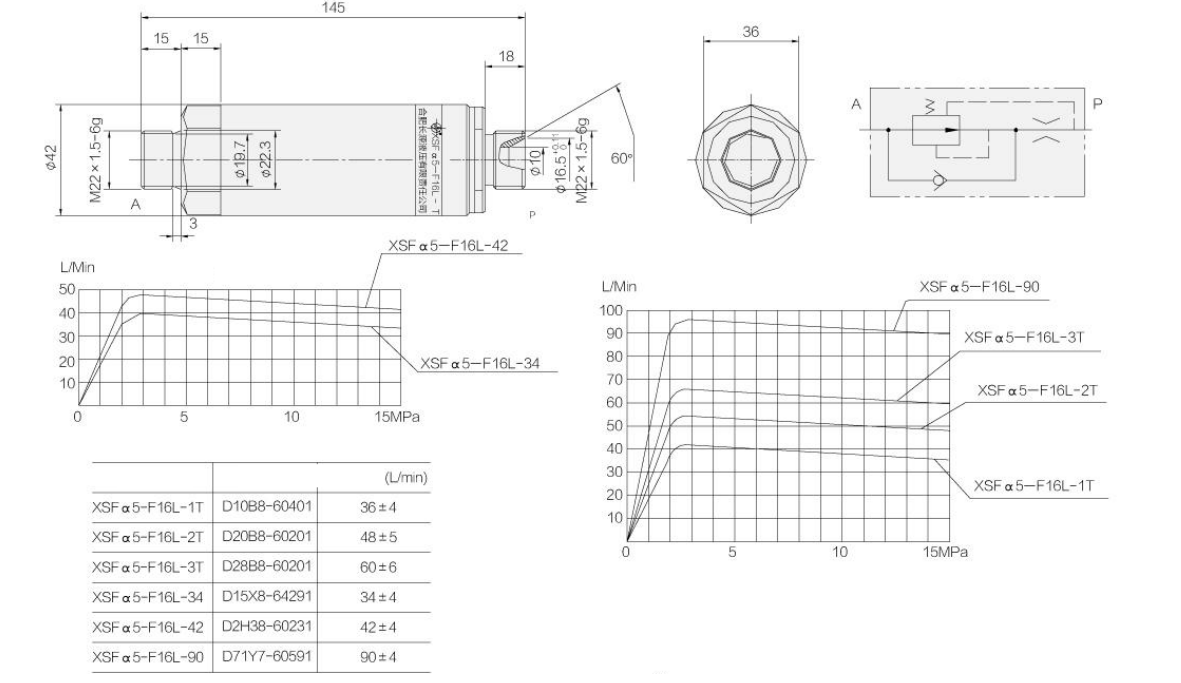

Outline Dimension
Hydraulic valves order code
① Product code
② Design code
③ Pressure grade E:16MPa F:20MPa G:25MPa H:31.5MPa
④ Nominal displacement(L/min)10 15 20 25L/min
⑤ Joining port L
⑥ Spool returning T spring W ball U hydraulic control SD Manual+Electric hydraulic control
⑦ Block No 1 spool function
⑧ A(A port with overload valve) a( A port with oil filing valve)
⑨ B: B port with overload valve b:B port with oil filing valve
⑩ Block No.1 spool function
⑪ With pressure outlet,Omit:Without pressure outlet
⑫ Solenoid valve controls voltage 24V 12V
⑬ New type front cover structure
⑭ speed limit flow rate
