YCDC*-20 Series Multi-way Reversing Valve
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.Built-in priority valve: The inlet body part has a priority valve, which gives priority to the flow of the steering system, and does not provide the steering flow when it is not turning.
- 2.Descent protection solenoid valve: only after opening this solenoid valve, the operation of controlling the descent is effective
- 3.Unloading solenoid valve: Only when the solenoid valve is opened, the mast is lifted, tilted, and the attachment operation is the effective date.
- 4.Built-in check valve: each reversing body has a built-in check valve to prevent the oil from flowing back
- 5.Set the valve stem self-locking: prevent the forklift mast from vibration caused by the negative pressure inside the tilt cylinder
- 6.Set up dual safety valves: the main safety valve controls the system pressure, and the shunt safety valve ensures the normal working pressure of the steering system
- 7.Additional valve: at both ends of the reversing body, an overload valve or a supplement valve can be added as needed
- 8.Valve body structure: chip structure, any combination within 1~10 groups
- YCDC*-20
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
Outline Dimension
Specification
| (Mpa）Nominal pressure | 20 |
| (L/min) Nominal flow rate | 160 |
| Spool stroke(mm) | 8+8 |
| Weight(kg) | 8.7+6.3n(n Is the number of commutation bodies） |
Hydraulic valves order code
① Product code
② Design code
③ Pressure grade E:16MPa F:20MPa G:25MPa H:31.5MPa
④ Nominal displacement(L/min)10 15 20 25L/min
⑤ Joining port L
⑥ Spool returning T spring W ball U hydraulic control SD Manual+Electric hydraulic control
⑦ Block No 1 spool function
⑧ A(A port with overload valve) a( A port with oil filing valve)
⑨ B: B port with overload valve b:B port with oil filing valve
⑩ Block No.1 spool function
⑪ With pressure outlet,Omit:Without pressure outlet
⑫ Solenoid valve controls voltage 24V 12V
⑬ New type front cover structure
⑭ speed limit flow rate

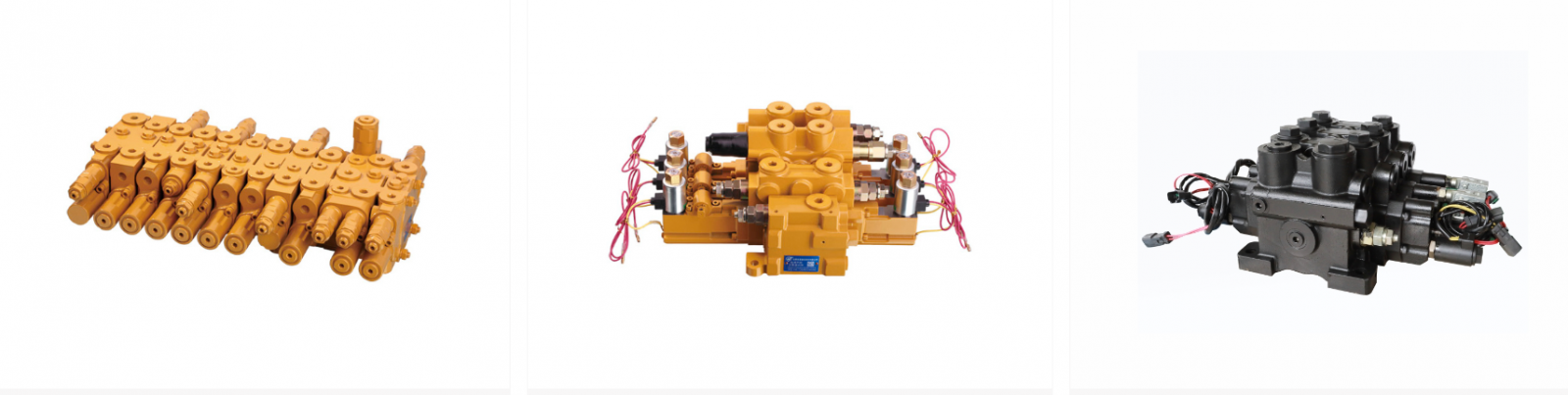

HCHC Multi-way Reversing Valve
