WEICHAI Genset WPG1300 Series 60Hz/1300KW Diesel Generator Set
WEICHAI Genset WPG1300 Series 60Hz/1300KW Diesel Generator Set
WEICHAI Genset WPG1300 Series 60Hz/1300KW Diesel Generator Set

WEICHAI Genset WPG1300 Series 60Hz/1300KW Diesel Generator Set

Score
Sold: 0 Question And Answer 0

MOQ: 1 PCS

Note: If you have any questions,please contact us

  • High reliability, low emissions, low noise
  • Have kinds of domestic product certification and CE certification
  • By using electronic control technology, the emission meets the national emission standard III
  • WPG1300-76
Weichai Power Co., Ltd.

Weichai Power Co., Ltd.

Since:

1946

You May Also Like

Product Detail Parameters

Model WPG1300 Frequency 60Hz
Standby Rating kVA 1625 Standby Rating KW 1300
Prime Rating kVA / Prime Rating KW /
Engine Model 12M33D1420E201

International Standard Number

WPG1300-76

Product Description

Land Based Genset- WPG1300 Series




Gen-Set Specifications



Genset Model WPG1300*76
Power Factor0.8-3 phase, 1.0-single phase
FrequencyStandby RatingPrime Rating
 kVAkWkVAkW
60Hz16251300//
B-SeriesStandard≤102 dB(A)

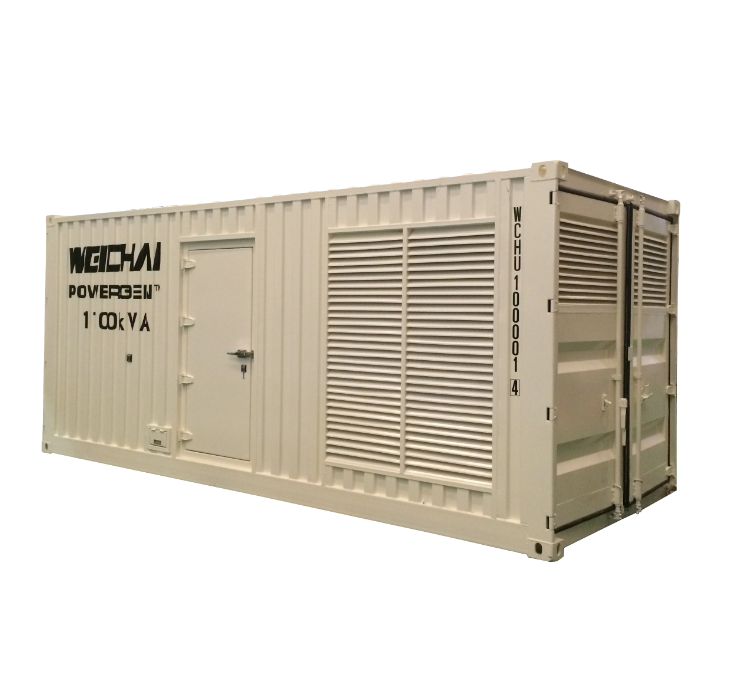

C-SeriesWith Container ≤89dB(A)@7m




Standard Features



♦ Electronic governor♦DC24 Electric starter♦ Deep-sea 7320
♦ Closed water-cooled♦ IP23♦H type insulation
 Air filter, muffler ♦ Circuit Breaker
♦Starting batteries( maintenance-Free) with connective wires♦Battery Charger
♦Oil Drain Valve♦Forklift Groove♦Shock Absorber
♦Color: Weichai blue (B)              ♦Documents♦Spare Parts/ Special tool
♦Packaging: wooden packing case(B)



Options

◇Automatic Main Failure(AMF)◇Automatic Transfer Switch(ATS)◇paralleling system
◇External fuel tank◇Engine Heater (water &oil heater)




Engine Specifications



Engine Make & ModelWeichai   12M33D1420E201
DesignV type, Turbocharged and intercooled
Rated Speed1800 rpm
Prime Power/
Standby Power1420kW
Bore & Stroke150x185mm
Displacement39.2L
Cylinder Number12V
Battery Capacity2X200A.h
Starting Method24V electric starter and battery charging alternator
Fuel systemDirect injection
Fuel consumption (l/hr)
Prime110% Load100% Load75% Load50% Load
/331300228159
Air Cleaner TypeDry replaceable element with restriction indicator
Lube Oil Filter TypeSpin on full flow filer
Volume of oil pan (L)146
Standard cooling system50℃ ambient radiator
Coolant capacity(L)196



Alternator Specifications



Alternator MakeStamford/Leroy-somer
Alternator ModelPI734A/LSA 50.2 L7
DesignBrushless single bearing, revolving field
Stator2/3 pitch
RotorSingle bearing, flexible disc
Exciter TypeSelf Excited
Insulation SystemClass H
Protection                                          IP23
Winding Way12
Voltage Regulation≤±1%



Control Module Specifications

The DSE7320 is an Auto Mains Failure Control Module

♦ Back-lit LCD display

♦ 3 Phase generator and 3 Phase Mains monitoring

♦ Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level

♦ Display warning, shutdown and engine status information



Dimensions



 LengthWidthHeightWeight
B-Series4676 mm2194 mm2410 mm8000 kg
C-Series20’ container11000 kg



Remarks



Prime Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

Standby Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous tested (as defined in ISO 8528‐3).

Standard Reference Conditions

Note: Standard reference conditions 25℃(77℉)Air Inlet Temp, 100m(328 ft) A.S.L. 30% relative humidity.

Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.
