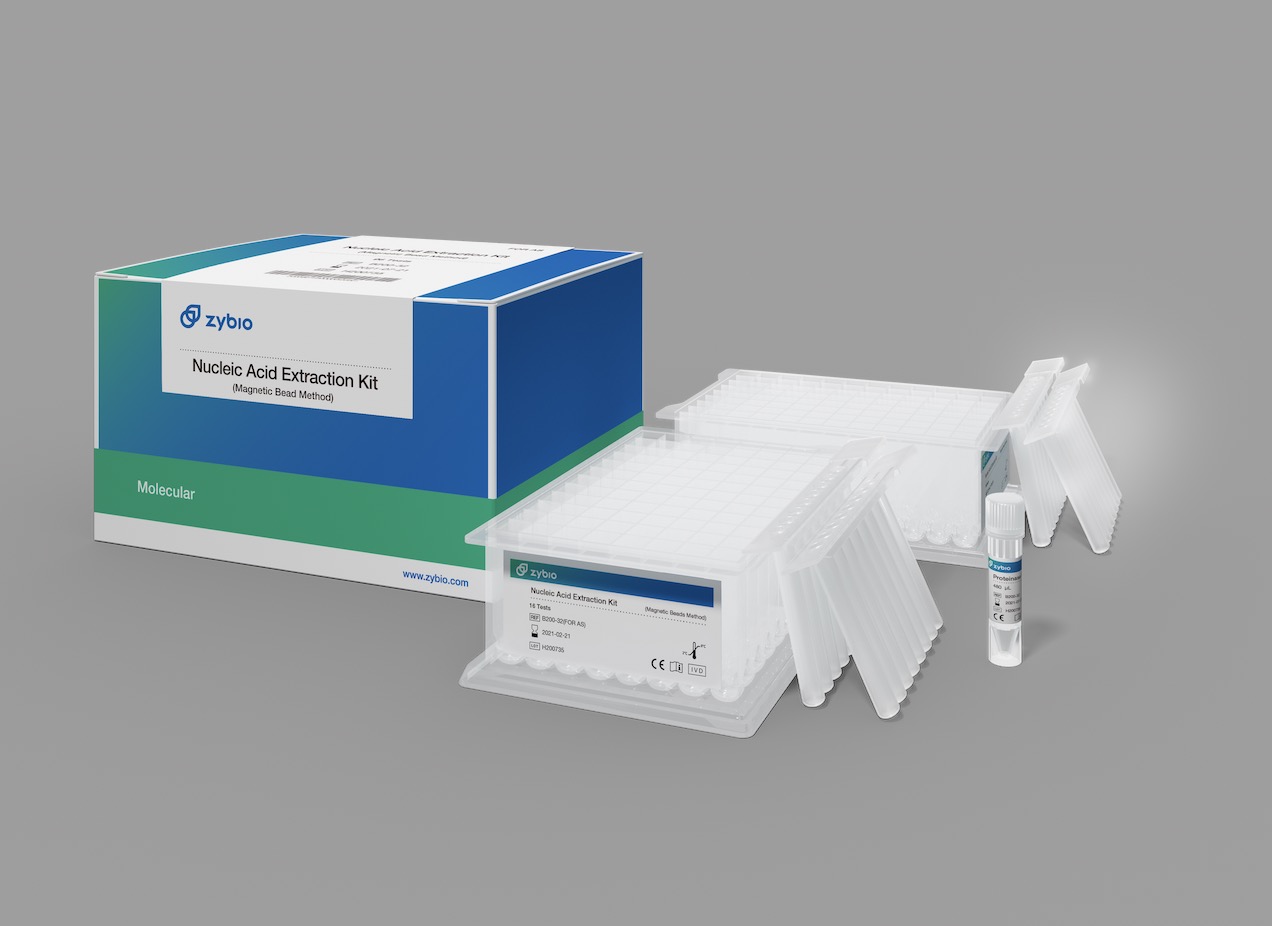

Nucleic Acid Extraction Kit

Manual operation(A-200)

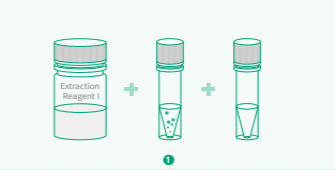

Pretreatment:500μL(Extraction Reagent I) + 4μL(Magnetic Beads Solution) + 15μL( Proteinase K), mix into [Working Solution].

Lysate:500μL [Working Solution] + 200μL sample, mix well, lyse at 55°C for 4 min, absorbed by magnetic separator for 1 min, and discard the

supernatant.

Rinsing: add 600μL [Isolation Reagent II], mix well, absorbed by magnetic separator for 1min, and discard the supernatant.

Elution:add 50~100μL [Elution Buffer], elute at 80°C for 2 min, absorbed by magnetic separator for 30s, reserve the supernatant.

Efficient isolation, reliable performance

Figure 3-1 Amplification Curve of HBV Reference Material (10 IU/mL) 200 μL 10 IU/mL diluted HBV reference material from WHO (NIBSC code: 10/264) was isolated by the kit to get 50 μL analyte. The analytewas detected by HBV diagnosis kit 10 times. Positive rate is 100%, as shown in Figure 3-1

Figure 3-2 Amplification Curve of HCV Reference Material (25 IU/mL)

200 μL 25 IU/mL diluted HCV reference material (5th WHO International Standard for HCV NAT, NIBSC code: 14/150) was isolated bythe kit to get 50 μL analyte. The analyte was detected by HBV diagnosis kit 10 times. Positive rate is 100%, as shown in Figure 3-2

The DNA Pseudoviridae with a concentration of 5×108IU/mLwas diluted with negative serum to 5×107IU/mL, 5×106IU/mL,5×105IU/mL, 5×104IU/mL, 5×103IU/mL, 5×102IU/mL and 50IU/mL .

They were determined after isolation. The results were shown in Figure 3-3

The RNA Pseudoviridae with a concentration of 5×107

IU/mL was diluted with negative serum to 5×106IU/mL, 5×105IU/mL, 5×104IU/mL,5×103IU/mL, 5×102IU/mL. They were determined after isolation. The results were shown in Figure 3-4

Flexible extraction method

Performance parameter

Sample Types: Liquid samples such as serum, plasma, nasopharyngeal swab, cell preservation solution, tissue fluid, urine and secretions.

Extraction Time: 9 - 12 min

Recovery: ≥ 90%

Repeatability: CV ≤ 2%

Subsequent Use: qPCR, hybridization

Specifications
