ISEKI JKB22C Paddy Field EPPO Machine
MOQ: 1 Piece
Note: If you have any questions,please contact us
- Ground clearance design.
- One machine for two purposes, plant protection and fertilizer spreading.
- Independent PTO.
- Large capacity medicine box equipped with self-priming pump.
- Safe cab with wiper, high safety performance.
- JKB22C
Dongfeng Iseki Agricultural Machinery Co., Ltd
Since:
2014
Product Description

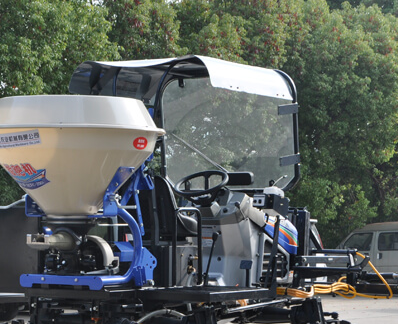

ISEKI JKB22C Paddy Field EPPO Machine
1-Ground clearance design
Ground clearance 1065mm.High ground clearance, four-wheel drive, four-wheel steering, reduce crops trampling and damage, crop damage is small, and the vehicle has a good passability.
2-High-quality plant protection performance
Imported ceramic nozzle, strong corrosion resistance, high-pressure spraying, good atomization effect, uniform and stable flow, large-angle spray, large coverage area, and small spray volume.
3-One machine for two purposes, plant protection and fertilizer spreading
4-Independent PTO
Equipped with an independent PTO to provide power for the fertilizer spreader, with stronger power and higher efficiency.
5-Large capacity medicine box equipped with self-priming pump
The large-capacity 500L medicine tank reduces the number of water additions and is equipped with a self-priming pump to save water addition time and improve work efficiency.
6-Safe cab with wiper, high safety performance
A simple cab is equipped as standard to reduce pesticide hazards and poisoning, and effectively protect the safety of the driver, with a wiper to ensure vision.
7-Easy to use
Operating buttons, switches, pressure adjustment handles, etc. are all near the operating seat for easy operation
8-Main technical parameters
| Product Model | JKB22C | |
| Machine Size | L(mm) | 4030 |
| W(mm) | 1940 | |
| H(mm) | 2755 | |
| Minimum ground clearance(mm) | 1065 | |
| Engine | Model | E3112-J06 |
| Power/Speed(kw/rpm) | 16.3/2600 | |
| Travel Section | Drive Way | 4-wheel drive |
| Spray Section | Spray Range(m) | 11.5 |
| Spray Box Capacity(L) | 500 | |
| Work efficiency(Mu/hour) | 30-55 | |
| Fertilizer Spreader Power mode | Powered by independent PTO of the body | |
| Fertilizer Spreader Model | CFC300 | |
| Fertilizer Tank Capacity(L) | 300 | |
| Working Width(m) | 12 | |
