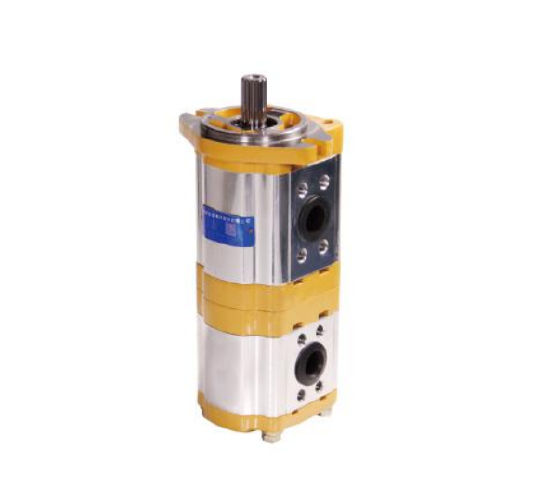

Hydraulic Part CBTL-4*-4* Double Gear Pump
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.Gear pump using high-strength aluminum alloy material, light weight, easy to install
- 2.Axial clearance automatic compensation mechanism, radial hydraulic balance, maintain the high volumetric efficiency of the oil pump
- 3.Double gear pump use self-lubricating bearings to improve the load capacity of the pump
- 4.The connection forms of the inlet and outlet ports are available with thread, flange, etc.
- 5.Input shaft connection form can choose flat key, rectangular spline, involute spline, SAE spline
- CBTL-4*/4*
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
CBTL-4*-4* Double Gear Pump Outline Dimension
CBTL-4*-4* Double Gear Pump Specification（Roation: Right）
| Model | Nominal displacement (mL/r) fore pump/hind pump | Pressure Fore pump/hind pump | Speed (r/min) | Volumetric Efficiency (≥%) | L1 | L2 | L3 | Inlet sidse | weight | ||||||||
| Force pump | Hind pump | ||||||||||||||||
| Rated | Max. | Min. | Rated | Max. | D | a | b | D | c | d | |||||||
| CBTL-F410/F410-A*** | 10/10 | 20 | 25
| 800 | 2500 | 3000 | 92 | 57 | 166 | 226.5 | 23 | 47.6 | 22.2 | 23 | 47.6 | 22.2 | 5.5 |
| CBTL-F416/F410-A*** | 16/10 | 60.3 | 172.5 | 233 | 5.8 | ||||||||||||
| CBTL-F416/F416-A*** | 16/16 | 175.8 | 239.5 | 6.1 | |||||||||||||
| CBTL-F420/F410-A*** | 20/10 | 62.5 | 177 | 237.5 | 26 | 52.4 | 26.2 | 6.0 | |||||||||
| CBTL-F420/F416-A*** | 20/16 | 180.3 | 244 | 6.3 | |||||||||||||
| CBTL-F420/F420-A*** | 20/20 | 16/16 | 16
| 600 | 182.5 | 248.5 | 26 | 52.4 | 26.2 | 6.5 | |||||||
| CBTL-F425/F410-A*** | 25/10 | 20/20 | 800 | 65.5 | 175.3 | 244 | 23
| 47.6 | 22.2 | 6.3 | |||||||
| CBTL-F425/F416-A*** | 25/16 | 16/16 | 183.6 | 250.5 | 6.5 | ||||||||||||
| CBTL-F425/F420-A*** | 25/20 | 600 | 188.6 | 255 | 26 | 52.4 | 26.2 | 6.7 | |||||||||
| CBTL-F430/F410-A*** | 30/10 | 800 | 67.8 | 187.6 | 248 | 23 | 47.6 | 22.2 | 6.5 | ||||||||
| CBTL-F430/F410-A*** | 30/10 | 67.8 | 193 | 254.5 | 6.7 | ||||||||||||
Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
