Hydraulic Gear Pumps CBKEC
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.Adopt asymmetrical double-modulus gears
- 2.High-strength wear-resistant cast iron material shell has strong bearing capacity
- 3.The oil inlet and outlet can be selected from back in and out, back in and side out, side in and side out, etc.
- 4.Axial clearance automatic compensation mechanism, so that the oil pump can maintain high volumetric efficiency for a long time
- 5.Input shaft connection form can choose flat key, rectangular spline, SAE involute spline
- 6.High working pressure and low noise
- CBKEC
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
Hydraulic Gear Pumps CBKEC Outline Dimension
Specification（Roation: Right）
| Model | Nominal displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volumetric efficiency | L1 | L | Inlet | Outlet | Weight (kg) | |||||||
| Rated | Max. | Min. | Rated | Max. | D | M | N | d | J | K | ||||||
| CBKEC-G23-AFφ* | 23 | 25 | 28 | 600 | 2500 | 3000 | 92 | 56.75 | 115 | 26 | 26.2 | 52.4 | 20 | 22.2 | 47.6 | 4.9 |
| CBKEC-G25-AFφ* | 25 | 57.75 | 117 | 5 | ||||||||||||
| CBKEC-G27-AFφ* | 27 | 58.75 | 119 | 5.2 | ||||||||||||
| CBKEC-G28.5-AFφ* | 28.2 | 59.25 | 120 | 5.3 | ||||||||||||
| CBKEC-G30-AFφ* | 30 | 60.25 | 122 | 5.4 | ||||||||||||
| CBKEC-G32-AFφ* | 32 | 61.25 | 124 | 32 | 30.2 | 58.7 | 26 | 26.2 | 52.4 | 5.5 | ||||||
| CBKEC-G36-AFφ* | 36 | 63.25 | 128 | 5.7 | ||||||||||||
| CBKEC-G40-AFφ* | 40 | 66 | 133.5 | 6.1 | ||||||||||||
| CBKEC-F44-AFφ* | 44 | 20 | 25 | 67.25 | 136 | 6.3 | ||||||||||
| CBKEC-F48-AFφ* | 48 | 69.25 | 140 | 6.5 | ||||||||||||
| CBKEC-F50-AFφ* | 50 | 70.25 | 142 | 6.7 | ||||||||||||
| CBKEC-F52-AFφ* | 52 | 71.25 | 144 | 6.8 | ||||||||||||

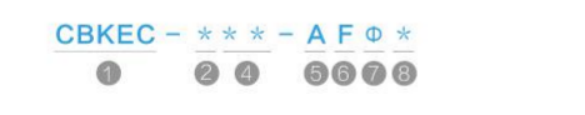

Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
