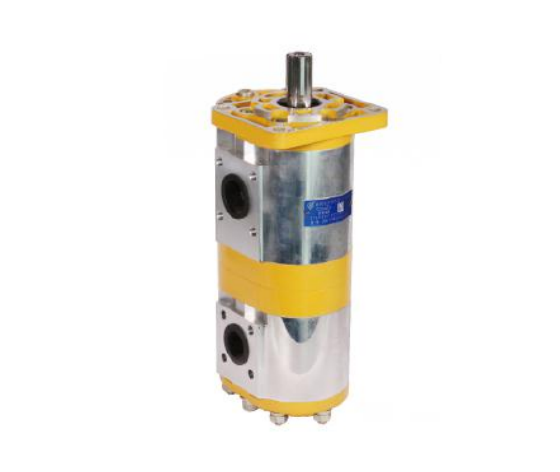

Gear Pump Manufacturing CBNL-F5-F5 Double Gear Pump
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.Using high-strength aluminum alloy material, light weight, easy to install
- 2.Axial clearance automatic compensation mechanism, radial hydraulic balance, maintain the high volumetric efficiency of the oil pump
- 3.Use self-lubricating bearings to improve the load capacity of the pump
- 4.The connection forms of the inlet and outlet ports are available with thread, flange, etc.
- 5.Input shaft connection form can choose flat key, rectangular spline
- 6.Gear pump maintain high volumetric efficiency at 600rpm
- CBNL-F5/F5
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
Hydraulic Pumps Outline Dimension
Specification（Rotation: Left）
| Model | Nominal displacement (mL/r) fore pump/hind pump | Pressure Fore pump/hind pump | Speed (r/min) | Volumetric Efficiency (≥%)fore pump/hind pump | L1 | L2 | L | d1 | D1 | d2 | d3 | D4 | H | weight | |||
| Rated | Max. | Min. | Rated | Max. | 65 | ||||||||||||
| CBNL-F532/F516-BF** | 32/16 | 20 | 25 | 600 | 2000 | 2500 | 90 | 69 | 203 | 274 | 30 | 65 | 25 | 65 | 20 | 11.6 | |
| CBNL-F532/F520-BF** | 32/20 | 204.5 | 277 | 11.7 | |||||||||||||
| CBNL-F540/F520-BF** | 40/20 | 72 | 210.5 | 283 | 35 | 76 | 11.9 | ||||||||||
| CBNL-F540/F525-BF** | 40/25 | 212.5 | 287 | 12.6 | |||||||||||||
| CBNL-F540/F532-BF** | 40/32 | 213 | 288 | 12.8 | |||||||||||||
| CBNL-F550/F520-BF** | 50/20 | 76 | 217.5 | 286 | 30 | 12.9 | |||||||||||
| CBNL-F550/F525-BF** | 50/25 | 219.5 | 290 | 25 | 13.7 | ||||||||||||
| CBNL-F563/F520-BF** | 50/32 | 222 | 295 | 30 | 13.9 | ||||||||||||
| CBNL-F563/F525-BF** | 63/20 | 80.5 | 226.5 | 295 | 25 | 14.2 | |||||||||||
| CBNL-F563/F532-BF** | 63/25 | 228.5 | 299 | 14.3 | |||||||||||||
| CBNL-F532/F516-BF** | 63/32 | 231 | 304 | 30 | 14.4 | ||||||||||||
Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
