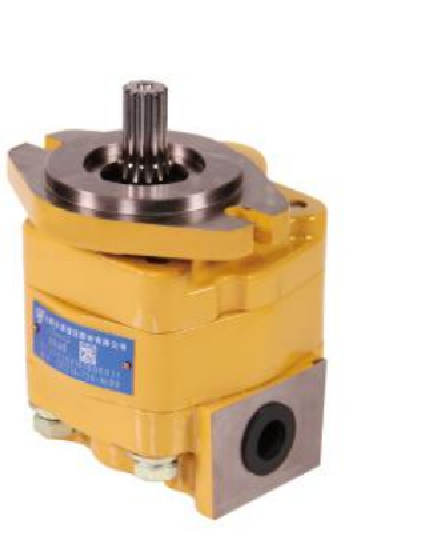

HCHC CBTZTA-F Gear Pump Hydraulic Pump
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1. Gear pump using high-strength cast iron material shell, strong carrying capacity
- 2.Adopting patented technical structure design, application of self-lubricating bearing, increasing working pressure of oil pump and maintaining high volumetric efficiency
- 3.The connection forms of the inlet and outlet ports are available with thread, flange, etc.
- 4.Input shaft coupling can choose flat key, rectangular spline, SAE involute spline, metric involute spline
- 5.Comply with SAE standard
- 6.The back cover can be equipped with a safety valve (customized)
- CBTZTA-F
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
HCHC CBTZTA-F Gear Pump Outline Dimension
Gear Pump Specification（Roation: Left）
| Model | Nominal displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volumetric efficiency(≥%) | L1 | L | Screw | Flange | Weight (kg)
| ||||||
| Rated | Max. | Min. | Rated | Max. | inlet | oulet | inlet | ||||||||
| CBTZTA-F08-A*** | 08 | 20 | 25 | 800 | 2000 | 2500 | 92 | 92.5 | 119 | M22*1.5 Φ35 spot-face | M18*1.5 Φ30 spot-face | d | a | b | 7.4 |
| CBTZTA-F10-A*** | 10 | 95 | 122 | 23 | 47.6 | 22.2 | 7.6 | ||||||||
| CBTZTA-F12.5-A*** | 12.5 | 98.5 | 125 | 7.8 | |||||||||||
| CBTZTA-F14-A*** | 14 | 100.5 | 127 | 7.9 | |||||||||||
| CBTZTA-F16-A*** | 16 | 102.5 | 129 | 8.1 | |||||||||||
| CBTZTA-F20-A*** | 20 | 107.5 | 134 | M33*2 Φ45 spot-face | M27*2 Φ40 spot-face | 8.3 | |||||||||
| CBTZTA-F23-A*** | 23 | 111.5 | 138 | 26 | 52.4 | 26.2 | 8.6 | ||||||||
| CBTZTA-F25-A*** | 25 | 114 | 141 | 8.7 | |||||||||||
| CBTZTA-F30-A*** | 30 | 120.5 | 147 | 9.1 | |||||||||||
| CBTZTA-F32-A*** | 32 | 123 | 150 | 9.3 | |||||||||||
| CBTZTA-F40-A*** | 40 | 133 | 160 | 9.9 | |||||||||||
Hydraulic gear pumps(motors) order code
①Product code
②Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩Solenoid valve function O normal open C normal close(Omited)
