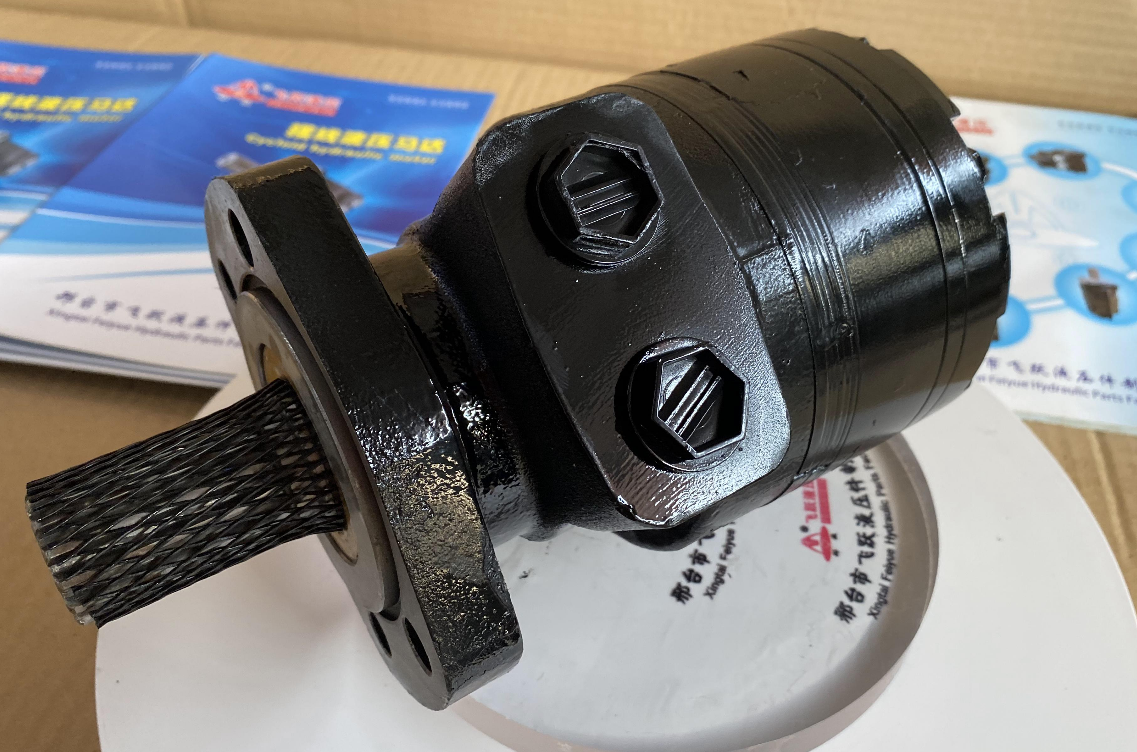

BMER 750CCM Large Torque Low Leakage Cycloidal Motor Hydraulic Motor
BMER 750CCM Large Torque Low Leakage Cycloidal Motor Hydraulic Motor

BMER 750CCM Large Torque Low Leakage Cycloidal Motor Hydraulic Motor

Score
Sold: 0 Question And Answer 0

MOQ: 100 PCS

Note: If you have any questions,please contact us

  • 1.Advanced manufacturing devices for the Geroler gear set, which use low pressure ofstart-up,provide smooth and reliable operation and high efficiency.
  • 2.The output shaft adapts in needle roller bearings that permit high axial and radial forces.The case can offers capacities of high pressure and high torque in the wide of applications.
  • 3.Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
  • 4.Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than shaft speed. It make the distribution in a high precision reduces life-cycle cost,maintain high volume efficiencies and can run very smoothly at low speed,gear box not r
  • BMER 125CCM
  • BMER 160CCM
  • BMER 200CCM
  • BMER 230CCM
  • BMER 250CCM
  • BMER 300CCM
  • BMER 350CCM
  • BMER 375CCM
  • BMER 400CCM
  • BMER 475CCM
  • BMER 540CCM
  • BMER 650CCM
  • BMER 750CCM
XINGTAI FEIYUE HYDRAULIC PARTS FACTORY

XINGTAI FEIYUE HYDRAULIC PARTS FACTORY

Since:

1985

You May Also Like

Product Description

BMER 750CCM Large Torque Low Leakage Cycloidal Motor Hydraulic Motor


BMER SERIES HYDRAULIC MOTOR

BMER series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed, and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Characteristic features:

1.Advanced manufacturing devices for the Geroler gear set, which use low pressure ofstart-up,provide smooth and reliable operation and high efficiency.

2.The output shaft adapts in needle roller bearings that permit high axial and radial forces.The case can offers capacities of high pressure and high torque in the wide of applications.

3.Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

4.Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than shaft speed. It make the distribution in a high precision reduces life-cycle cost,maintain high volume efficiencies and can run very smoothly at low speed,gear box not required.



BMER 750CCM Large Torque Low Leakage Cycloidal Motor Hydraulic Motor Main Specification:

TypeBMER 125BMER 160BMER 200BMER 230BMER 250BMER 300BMER 350BMER 375BMER 400BMER 475BMER 540BMER 650BMER 750
Geometric displacement(cm'/rev.)118156196228257296345371405462540647745
Max.speed (rpm)cont.360375330290290250220200185160140115100
int.490470425365350315270240220195170138120
Max.torque (N m)cont.3254505306257008109059901010108598010151050
int.3805256007107909301035114011801180124012501180
peak45059075087098011201285136013601260138013801370
Max.output (kW)cont.12.015.015.516.017.518.017.516.515.514.511.510.08.0
int.14.017.518.019.020.021.020.019.018.016-S1S.012.010.0
Max. pressure drop      (MPa)cont.20.520.520.520.520.520.520.520.51917.5141210.5
int.242424242424242422.51917.515.512
peak27.627.627.627.627.627.627.627.62520.520.517.514
Max.flow (L/min)cont.456070707580807S7575757575
int.60758585909595909090909090

1.Continuous pressure:Max.value of operating motor continuously.

2.Intermittent pressure:Max.value of operating motor in 6 seconds per minute.

3.Peak pressure:Max.value of operating motor in 0.6 second per minute.



BMER-2 Dimensions mounting Data


BMER 2 .png





Hydraulic motor spare part and production line:



1.Hydraulic motor body BEFORE processing.

Hydraulic motor body BEFORE processing.jpg



2.Picture of shell processing equipment.


3.Hydraulic motor body AFTER processing.



Hydraulic motor body.jpg





1. Hydraulic motor inside contact Shaft BEFORE Processing

  Hydraulic motor inside contact Shaft .jpg



2. Equipment for processing internal contact shafts






3.Hydraulic motor inside contact shaft AFTER processing.


Hydraulic motor inside contact shaft.jpg








1.Hydraulic motor drlve shaft BEFORE processing.

Hydraulic motor drlve shaft.jpg



2.Hydraulic motor drlve shaft processing machine

Hydraulic motor drlve shaft.jpg

3. Hydraulic motor drlve shaft AFTER processing.




 Hydraulic motor drlve shaft AFTER.jpg




1.Hydraulic motor stator BEFORE processing

Hydraulic motor stator BEFORE processing.jpg



2.Hydraulic motor stator processing machine

 Hydraulic motor stator BEFORE processing.jpg

 3.Hydraulic motor stator AFTER processing

Hydraulic motor stator AFTER processing.jpg

 Outgoing pictures and product certification




Product list :fei yue catalogue 2021
