Single-Layer Suction Type Vibrating De-Stoner
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1.The machine uses dual vibration motor as the vibration source
- 2.No dust outside,sturdy and durable,which is easy to disassemble,maintain and clean.
- 3.The exterior design uses a new industrial design concept,unique and featured structure and suction hood structure,so the effect of stone remover more reliable.
- 4.The inclination angle of de-stoner plate is within the range of 10-14 degrees,which is adjustable, and able to remove the side stones from different kinds of raw grains.
- 5.Intelligent control system:Advanced LCD intelligent touch screen is taken as the control interface:
- TQSX170
- TQSX200
Hunan Chenzhou Grain and Oil Machinery Co., Ltd.
Since:
1967
Product Description

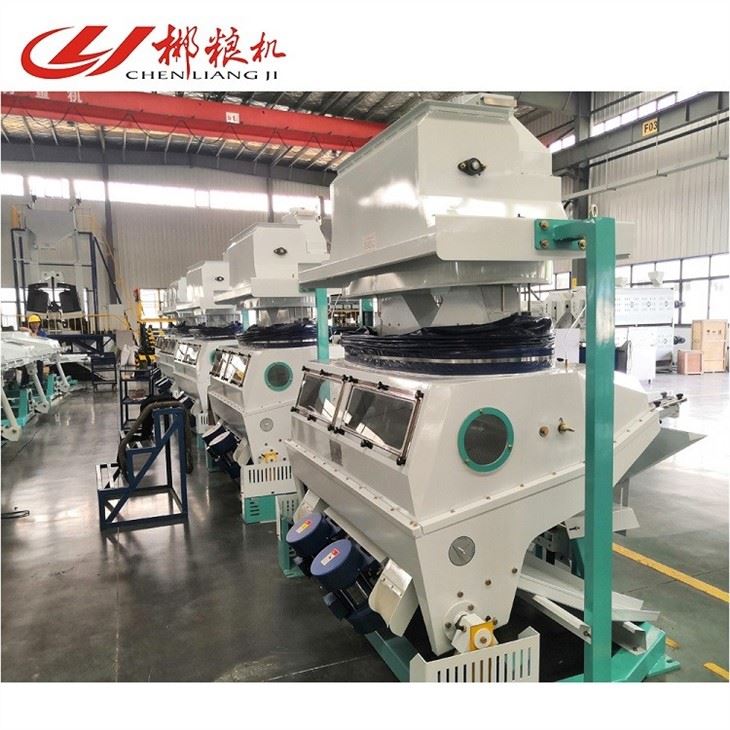

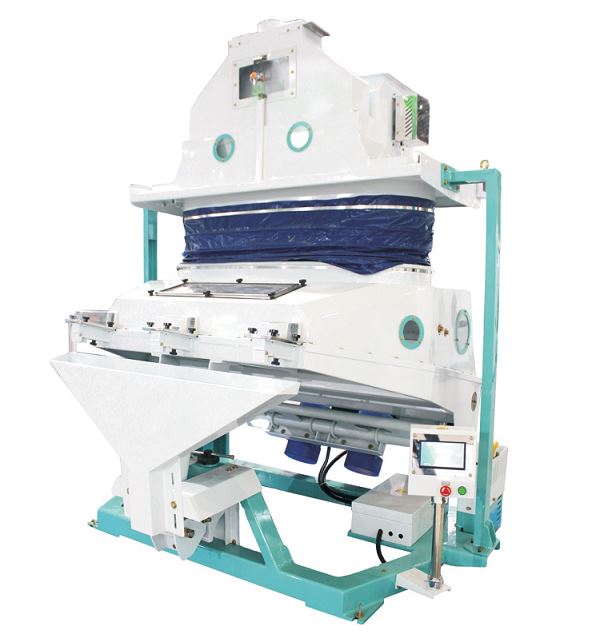

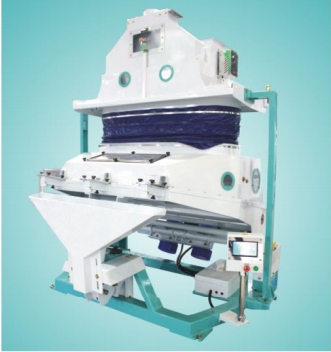

This high capacity TQSX single layer vibratory destoner is used for remove stones from different kinds of raw grains .
It adopt dual vibration motor as the vibration source,so the amplitude of vibration can be adjustable ,the structure design is more reasonable ;
No dust outside,sturdy and durable ,which is easy to disassemble ,maintain and clean .
The exterior design of this TQSX single layer vibratory destoner uses a new industrial design concept ,unique and featured structure and suction hood structure ,making its air volume more economical and the effect of stone remover is more reliable .
This TQSX single layer vibratory destoner adopts intelligent control system with advanced LCD intelligent touch screen.
Main technical parameter
| Model | TQSX170 | TQSX200 |
| Capacity | 10-12t/h | 13-15t/h |
| Air Volume | 9000-10800 m3/h | 9800-10800m3/h |
| Main Motor | 13kw | 15kw |
| Vibratory Motor | 0.25x2kw | 0.25x2kw |
| Weight | 850kg | 890kg |
| Dimension | 1775x2200x2570mm | 2522x1916x2465m |
