SM30+3511B SM Series Stereo Zoom Microscope
MOQ: 10 PCS
Note: If you have any questions,please contact us
- #1562+#2180+#2266+#3510+#4302+#4113
- Zoom ratio is 8:1
- Use modular design
- Use parallel light path
- Can provide high-definition and distortion-free microscopic images

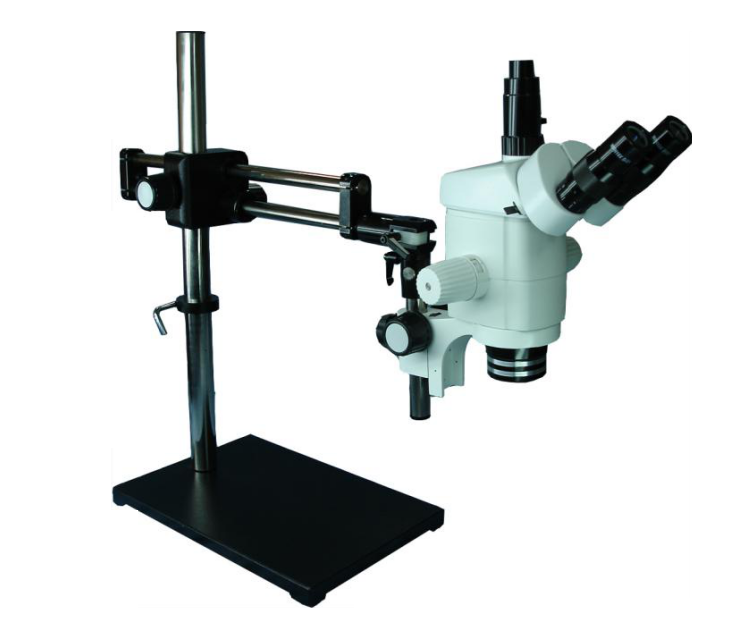

- SM Trinocular with two arms boom stand
- SM30+3511B
Beijing Tech Instrument Company
Since:
Product Description
Base dimension: 386x260x25mm, the larger and heavy base best to help keep stand more stable.
Vertical Post: OD. 37mm, main post 375mm
a 185mm extension post can be attached.
A Lock Ring on vertical post for stopping.
Horizontal Post: Smooth ball bearing movement, OD. 20mm for each shaft, Long 570mm (end to end), travel distance from vertical post to the end of horizontal post: 15.5-37mm. End of horizontal post has a 5/8'' hole that will fit Universal and Arbor arms.
Arbor: post OD.25mm , Length 200mm,with a 5/8" fitting. Allows for tilting of adjustment 90° and 45° from vertical line
