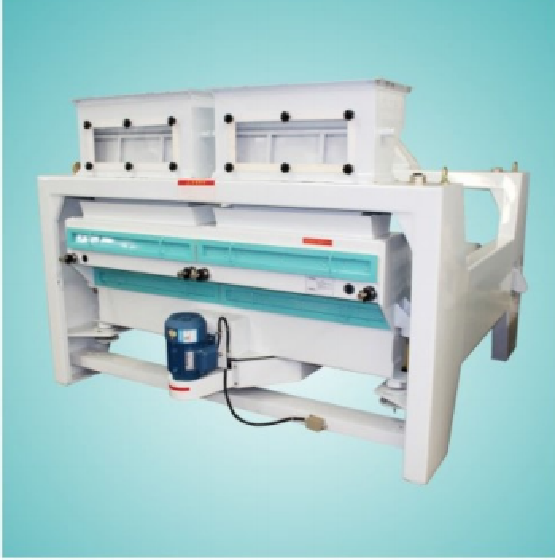

Rotary Cleaning Machine
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1.3 different motion tracks on the same sieve plate.the-sieve feed end swing from left side to the right side approximately.
- 2. The sieve centre body do as flat circular motion.
- 3.Which is good for materials over floeing and automatic classification.
- 4.Airtight sieve body equipped with suction device,less dust
- 5.Using four hanging screen, smooth operation and durable
- TQLM100x2
- TQLM125x2
- TQLM160x2
- TQLM200x2
Hunan Chenzhou Grain and Oil Machinery Co., Ltd.
Since:
1967
Product Description
Main technical parameter
| Model | TQLM100x2 | TQLM125x2 | TQLM160x2 | TQLM200x2 |
| Capacity | 4-7t/h | 6-9t/h | 8-12t/h | 10-15t/h |
| Power | 0.75kw | 0.75kw | 1.1kw | 1.1kw |
| Air Volume | 40+20m3/min | 55+25m3/min | 70+32m3/min | 90+40m3/min |
| Dimension (LxWxH)mm | 2140x1400x1470 | 2150x1650x1470 | 2150x2010x1470 | 2150x2460x1470 |
