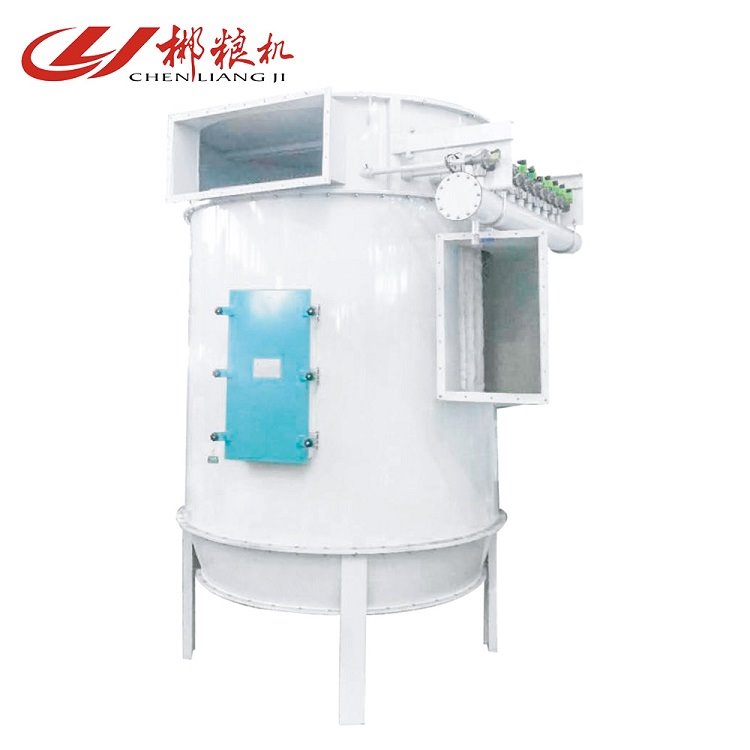

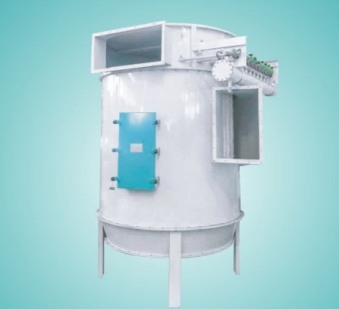

Pulse Dust Collector
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1.Adopted round body,its hardness and stability is great.
- 2.Lower noise,advance technical.
- 3.Feeding moves as tangent line with centrifugation to reduce resistance,double de-dust, so that filter bag is more efficient.
- TBHM52
- TBHM78
- TBHM104
- TBHM130
- TBHM156
Hunan Chenzhou Grain and Oil Machinery Co., Ltd.
Since:
1967
Product Description
Main technical parameter
| Model | TBHM52 | TBHM78 | TBHM104 | TBHM130 | TBHM156 |
| Length of Filter Bags(mm) | 1800×2000×2400 | 1800×2000×2400 | 1800×2000×2400 | 1800×2000×2400 | 1800×2000×2400 |
| Power of Air Pump (kw) | 2.2 | 2.2 | 3 | 3 | 3 |
| Air Volume(m3/h) | 10000/12000/14000 | 15000/17000/20000 | 20000/22000/25000 | 25000/29000/35000 | 30000/35000/41000 |
| Filter Area(m2) | 35.2/38.2/46.1 | 51.5/57.3/69.1 | 68.6/76.5/92.1 | 88.1/97.9/117.5 | 103/114.7/138.2 |
| Net Weight (kg) | 1500/1530/1580 | 1730/1770/1820 | 2140/2210/2360 | 2540/2580/2640 | 3700/3770/3850 |
