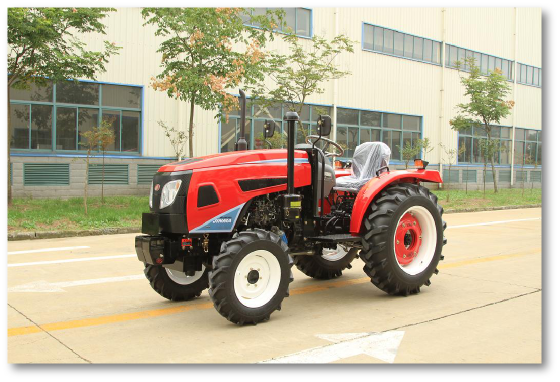

JM-304 Tractor Is New Type Four Wheel Tractor Design For Foreign Agricultural Machinery
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1.The engine is Direct drive
- 2.Single clutch four wheel drive,8 gear transmission
- 3.Perfect in performance of Hydraulic suspension system
- 4.Low pressure wide drive tires with good adhesion
- 5.There are both Mechanical or hydraulic steering system
- JM-304
Jiangsu Yueda Investment Co., Ltd
Since:
1985
Product Description
| Model | JM-304 | |
| Drive Type | 4WD | |
| Overall Dimensions L×W×H(mm): | 3323x1435x2053 | |
| Wheel Track (mm) | Front | 1200 |
| Rear | 1150~1450 | |
| Wheel Bass(mm) | 1833.5 | |
| Ground Clearance (mm) | 292 | |
| Rated Traction Force(N) | 6400 | |
| Construction Mass(kg) | 1500 | |
| Min.Turning Radius(m) | 4.2 | |
| Theoretical Speed (km/h) | Forward | 2.2、2.94、4.13、6.12、10.15、13.58、19.03、28.25 |
| Reverse | 2.8、12.92 | |
| Model | TY395 | |
| Type | 3-Cylinder Vertical,water cooled,4 stroke cycle | |
| Rated Power(kw/hp) | 22.1/30 | |
| Rated Speed (rpm) | 2300 | |
| Bore×Stroke (mm) | 95×105 | |
| Total Displacement(L) | 2.23 | |
| Clutch | 10" single stage or Dual stage | |
| Gear Box | (4+1)×2 | |
| Main Drive | One Pair of Spiral Bevel Gearing | |
| Differential | Bevel Gear | |
| Differential Lock | Jaw Lock | |
| Final Transmission | Spur Gear,External,Gearing | |
| Type | Front | 7.5-16 |
| Rear | 11.2-24 | |
| Steering Gear | Full Hydraulic Steering | |
| Brake | Disc type | |
| Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 4900 |
| 3-Point Suspension | Category:I | |
| P.T.O Shaft | Rotating Speed (rpm) | 540/720 or540/1000 |
| Spline Size | 6-Φ35Rectangular Spline | |
