HF4835U80-145 Low Voltage Series Solar Charge Inverter

HF4835U80-145 Low Voltage Series Solar Charge Inverter

Score
Sold: 0 Question And Answer 0

MOQ: 10 PCS

Note: If you have any questions,please contact us

  • 1.Max.Voc:100V;Rated input voltage:110/120V
  • 2.Load friendly: Stable sine wave AC output via SPWM modulation
  • 3.Supports a wide range of battery technology: GEL, AGM, Flooded, LFP, and program.
  • 4.Dual LFP battery activation method: PV&mains
  • 5.Uninterrupted power supply: simultaneous connection to utility grid/generator and PV
  • HF4835U80-145
SRNE Solar Co.,Ltd

SRNE Solar Co.,Ltd

Since:

2009

You May Also Like

Product Description

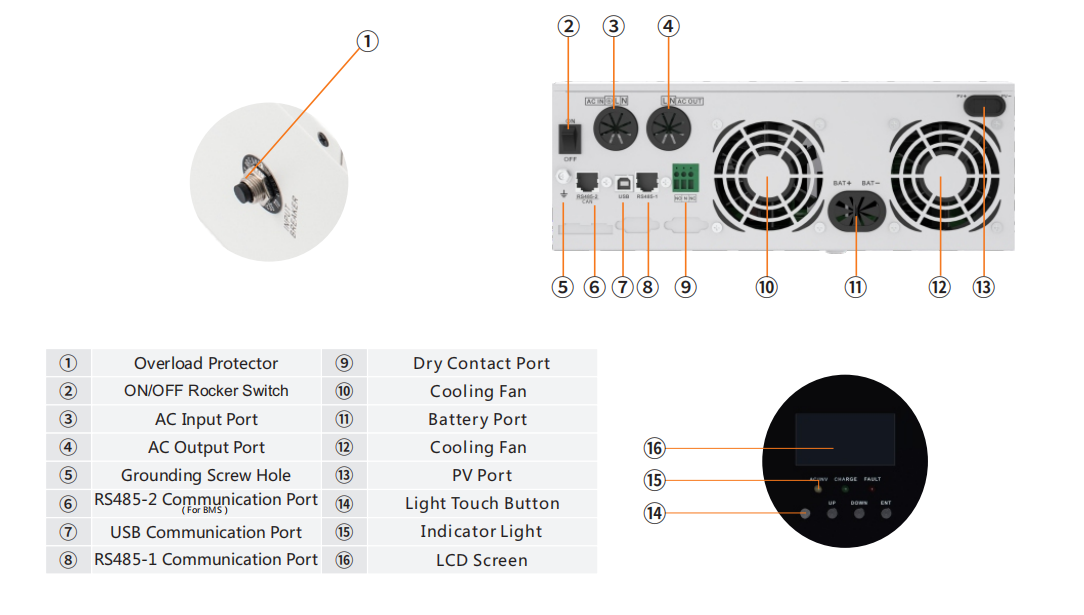

    Product characteristics



Parameters

ModelHF4835U80-145Adjustable
Battery Input
Battery typeSealed、FLood、GEL、LFP、Ternary
Rated Battery Input Voltage48V ( Minimum Startup Voltage 44V)

Hybrid Charging Maxi

mum Charging Current

120A



Battery Voltage Range40Vdc~60Vdc ± 0.6Vdc(Under-voltage Warning/Shutdown Voltage/Over-voltage Warning/ Over-voltage Recovery...)



Solar Input

Maximum PV Open-circuit

Voltage



145vdc


PV Working Voltage Range60-145Vdc
MPPT Voltage Range60-115Vdc
Maximum PV Input Current50A
Maximum PV Input Power4400W
Maximum PV Charging Current80A
AC Input(generator/grid)

Mains Maximum Charging

Current



40A

Rated Input Voltage110/120Vac
Input Voltage Range(90Vac-140Vac)±2%
Frequency50Hz/ 60Hz (Automatic Detection)
Mains Charging Efficiency>95%
Switch Time (bypass and inverter10ms(Typical Value)
Maximum Bypass Overload Current40A
AC Output
Output Voltage WaveformPure Sine Wave
Rated Output Voltage (Vac)120Vac (100/105/110Vac)
Rated Output Power (VA)3500  (2900/3050/3200)
Rated Output Power(W)3500  (2900/3050/3200)
Peak Power6000VA
On-load Motor Capacity2HP
Output Frequency Range(Hz)50Hz土0.3Hz/60Hz±0.3Hz
Maximum Efficiency>92%
No-load LossNon Energy-saving Mode: ≤50W Energy-saving Mode:≤25W (Manual Setup)
General
CertificateCE(IEC 62109-1)/CETL(UL 1741/ CSA C22.2 NO.107.1)
EMC Certification LevelEN61000, C2
Working Temperature Range-15°C ~ 55°C
Storage Temperature Range-25°C ~ 60°C
Humidity Range5% to 95%(Conformal Coating Protection)
Dimensions426mm*322mm*124mm
Weight (KG)10.8
