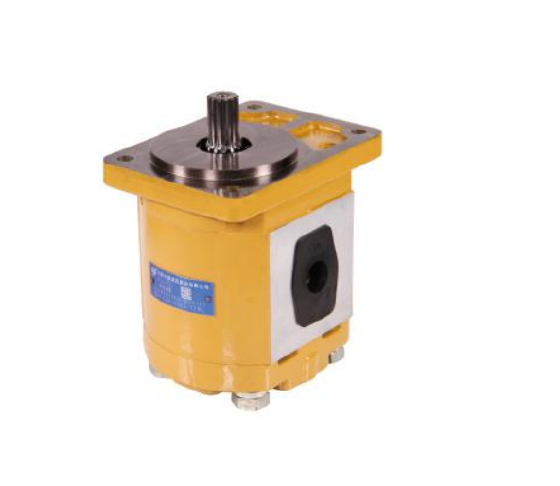

Hydraulic Gear Pump CBHB-F5
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.The shell is made of high-strength aluminum alloy, and the front and back covers are made of cast iron
- 2.Axial clearance automatic compensation mechanism, radial hydraulic balance, maintain the high volumetric efficiency of the oil pump
- 3.Use self-lubricating bearings to improve the load capacity of the pump
- 4.The connection forms of the inlet and outlet ports are available with thread, flange, etc.
- 5.Input shaft connection form can choose flat key, rectangular spline
- 6.Maintain high volumetric efficiency at 600rpm
- CBHB-F5
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
Outline Dimension
.png)
.png)
Hydraulic Gear Pump CBHB-F5 Specification（Roation: Right）
| Model | Nominal displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volumetric efficiency(≥%) | L1 | L | D | Weight(kg) | ||||
| Rated | Max. | Min. | Rated | Max. | Inlet | oulet | ||||||
| CBHB-F508-*F** | 08 | 20 | 25 | 600 | 2500 | 3000 | 93 | 71 | 146 | 25
| 20
| 11.5 |
| CBHB-F510-*F** | 10 | 71.5 | 147 | 11.6 | ||||||||
| CBHB-F512.5-*F** | 12.5 | 72.5 | 149 | 11.7 | ||||||||
| CBHB-F516-*F** | 16 | 74 | 152 | 11.8 | ||||||||
| CBHB-F520-*F** | 20 | 75.5 | 155 | 12 | ||||||||
| CBHB-F525-*F** | 25 | 77.5 | 159 | 12.2 | ||||||||
| CBHB-F528-*F** | 28 | 78.75 | 161.5 | 32 | 12.3 | |||||||
| CBHB-F532-*F** | 32 | 80.5 | 165 | 12.5 | ||||||||
| CBHB-F540-*F** | 40 | 83.5 | 171 | 35 | 25 | 12.8 | ||||||
| CBHB-F545-*F** | 45 | 85.5 | 175 | 13 | ||||||||
| CBHB-F550-*F** | 50 | 87.5 | 179 | 13.2 | ||||||||
Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
