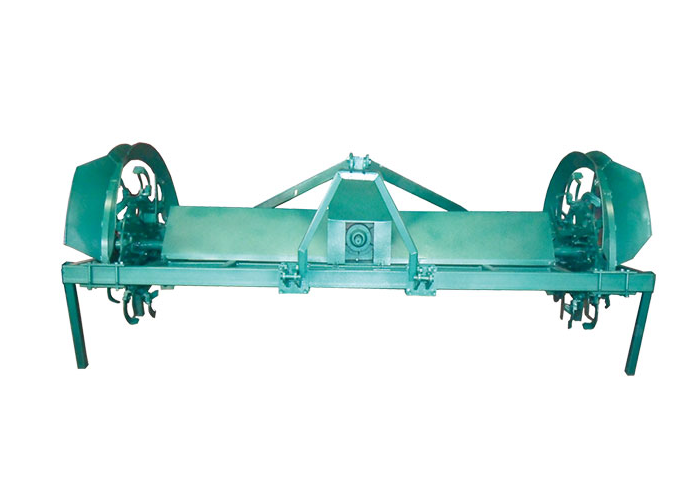

Double Ditching Machine Trencher 1KJ-30 (2)
MOQ: 1 PCS
Note: If you have any questions,please contact us
- Symmetrical structure , novel design
- Open double Ditching at one time, high efficiency
- Adjustable ditch spacing
- Ditching, stubble, broken soil strong function
- According to the demand, it can also realize the ridge function
- The 3-meter double-ditch trencher can open two trenches at a time in the wheat field
- 1KJ-30 (2)
JIANGSU QING HUAI MACHINERY CO.,LTD
Since:
Product Description
Double Ditching Machine Trencher 1KJ-30 (2)
Features:
♦ Symmetrical structure , novel design
♦ Open double Ditching at one time, high efficiency
♦ Adjustable ditch spacing
♦ Ditching, stubble, broken soil strong function
♦ According to the demand, it can also realize the ridge function
♦ The 3-meter double-ditch trencher can open two trenches at a time in the wheat field
Main technical parameter table:
| Type | 1KJ-30(2) | |||
| Supporting tractor power(kw) | 36. 8-47. 8 | |||
| Distance between two furrows(cm) | 100-130 | 130-160 | 160-190 | 190-220 |
| Power output shaft speed (r/min) | 720 | 540 | ||
| Bevel gear speed ratio | 17： 38 | 22： 35 | ||
| Cutter plate Rotating speed (r/min) | 220 | 232 | ||
| Ditch width(cm) | 20 (left and right) | |||
| Ditch Depth(cm) | 30 (left and right) | |||
| Blades type | IT245 Coulter: special wall cutter | |||
| Number of blades | IT245 Coulter 24: special wall cutter 12 | |||
| Speed(km/h) | 2-5 | |||
| Dimensions(mm) | 1200* 1790*1260 | 1200*2090*1260 | 1200*2390*1260 | 1200*2690*1260 |
| Total Weight(kg) | 450 | 470 | 520 | 550 |
| Gear oil refueling amount (kg) | 6. 5 | |||
| Connection way with tractor | Standard three-point suspension | |||
