Ditching Machine Trencher 1KJ-35

Ditching Machine Trencher 1KJ-35

Score
Sold: 0 Question And Answer 0

MOQ: 1 PCS

Note: If you have any questions,please contact us

  • The structure is simple, reasonable and reliable
  • Adopt first-grade spiral bevel gear drive system, strong bearing capacity
  • The frame adopts integral welded structure with high strength
  • The design of the scattered soil cover of the machine is novel and unique, and the scattered soil is very uniform;
  • Three throwing adjustment grids are installed on each side of the hood to adjust the throwing distance;
  • Limiting devices are added on both sides of the machine to ensure the straightness of the trench and the stability of the trench depth.
  • Can open rectangular groove and trapezoidal groove
  • After modification, a wider ditch can be opened
  • 1KJ-35
JIANGSU QING HUAI MACHINERY CO.,LTD

JIANGSU QING HUAI MACHINERY CO.,LTD

Since:

You May Also Like

International Standard Number

1KJ-35

Product Description

Ditching Machine Trencher 1KJ-35



Features:

♦ The structure is simple, reasonable and reliable

♦ Adopt first-grade spiral bevel gear drive system, strong bearing capacity

♦ The frame adopts integral welded structure with high strength;

♦ The design of the scattered soil cover of the machine is novel and unique, and the scattered soil is very uniform;

♦ Three throwing adjustment grids are installed on each side of the hood to adjust the throwing distance;

♦ Limiting devices are added on both sides of the machine to ensure the straightness of the trench and the stability of the trench depth.

♦ Can open rectangular groove and trapezoidal groove

♦ After modification, a wider ditch can be opened

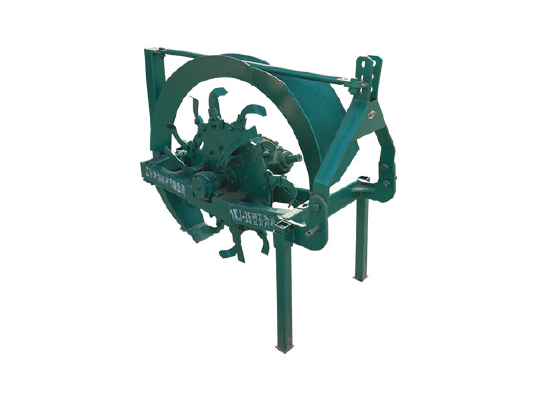

Ditching Machine Trencher 1KJ-35.png



Main technical parameter table:



NameSingle circle disc trencherDouble circle disc trencher
Type1KJ-351KJ-35K(Widened type)1KJ-35A
Power(kW)36. 7-51.536. 7-51.536. 7-51.5
Power output shaft speed (r/min)720720720
Cutter plate Rotating speed (r/min)228228228
Cutter plate Line speed(m/s)11.711.711.7
productivity(m/h)2000-35002000-35002000-3500
Ditch Depth(cm)30-4030-4030-35
Ditch bottom width(cm)10-1312-1412-14
Ditch surface width(cm)rectangle12-13//
Trapezoid18-2028-3828-38
Number of cutter disc coulters18 (Main 12/ auxiliary 6)18 (Main 12/ auxiliary 6)16 (8 each for left and right)
Dimensions(mm)1500*700*14001500*770*14001100*850*1300
Total Weight(kg)290295305
transfer methodSingle-stage gear transmissionIntermediate gear transmission
Connection wayRear mounted Three-point suspensionRear mounted Three-point suspension
Scope of application: Land where wheat, rape, vegetables, cotton, corn and other crops are grown
