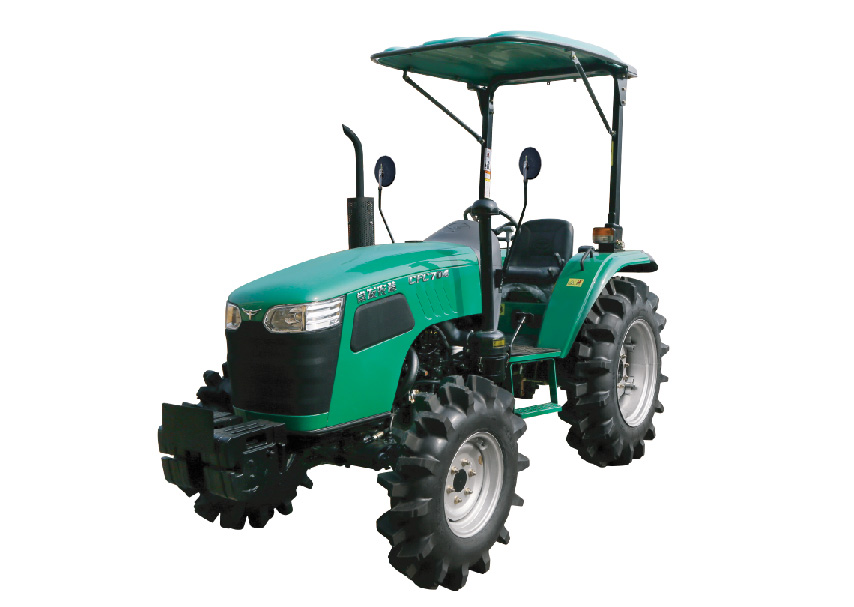

Crown C Series Wheeled Tractor CFC704

Crown C Series Wheeled Tractor CFC704

Score
Sold: 0 Question And Answer 0

MOQ: 1 PCS

Note: If you have any questions,please contact us

  • 1.Utilized in plowing, rotary tillage and transportation.
  • 2.Strong power, high ground clearance.
  • 3.Adjustable wheel track.
  • 4.New type fuel filter
  • 5.Optional device: Belt driving power take-off device.
  • CFC704
Jiangsu Changfa Agricultural Equipment Holding Co.,Ltd

Jiangsu Changfa Agricultural Equipment Holding Co.,Ltd

Since:

2003

You May Also Like

Product Description

1. CHANGFA Crown C series tractor(horsepower ranging from 35 to 70) adopts 16F plus 16R shuttle shift, gaining a large operation space for users to get a quite comfortable driving experience.

2. It can meet the demand of ploughing, rotary tilling and transporting work.

3. Large volume rotational tank gives long time running, Safety Frame and Drivers Cab





model:CFC704
Engine modelCF4B70T-Z
Engine type:In-line、Water-cooled、 Four-stroke、Direct Injection
Engine Rated Output (KW):51.5
Rated Speed (r/min):2400
Dimension(L×W×H)(mm):3504*1526*2280 (muffler roof), 2395 (cab roof), 2490 (safety frame roof)
Wheel Base (mm):1798
Front Wheel Track(mm):1257
Rear Wheel Track(mm):Step Adjustable:1210~1426(Usually 1210),Optional Stepless Adjustable:1210~1660(Usually 1210)
Minimum Ground Clearance (mm):356
Rated Traction (kN):14
Tire Size(Front Wheel) (inch):7.50-16
Tire Size (Rear Wheel) (inch):11.2-28
Minimum Using Weight (kg):2030/1960
Clutch:Dry Type、Single Disk、Constant Engaged、Double-action
Gearbox:16+16 gear shift
Type of Brakes:Oil Bath、Double-disk、 Mechanically Controlled
Driving Speed (km/h):Forward 2.41~28.81    Backward 2.90~9.37
The Maximum Lifting Force at the Low Suspension Point of 610mm (kN):13
PTO Speed (r/min):540/760,Optional: 540/1000 or 760/1000
