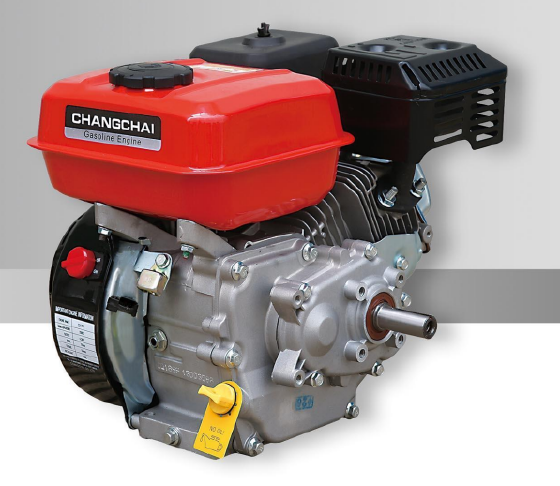

CQ Series Gasoline Engine

CQ Series Gasoline Engine

Sold: 0 Question And Answer 0


Note: If you have any questions,please contact us

  • 1.Gasoline engine with simple structure,easy to operate.
  • 2.Excellent reliability and durability,simple and easy for maintenance.
  • 4.Equipped with advanced ignition system and decompression device,so it is easy to start
  • CQ170F
  • CQ192F
Changchai Co., Ltd

Changchai Co., Ltd



You May Also Like

Product Description

Gasoline Engine Specifications of CQ series Gasoline Engine

Model                                        ItemCQ170FCQ192F
Engine TypeAir cooled,  4-Stroke, OHV ,Cylinder Oblique25, Forced air cooled
Number of cylinder1
Bore (mm)7092
Stroke (mm)5466
Displacement (L)208439
Rated Power/Speed (kW/r/min)4/36008/3600
Max Torque (N.m)12.427
Speed at Max.Torque (r/min)2800
Injection modeCarburetor
AspirationNatural Aspiration
Ignition methodTCI Ignition
LubricationSplash lubrication
Specific fuel consumption at the rated condition(g/kw.h)≤395≤370
Idle Speed (r/min)14401440
Compression Ration8.58
Start systemElectrical/Recoil start
Net Weight (Kg)1632
Overall Dimensions [LXWXH](mm)385x330x370480x430x490

 Main technical features of CQ series - Gasoline Engine
1. Simple structure, easy to operate, cost effective
2. Excellent reliability and durability, simple and easy for maintenance.
4. Gasoline engine equipped with advanced ignition system and decompression device, so it is easy to start.


Air cooled engine widely used in commercial equipment,agricultural and construction machinery. In addition,it can also be used in ramming machine,power tiller,pastoral management machine,sprayer and cleaning machine etc.
