CMZ2 Gear Motor With High Quality
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.CMZ2 gear motor Using high-strength aluminum alloy material, light weight, easy to install
- 2.It has high working pressure, high volumetric efficiency, small starting torque and large output torque
- 3.The output flow pulsation is small, and the motor runs smoothly
- 4.CMZ2 gear motor adopting special structure design, has the ability to resist radial force and axial force
- 5.Output shaft connection forms include flat key, rectangular spline, involute spline
- CMZ2
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description

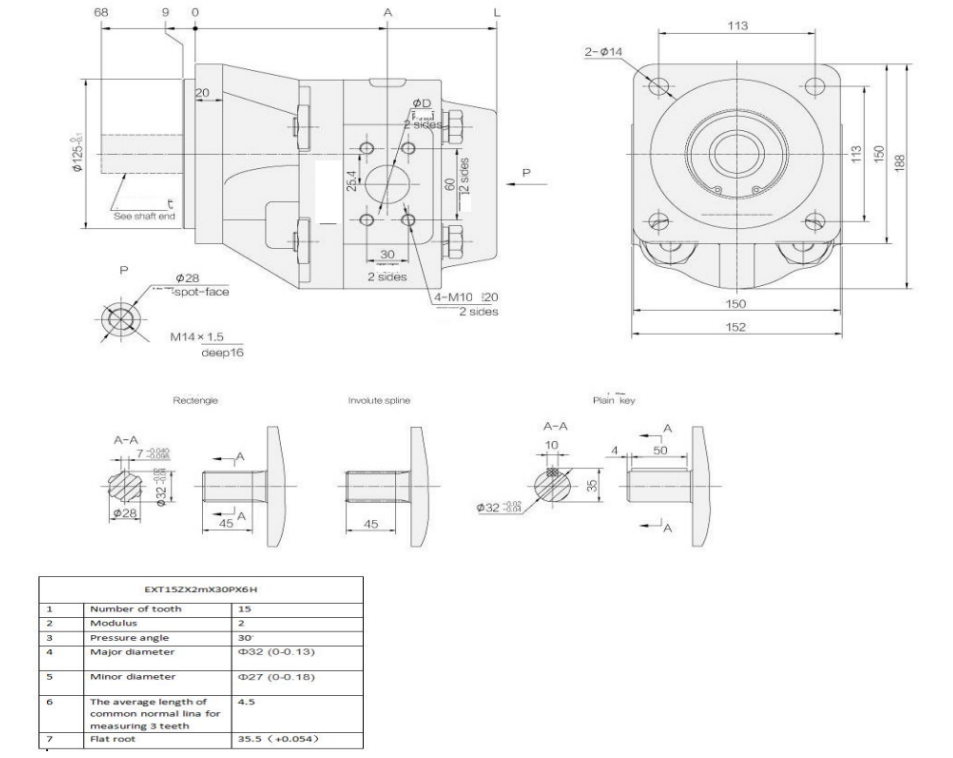

CMZ2 Gear Motor Outline Dimension
Specification of CMZ2 Gear Motor
| Model | Nominal displacement (mL/r) fore pump/central pump | Pressure(Mpa) | Speed（r/min） | Volumetric Efficiency (≥%) | Output torque (N.m) | A | L | D | Weight (kg) | |||
| Cracking pressure | Full opening pressure | Min | Rated | Max | ||||||||
| CMZ2032-BF*S | 32 | 20 | 25 | 600 | 2000 | 3000 | 90 | 82 | 133 | 200 | 25 | 9.6 |
| CMZ2040-BF*S | 40 | 102 | 206 | 10 | ||||||||
| CMZ2050-BF*S | 50 | 127 | 137 | 212 | 10.4 | |||||||
| CMZ2063-BF*S | 63 | 161 | 139 | 218 | 32 | 10.8 | ||||||
| CMZ2080-BF*S | 80 | 204 | 145 | 231 | 36 | 11.7 | ||||||
| CMZ2100-BF*S | 100 | 255 | 152 | 243 | 12.6 | |||||||
Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩Solenoid valve function O normal open C normal close(Omited)
