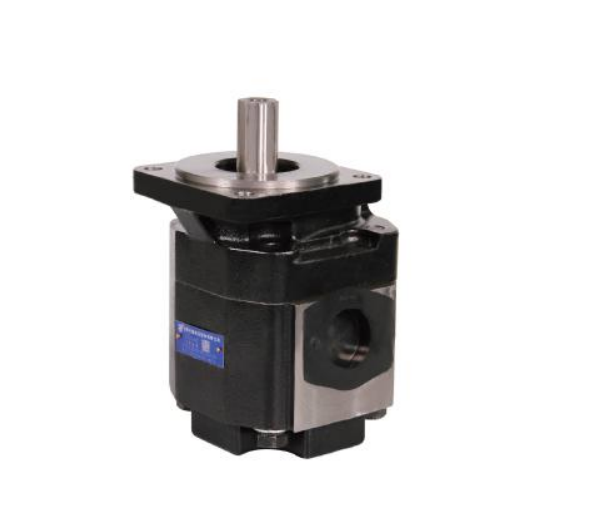

Gear Pump Hydraulic CBGTG

Gear Pump Hydraulic CBGTG

Score
Sold: 0 Question And Answer 0

MOQ: 100 PCS

Note: If you have any questions,please contact us

  • 1.Gear pumps using high-strength cast iron material shell, strong carrying capacity
  • 2.Adopting patented technical structure design and self-lubricating bearing application, the gear pump has high working pressure, high volumetric efficiency and high reliability
  • 3.Lightweight design, advanced side panel structure, improve product pressure resistance and abrasion resistance
  • 4.Input shaft connection form can choose flat key, rectangular spline, SAE involute spline, metric involute spline
  • CBGTG
Hefei Changyuan Hydraulic Co., Ltd

Hefei Changyuan Hydraulic Co., Ltd

Since:

1966

You May Also Like

Product Description

CBGTG Gear Pump Hydraulic Outline Dimension



CBGTG  GEAR PUMP .png



Specification(Roation: Left)



ModelNominal displacement (mL/r)Pressure
(MPa)
Speed
(r/min)

Volumetric

Efficiency

(≥%)

L1Dinletoutlet
RatedMax.Min.RatedMax.Dm*nAadv*wBb
CBGTG-G32-BF**322025600200025009295.53230.2*58.730M102022.2*47.630M10
CBGTG-G36-BF**3697.5
CBGTG-G40-BF**4099.5
CBGTG-G50-BF**50104.53835.7*69.935M122526.2*52.435
CBGTG-G63-BF**63111
CBGTG-G80-BF**801205042.9*77.8353230.2*58.735
CBGTG-G90-BF**90125.5
CBGTG-G100-BF**100130



Hydraulic gear pumps(motors) order code




CBGTG  GEAR PUMP .png





①Product code

② Pressure grade  A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa   Some models can be omitted

③ Number of tooth 2 3 4 5 6(ome models can be omitted)

④ Nominal displacement(mL/r)

⑤ Mounting A  Oval B  Square C  Rectangle T   Special

⑥ Joining port L Screw F Flange  Special

⑦ Shaft end P  Plain Key H  Rectangle spline Z  Taper shaft woodruff X  lnvolute spline φSAE  SAE spline B  Flat endT  Special shaft end

⑧ Rotation L  Left R  Right  S bi-direction

⑨ Pressure grade2 3 4

⑩ Solenoid valve function  O  normal open   C  normal close(Omited)
