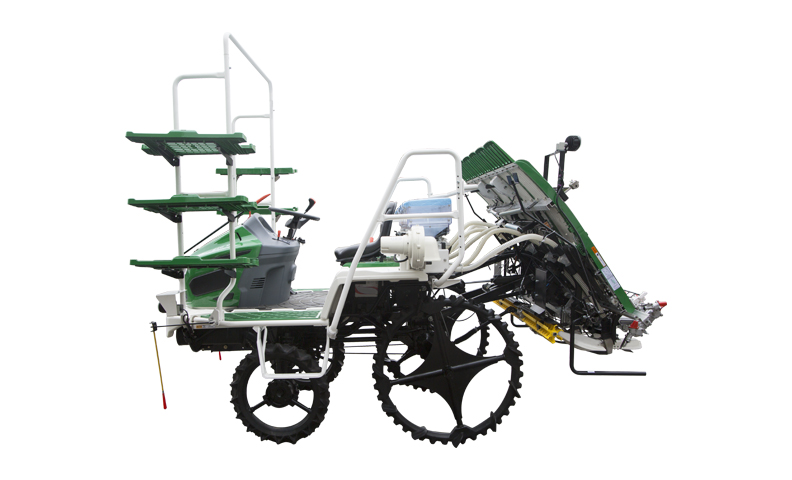

2ZG6Y High Speed Ride Transplanter

Score

Sold: 0 Question And Answer 0

MOQ: 1 PCS

Note: If you have any questions,please contact us

1.Equipped with Yangma 18.5kW (25 horsepower) high power diesel engine, low fuel consumption, sufficient power
2.Well designed rotary mechanism, weak rotary vibration, and adopts double row clearance-eliminating gear to ensure transmission accuracy.
3.Equipped with advanced seedling carrier automatic balance control system, faster action adjustment, and the depth of transplanting seedlings is consistent and the quality of transplanting seedlings is improved
4.Configure anti-trap gear, so the torque of the whole machine is larger, also can better walk through a more sunken place and pass a higher ridge, which effectively improves the efficiency.
5.The front and rear bridges adopt high-strength cast iron parts, which increase the strength of the whole machine and seedling load capacity.

Jiangsu Changfa Agricultural Equipment Holding Co.,Ltd

Since:

2003

Product model		2ZG-6Y
Name		"Beyond" series of high speed ride rice transplanter
Product form		High-speed ride
Shape Size (mm)		319022402555
Structural quality (kg)		840
Engine (Diesel)	Model	3TNM72
	Power (Kw/rmin)	18.5/3600
	Mode of start-up	Electric
	Fuel type	Diesel
	Tank Capacity (L)	34
Walking section	Driving mode	Four-wheel Drive
	Type of Drive Wheel	Front: solid type; Rear: rubber wheel claw type
	Wheel diameter (mm)	Front :650; Rear :950
	Driving speed	Hydraulic CVT (HST)
	Turn mode	Hydraulic power steering
	Engine speed series	Main speed: Forward and backward step-less speed adjustment ;Secondary speed change :2 gears; anti-fall speed :2 gears
Transplanting department	Number of rows (rows)	6
	Row spacing of transplanting seedlings (mm)	300
	Number of transverse seedlings	14.16,18,20,26(five to three)
	Taking (number)	14.16,18,20,26(five to three)
	Longitudinal seedling taking (mm)	8~20
	Transplant depth (mm)	15~60(6 gears + Auto)
	Hole Distance (mm)	100、120、140、160、180、210、240
	Type of balancing mechanism	Mechanical
	Planting arm type	Rotary forced transplanting
Seedling	Seedling type	Bowl seedlings and blanket seedlings
	Age of leaves (leaves)	2.0~4.5
	Height of leaves(mm)	100~250
Hourly productivity (hm²/h)		0.2~0.42
