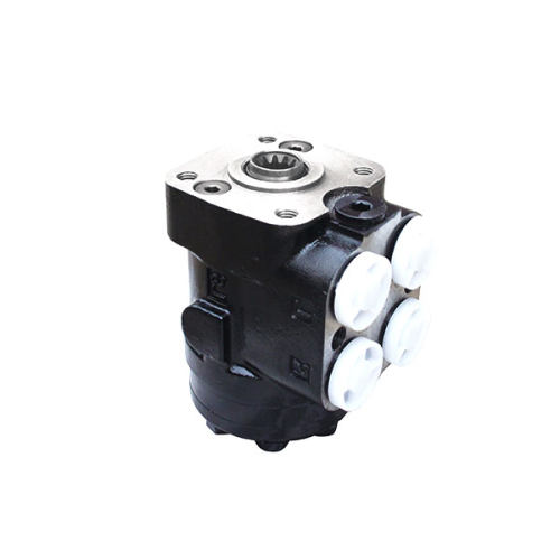

 Hydraulic Steering Unit 101S OSPC Series Fei Yue
 Hydraulic Steering Unit 101S OSPC Series Fei Yue
 Hydraulic Steering Unit 101S OSPC Series Fei Yue
 Hydraulic Steering Unit 101S OSPC Series Fei Yue
 Hydraulic Steering Unit 101S OSPC Series Fei Yue

Hydraulic Steering Unit 101S OSPC Series Fei Yue

Score
Sold: 100 Question And Answer 0

MOQ: 100 PCS

Note: If you have any questions,please contact us

  • 1. Load sensing hydraulic steering control unit is an important element in the load sensing steering system.
  • 2. Together with fixed displacement pump, various displacement pump with constant pressure or load sensing pump(variable displacement pump with flow, pressure joint compensated) supplying oil, it can make up different loading sensing hydraulic steering sy
  • 3. BPBS5 series can be used together with modulary mounting priority valve.
  • 50CC
  • 63CC
  • 80CC
  • 100CC
  • 125CC
  • 160CC
  • 200CC
  • 250CC
  • 280CC
  • 315CC
  • 400CC
XINGTAI FEIYUE HYDRAULIC PARTS FACTORY

XINGTAI FEIYUE HYDRAULIC PARTS FACTORY

Since:

1985

You May Also Like

Product Detail Parameters

Product Name Hydraulic Steering Unit Brand Fei Yue
Condition New Country/Region of Manufacture China
Product NO 101S/OSPC Oil Port G1/2
Material Metal Certification CE
Displacement(CCM) 50/63/80/100/125/160/200/250/280/315/400 Applications Used For New Holland, MF, Case, Fiat, Class, MTZ Etc.

International Standard Number

101S

Product Description




Fei Yue’s hydraulic steering unit have 101S, OSPC, OSPB, HKUS, 060, 101S-5E, 102S, 103S, BZZ-B etc.

 Function: increase the force transmitted from the steering wheel to the steering transmission mechanism and change the force Delivery direction.

Application: widely used in low-speed and heavy-duty vehicles such as agricultural machinery, shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, engineering machinery and mining machinery.

The driver can achieve greater steering force control with a smaller operating force, and the performance is safe and reliable, and the operation is light and flexible.

Product list :fei yue catalogue 2021














101S/OSP TECHNICAL DATA



TYPE

Displacement

(ml/r)

Max.input speed(rpm)

Max.input

Pressure(Mpa)

Max.cont.Back.

Pressure(Mpa)

LS Safety valve pressure(MPa)

Overload valve

pressure(MPa)

Length (mm)Weight(kg)
101S-505010017.52.56~17.512~23.51315.4
101S-636310017.52.56~17.512~23.51335.5
101S-808010017.52.56~17.512~23.51355.6
101S-10010010017.52.56~17.512~23.51385.7
101S-12512510017.52.56~17.512~23.51415.9
101S-16016010017.52.56~17.512~23.51466.0
101S-20020010017.52.56~17.512~23.51516.2
101S-25025010017.52.56~17.512~23.51576.5
101S-2802807517.52.56~17.512~23.51626.6
101S-3153157517.52.56~17.512~23.51676.9
101S-4004007517.52.56~17.512~23.51777.2
