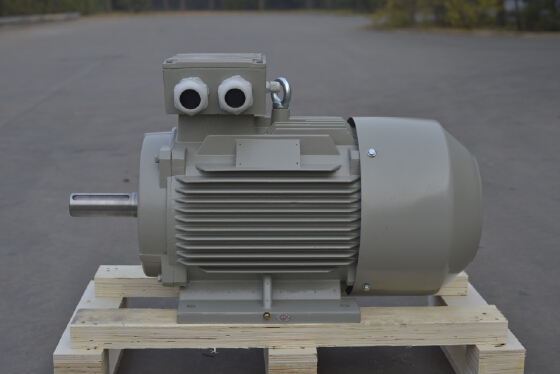

YE4 Series（IP55）Super Ultra High Efficiency 3-Phase Asynchronous Motors
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1.YE3/YE4 -series motor is totally enclosed squirrel-cage rotor ultra high efficiency, super ultra high efficiency three-phase asynchronous motor
- 2.The power rating and assembling dimension of YE3/YE4 -series motor is in according with IEC international standard
- 3.The rated voltage of this Motor is 380 V, rated frequency 50 Hz. The altitude of the motor should not exceed 1000 m;
- 4.The Motor can be derived according to the user's requirements.
- 5.The different voltage, different frequency . Biaxial stretching. Dry (wet) special requirements such as tropical type motor.
- YE4 Series Motor
Shanxi Electric Machinery Manufacturing Co., Ltd
Since:
1952
Product Description
Technical Parameters
Note：The pictures on this page are only applicable to products with Center height of frame less than or equal to 280 mm
Synchronous speed 3000r-min 380V 50Hz
| 2poles | Type | Output kw | Electric Current | Eff % | Power Factor | Locked Torque/ Rared Torque | Max.Torque/ Rared Torque | Locked Current/ Rared torque | Noise dB(A) | Vibration mm/s | Weight kg | |
| YE4-132S1-2 | 5.5 | 10.4 | 2902 | 90.9 | 0.88 | 2 | 2.3 | 9.5 | 79 | 1.3 | 75 | |
| YE4-132S2-2 | 7.5 | 14 | 2902 | 91.7 | 0.89 | 2 | 2.3 | 9.5 | 79 | 1.3 | 81 | |
| YE4-160M1-2 | 11 | 20.3 | 2902 | 92.6 | 0.89 | 2 | 2.3 | 9.5 | 81 | 1.8 | 137 | |
| YE4-160M2-2 | 15 | 27.4 | 2902 | 93.3 | 0.89 | 2 | 2.3 | 9.5 | 81 | 1.8 | 148 | |
| YE4-160L-2 | 18.5 | 33.7 | 2902 | 93.7 | 0.89 | 2 | 2.3 | 9.5 | 81 | 1.8 | 168 | |
| YE4-180M-2 | 22 | 40 | 2942 | 94 | 0.89 | 2 | 2.3 | 9.5 | 83 | 1.8 | 201 | |
| YE4-200L1-2 | 30 | 54.2 | 2942 | 94.5 | 0.89 | 2 | 2.3 | 9 | 84 | 1.8 | 269 | |
| YE4-200L2-2 | 37 | 66.6 | 2952 | 94.8 | 0.89 | 2 | 2.3 | 9 | 84 | 1.8 | 284 | |
| YE4-225M-2 | 45 | 80.9 | 2952 | 95 | 0.89 | 2 | 2.3 | 9 | 86 | 1.8 | 348 | |
| YE4-250M-2 | 55 | 98.5 | 2952 | 95.3 | 0.89 | 2 | 2.3 | 9 | 89 | 1.8 | 396 | |
| YE4-280S-2 | 75 | 133.9 | 2972 | 95.6 | 0.89 | 1.8 | 2.3 | 8.5 | 91 | 1.8 | 603 | |
| YE4-280M-2 | 90 | 160.4 | 2972 | 95.8 | 0.89 | 1.8 | 2.3 | 8.5 | 91 | 1.8 | 650 | |
| YE4-315S-2 | 110 | 193.4 | 2982 | 96 | 0.9 | 1.8 | 2.3 | 8.5 | 92 | 2.3 | 942 | |
| YE4-315M-2 | 132 | 231.6 | 2982 | 96.2 | 0.9 | 1.8 | 2.3 | 8.5 | 92 | 2.3 | 1071 | |
| YE4-315L1-2 | 160 | 277.4 | 2982 | 96.3 | 0.91 | 1.8 | 2.2 | 8.5 | 92 | 2.3 | 1211 | |
| YE4-315L2-2 | 200 | 346 | 2982 | 96.5 | 0.91 | 1.8 | 2.2 | 8.5 | 92 | 2.3 | 1299 | |
| YE4-355M2-2 | 250 | 432.5 | 2987 | 96.5 | 0.91 | 1.6 | 2.2 | 8.5 | 100 | 2.3 | 1948 | |
| YE4-355L2-2 | 315 | 545 | 2987 | 96.5 | 0.91 | 1.6 | 2.2 | 8.5 | 100 | 2.3 | 2168 | |
| YE4-355L3-2 | 355 | 621 | 2987 | 96.5 | 0.9 | 0.9 | 1.8 | 8.6 | 97 | 2.3 | 2684 | |
| YE4-400M2-2 | 400 | 699.8 | 2987 | 96.5 | 0.9 | 0.9 | 1.8 | 8.6 | 97 | 2.3 | 3005 | |
| YE4-400M3-2 | 450 | 787.2 | 2987 | 96.5 | 0.9 | 0.8 | 1.8 | 8.6 | 97 | 2.3 | 3100 | |
| YE4-400L1-2 | 500 | 874.7 | 2992 | 96.5 | 0.9 | 0.8 | 1.8 | 8.6 | 97 | 2.3 | 3200 | |
| YE4-400L2-2 | 560 | 968.9 | 2992 | 96.5 | 0.91 | 0.8 | 1.8 | 8.7 | 97 | 2.3 | 3300 | |
| YE4-4501-2 | 630 | 1090 | 2992 | 96.5 | 0.91 | 0.8 | 1.8 | 8.7 | 97 | 2.3 | 3400 | |
| YE4-4502-2 | 710 | 1228.4 | 2997 | 96.5 | 0.91 | 0.6 | 1.8 | 8 | 97 | 2.3 | 3500 | |
| YE4-4503-2 | 800 | 1384.1 | 2997 | 96.5 | 0.91 | 0.6 | 1.8 | 8 | 97 | 2.3 | 3600 | |
| YE4-4504-2 | 900 | 1557.1 | 2997 | 96.5 | 0.91 | 0.6 | 1.8 | 8 | 97 | 2.3 | 3700 |
Synchronous speed 1500r-min 380V 50Hz
| 4poles | Type | Output kw | Electric Current A | Speed r/min | Eff % | Factor | Locked torque/ Rared torque | Max. Torque/ Rared Torque | Locked Current/ RaredA torque | Noise dB(A) | Vibration mm/s | Weight kg |
| YE4-132S-4 | 5.5 | 11.4 | 1442 | 91.9 | 0.8 | 2 | 2.3 | 9.5 | 71 | 1.3 | 75 | |
| YE4-132M-4 | 7.5 | 15.2 | 1442 | 92.6 | 0.81 | 2 | 2.3 | 9.5 | 71 | 1.3 | 92 | |
| YE4-160M-4 | 11 | 21.6 | 1462 | 93.3 | 0.83 | 2 | 2.3 | 9.5 | 73 | 1.8 | 135 | |
| YE4-160L-4 | 15 | 28.9 | 1462 | 93.9 | 0.84 | 2 | 2.3 | 9.5 | 73 | 1.8 | 159 | |
| YE4-180M-4 | 18.5 | 35.1 | 1472 | 94.2 | 0.85 | 2 | 2.3 | 9.5 | 76 | 1.8 | 195 | |
| YE4-180L-4 | 22 | 41.6 | 1472 | 94.5 | 0.85 | 2 | 2.3 | 9.5 | 76 | 1.8 | 218 | |
| YE4-200L-4 | 30 | 56.5 | 1472 | 94.9 | 0.85 | 2 | 2.3 | 9 | 76 | 1.8 | 284 | |
| YE4-225S-4 | 37 | 68.7 | 1482 | 95.2 | 0.86 | 2 | 2.3 | 9 | 78 | 1.8 | 333 | |
| YE4-225M-4 | 45 | 83.3 | 1482 | 95.4 | 0.86 | 2 | 2.3 | 9 | 78 | 1.8 | 409 | |
| YE4-250M-4 | 55 | 101.5 | 1482 | 95.7 | 0.86 | 2 | 2.3 | 9 | 79 | 1.8 | 427 | |
| YE4-280S-4 | 75 | 136.4 | 1482 | 96 | 0.87 | 2 | 2.3 | 8.5 | 80 | 1.8 | 574 | |
| YE4-280M-4 | 90 | 161.7 | 1482 | 96.1 | 0.88 | 2 | 2.3 | 8.5 | 80 | 1.8 | 655 | |
| YE4-315S-4 | 110 | 195 | 1492 | 96.3 | 0.89 | 1.8 | 2.2 | 8.5 | 88 | 2.3 | 981 | |
| YE4-315M-4 | 132 | 233.8 | 1492 | 96.4 | 0.89 | 1.8 | 2.2 | 8.5 | 88 | 2.3 | 1149 | |
| YE4-315L1-4 | 160 | 279.6 | 1492 | 96.6 | 0.9 | 1.8 | 2.2 | 8.5 | 88 | 2.3 | 1173 | |
| YE4-315L2-4 | 200 | 349.2 | 1492 | 96.7 | 0.9 | 1.8 | 2.2 | 8.5 | 88 | 2.3 | 1288 | |
| YE4-355M2-4 | 250 | 436.4 | 1497 | 96.7 | 0.9 | 1.8 | 2.2 | 8.5 | 95 | 2.3 | 1692 | |
| YE4-355L2-4 | 315 | 549.9 | 1497 | 96.7 | 0.9 | 1.8 | 2.2 | 8.5 | 95 | 2.3 | 1856 | |
| YE4-355L3-4 | 355 | 633.8 | 1497 | 96.7 | 0.88 | 0.9 | 1.8 | 8.5 | 92 | 2.3 | 2143 | |
| YE4-400M2-4 | 400 | 714.2 | 1497 | 96.7 | 0.88 | 0.9 | 1.8 | 8.5 | 92 | 2.3 | 2467 | |
| YE4-400M3-4 | 450 | 803.5 | 1497 | 96.7 | 0.88 | 0.8 | 1.8 | 8.5 | 92 | 2.3 | 2600 | |
| YE4-400L1-4 | 500 | 892.7 | 1502 | 96.7 | 0.88 | 0.8 | 1.8 | 8.5 | 93 | 2.3 | 2700 | |
| YE4-400L2-4 | 560 | 988.6 | 1502 | 96.7 | 0.89 | 0.8 | 1.8 | 8.6 | 93 | 2.3 | 2800 | |
| YE4-4501-4 | 630 | 1112.2 | 1502 | 96.7 | 0.89 | 0.8 | 1.8 | 8.6 | 93 | 2.3 | 2900 | |
| YE4-4502-4 | 710 | 1253.4 | 1507 | 96.7 | 0.89 | 0.6 | 1.8 | 7.8 | 95 | 2.3 | 3000 | |
| YE4-4503-4 | 800 | 1396.6 | 1507 | 96.7 | 0.9 | 0.6 | 1.8 | 7.9 | 95 | 2.3 | 3100 | |
| YE4-4504-4 | 900 | 1571.2 | 1507 | 96.7 | 0.9 | 0.6 | 1.8 | 7.9 | 95 | 2.3 | 3200 |
Synchronous speed 1000r-min 380V 50Hz
6poles | Type | Output kw | Electric Current A | Speed r/min | Eff % | Power Factor | Locked torque/ Rared torque | Max.Torque/ Rared Torque | Locked Current/ Rared torque | Noise dB(A) | Vibration mm/s | Weight kg |
| YE4-132S-6 | 3 | 7.1 | 962 | 88.6 | 0.72 | 2 | 2.1 | 7.5 | 69 | 1.3 | 74 | |
| YE4-132M1-6 | 4 | 9.3 | 962 | 89.5 | 0.73 | 2 | 2.1 | 8 | 69 | 1.3 | 84 | |
| YE4-132M2-6 | 5.5 | 12.6 | 962 | 90.5 | 0.73 | 2 | 2.1 | 8 | 69 | 1.3 | 97 | |
| YE4-160M-6 | 7.5 | 16 | 972 | 91.3 | 0.78 | 2 | 2.1 | 8 | 73 | 1.8 | 134 | |
| YE4-160L-6 | 11 | 22.9 | 972 | 92.3 | 0.79 | 2 | 2.1 | 8.5 | 73 | 1.8 | 159 | |
| YE4-180L-6 | 15 | 30.7 | 972 | 92.9 | 0.8 | 2 | 2.1 | 8.5 | 73 | 1.8 | 212 | |
| YE4-200L1-6 | 18.5 | 37.6 | 972 | 93.4 | 0.8 | 2 | 2.1 | 8.5 | 73 | 1.8 | 256 | |
| YE4-200L2-6 | 22 | 44 | 972 | 93.7 | 0.81 | 2 | 2.1 | 8.5 | 73 | 1.8 | 270 | |
| YE4-225M-6 | 30 | 59 | 992 | 94.2 | 0.82 | 2 | 2.1 | 8.3 | 74 | 1.8 | 352 | |
| YE4-250M-6 | 37 | 71.7 | 992 | 94.5 | 0.83 | 2 | 2.1 | 8.3 | 76 | 1.8 | 405 | |
| YE4-280S-6 | 45 | 84.8 | 992 | 94.8 | 0.85 | 2 | 2 | 8.5 | 78 | 1.8 | 522 | |
| YE4-280M-6 | 55 | 102.2 | 992 | 95.1 | 0.86 | 2 | 2 | 8.5 | 78 | 1.8 | 578 | |
| YE4-315S-6 | 75 | 142.2 | 992 | 95.4 | 0.84 | 1.6 | 2 | 8 | 83 | 2.3 | 960 | |
| YE4-315M-6 | 90 | 168.3 | 992 | 95.6 | 0.85 | 1.6 | 2 | 8 | 83 | 2.3 | 1098 | |
| YE4-315L1-6 | 110 | 205.2 | 992 | 95.8 | 0.85 | 1.6 | 2 | 8 | 83 | 2.3 | 1126 | |
| YE4-315L2-6 | 132 | 242.9 | 992 | 96 | 0.86 | 1.6 | 2 | 8 | 83 | 2.3 | 1228 | |
| YE4-355M1-6 | 160 | 293.8 | 994 | 96.2 | 0.86 | 1.6 | 2 | 8 | 85 | 2.3 | 1561 | |
| YE4-355M3-6 | 200 | 366.9 | 994 | 96.3 | 0.86 | 1.6 | 2 | 8 | 85 | 2.3 | 1665 | |
| YE4-355L2-6 | 250 | 457.7 | 994 | 96.5 | 0.86 | 1.6 | 2 | 8 | 85 | 2.3 | 1771 | |
| YE4-355L4-6 | 315 | 604.2 | 994 | 96.6 | 0.82 | 0.9 | 1.8 | 7.9 | 91 | 2.3 | 1763 | |
| YE4-400M3-6 | 355 | 680.9 | 994 | 96.6 | 0.82 | 0.9 | 1.8 | 7.9 | 91 | 2.3 | 1900 | |
| YE4-400L1-6 | 400 | 758 | 996 | 96.6 | 0.83 | 0.9 | 1.8 | 8 | 92 | 2.3 | 2000 | |
| YE4-400L2-6 | 450 | 852.7 | 996 | 96.6 | 0.83 | 0.8 | 1.8 | 8 | 92 | 2.3 | 2100 | |
| YE4-4501-6 | 500 | 947.5 | 996 | 96.6 | 0.83 | 0.8 | 1.8 | 8 | 92 | 2.3 | 2200 | |
| YE4-4502-6 | 560 | 1048.5 | 998 | 96.6 | 0.84 | 0.8 | 1.8 | 8.1 | 95 | 2.3 | 2300 | |
| YE4-4503-6 | 630 | 1179.6 | 998 | 96.6 | 0.84 | 0.8 | 1.8 | 8.1 | 95 | 2.3 | 2400 | |
| YE4-4504-6 | 710 | 1329.4 | 998 | 96.6 | 0.84 | 0.6 | 1.8 | 7.4 | 95 | 2.3 | 2500 |
Synchronous speed 750r-min 380V 50Hz
| 8poles | Type | Output kw | Electric Current | Speed r/min | Eff % | Power Factor | Locked Torque /Rared Torque | Max.Torque/ Rared Torque | Locked Current/ Rared torque | Noise dB(A) | Vibration mm/s | Weight kg |
| YE4-132S-8 | 2.2 | 5.7 | 712 | 84.5 | 0.7 | 1.8 | 2 | 7.5 | 64 | 1.3 | 78 | |
| YE4-132M-8 | 3 | 7.6 | 712 | 85.9 | 0.7 | 1.8 | 2 | 7.8 | 64 | 1.3 | 95 | |
| YE4-160M1-8 | 4 | 9.6 | 722 | 87.1 | 0.73 | 1.8 | 2 | 7.9 | 68 | 1.8 | 127 | |
| YE4-160M2-8 | 5.5 | 12.8 | 722 | 88.3 | 0.74 | 1.8 | 2 | 8.1 | 68 | 1.8 | 139 | |
| YE4-160L-8 | 7.5 | 17.2 | 732 | 89.3 | 0.74 | 1.8 | 2 | 7.8 | 68 | 1.8 | 175 | |
| YE4-180L-8 | 11 | 25 | 732 | 90.4 | 0.74 | 1.8 | 2 | 7.9 | 70 | 1.8 | 193 | |
| YE4-200L-8 | 15 | 33.3 | 732 | 91.2 | 0.75 | 1.8 | 2 | 8 | 73 | 1.8 | 275 | |
| YE4-225S-8 | 18.5 | 40.9 | 732 | 91.7 | 0.75 | 1.8 | 2 | 8.1 | 73 | 1.8 | 292 | |
| YE4-225M-8 | 22 | 47.8 | 732 | 92.1 | 0.76 | 1.8 | 2 | 8.3 | 73 | 1.8 | 320 | |
| YE4-250M-8 | 30 | 63.9 | 732 | 92.7 | 0.77 | 1.8 | 2 | 7.9 | 75 | 1.8 | 445 | |
| YE4-280S-8 | 37 | 77.4 | 732 | 93.1 | 0.78 | 1.8 | 2 | 7.9 | 76 | 1.8 | 571 | |
| YE4-280M-8 | 45 | 93.9 | 732 | 93.4 | 0.78 | 1.8 | 2 | 7.9 | 76 | 1.8 | 650 | |
| YE4-315S-8 | 55 | 111.5 | 742 | 93.7 | 0.8 | 1.6 | 2 | 8.2 | 82 | 2.3 | 1089 | |
| YE4-315M-8 | 75 | 151.2 | 742 | 94.2 | 0.8 | 1.6 | 2 | 7.6 | 82 | 2.3 | 1210 | |
| YE4-315L1-8 | 90 | 178.8 | 742 | 94.4 | 0.81 | 1.6 | 2 | 7.7 | 82 | 2.3 | 1276 | |
| YE4-315L2-8 | 110 | 217.9 | 742 | 94.7 | 0.81 | 1.6 | 2 | 7.7 | 82 | 2.3 | 1352 | |
| YE4-355M1-8 | 132 | 260.9 | 747 | 94.9 | 0.81 | 1.6 | 2 | 7.7 | 89 | 2.3 | 2420 | |
| YE4-355M2-8 | 160 | 311.7 | 747 | 95.1 | 0.82 | 1.6 | 2 | 7.7 | 89 | 2.3 | 2601 | |
| YE4-355L-8 | 200 | 388.4 | 747 | 95.4 | 0.82 | 1.6 | 2 | 7.8 | 89 | 2.3 | 2722 | |
| YE4-400M2-8 | 250 | 497.7 | 747 | 95.4 | 0.8 | 1.1 | 1.8 | 7.6 | 89 | 2.3 | 2800 | |
| YE4-400L1-8 | 315 | 627.1 | 747 | 95.4 | 0.8 | 0.9 | 1.8 | 7.6 | 89 | 2.3 | 2900 | |
| YE4-400L2-8 | 355 | 706.7 | 752 | 95.4 | 0.8 | 0.9 | 1.8 | 7.6 | 91 | 2.3 | 3000 | |
| YE4-4501-8 | 400 | 796.3 | 752 | 95.4 | 0.8 | 0.9 | 1.8 | 7.6 | 91 | 2.3 | 3100 | |
| YE4-4502-8 | 450 | 874 | 752 | 95.4 | 0.82 | 0.8 | 1.8 | 7.8 | 93 | 2.3 | 3200 | |
| YE4-4503-8 | 500 | 971.1 | 757 | 95.4 | 0.82 | 0.8 | 1.8 | 7.8 | 93 | 2.3 | 3300 | |
| YE4-4504-8 | 560 | 1087.6 | 757 | 95.4 | 0.82 | 0.8 | 1.8 | 7.8 | 93 | 2.3 | 3400 |
| Frame | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||
| A | B | C | D | E | F | Ga | H | Kb | AB | AC | AD | HD | L | ||||||||||
| 132S | 2〜6 | 216 | 140 | 89 | 12 | 38 | +0.018 +0.002 | 80 | ±0.37 | 10 | 0-0.036 | 33 | 0-0.20 | 132 | 0- 0.5 | 12 | add 0.43 | Φ1.0 Ⓜ | 270 | 275 | 210 | 345 | 510 |
| 132M | 178 | 10 | 560 | ||||||||||||||||||||
| 160M | 254 | 210 | 108 | ±3.0 | 42 | +0.018 | 110 | ±0.43 | 12 | 0-0.043 | 37 | 160 | 14.5 | Φ1.2Ⓜ | 320 | 330 | 255 | 420 | 670 | ||||
| 160L | 254 | +0.002 | 700 | ||||||||||||||||||||
| 180M | 279 | 241 | 121 | 48 | +0.018 +0.002 | 14 | 42.5 | 180 | 355 | 380 | 280 | 455 | 740 | ||||||||||
| 180L | 279 | 790 | |||||||||||||||||||||
| 200L | 318 | 305 | 133 | 55 | +0. 030 +0. 011 | 16 | 49 | 200 | 18.5 | +0.052 | 395 | 420 | 305 | 505 | |||||||||
| 225S | 4 | 356 | 286 | 149 | ±4.0 | 60 | 140 | ±0.50 | 18 | 53 | 225 | 435 | 470 | 335 | 560 | 830 | |||||||
| 2 | 311 | 55 | 110 | ±0.43 | 16 | 49 | 825 | ||||||||||||||||
| 225M | 4、6 | 311 | 60 | 140 | ±0.50 | 18 | 53 | 855 | |||||||||||||||
| 250M | 2 | 406 | 349 | 168 | 250 | 24 | Φ2.0Ⓜ | 490 | 510 | 370 | 615 | 915 | |||||||||||
| 4、6 | 65 | 58 | |||||||||||||||||||||
| 280S | 2 | 457 | 368 | 190 | 280 | 0- 1.0 | 550 | 580 | 410 | 680 | 985 | ||||||||||||
| 4、6 | 75 | 20 | 0-0.052 | 67.5 | |||||||||||||||||||
| 280M | 7 | 419 | 65 | 18 | 0-0.043 | 58 | 1035 | ||||||||||||||||
| 4、6 | 75 | 20 | 0-0.052 | 67 5 | |||||||||||||||||||
| 315S | 7 | 508 | 406 | 216 | 65 | 18 | 58 | 315 | 28 | 635 | 645 | 530 | 845 | 1180 | |||||||||
| 4、6 | 80 | 170 | 22 | 0-0.043 | 71 | 1290 | |||||||||||||||||
| 315M | 2 | 457 | 65 | 140 | 18 | 58 | 1210 | ||||||||||||||||
| 4、6 | 80 | 170 | 22 | 71 | 1320 | ||||||||||||||||||
| 0-0.052 | |||||||||||||||||||||||
| 315L | 2 | 508 | 65 | 140 | 18 | 0-0.043 | 58 | 1210 | |||||||||||||||
| 4、6 | 85 | 170 | 22 | 0-0 052 | 71 | 1320 | |||||||||||||||||
| 355M | 2 | 610 | 560 | 254 | 75 | 140 | 20 | 67.5 | 355 | 730 | 710 | 655 | 1010 | 1500 | |||||||||
| 4、6 | 95 | +0.035 | 170 | 25 | 86 | 1530 | |||||||||||||||||
| +0.013 | |||||||||||||||||||||||
| 355L | 2 | 630 | 75 | +0.030 , +0.011 | 140 | 20 | 67.5 | 1500 | |||||||||||||||
| 4、6 | 95 | 170 | ±0.57 | 25 | 86 | 1530 | |||||||||||||||||
| 400M | 4~8 | 686 | 280 | 110 | +0 .035 +0.013 | 210 | 28 | 100 | 400 | 35 | +0.062 | 806 | 856 | 1078 | 1730 | ||||||||
| 400L | 710 | 120 | 32 | 0-0.062 | 109 | 1920 | |||||||||||||||||
| 450 | 800 | 1000 | 130 | +0.040, +0.015 | 250 | 119 | 450 | 42 | Φ2.5Ⓜ | 990 | 1075 | 1409 | 2500 | ||||||||||
| Frame | Flange | poles | Installation dimension and folerance | Overall dimensions | ||||||||||||||||||||||||||||||||
| A | B | c | D | E | F | Ga | H | K | M | N | A | Rd | S | T | holes | AB | AC | AD | HD | L | ||||||||||||||||
| 132S | FF265 | 2~6 | 216 | 140 | 89 | ±2.0 | 38 | +0.018； | 80 | ±0.37 | 10 | 0-0.036 | 33 | 0- 0.2 | 132 | 0 -0.5 | 12 | 0.43 | Φ1.0 Ⓜ | 265 | 230 | 0.016 ; 0.013 | 300 | 0 | ±2.0 | 14.5 | 0.43 | Φ1.2 Ⓜ | 4 | 0- 0.12 | 4 | 270 | 275 | 210 | 345 | 510 |
| 132M | 178 | +0.002 | 560 | |||||||||||||||||||||||||||||||||
| 160M | FF330 | 254 | 210 | 108 | ±3.0 | 42 | 110 | ±0.43 | 12 | 0-0.043 | 37 | 160 | 14.5 | Φ1.2 Ⓜ | 300 | 250 | 350 | ±3.0 | 18.5 | 0.52 | 5 | 320 | 330 | 255 | 420 | 670 | ||||||||||
| 160L | 254 | 700 | ||||||||||||||||||||||||||||||||||
| 180M | 279 | 241 | 121 | 48 | 14 | 42.5 | 180 | 355 | 380 | 280 | 455 | 740 | ||||||||||||||||||||||||
| 180L | 279 | 790 | ||||||||||||||||||||||||||||||||||
| 200L | FF350 | 318 | 308 | 133 | 55 | +0.030; +0.011 | 16 | 49 | 200 | 18.5 | 0.52 | 350 | 300 | ±0.016 0.013 | 400 | 395 | 420 | 305 | 505 | |||||||||||||||||
| 225S | FF400 | 4 | 356 | 286 | 149 | ±4.0 | 60 | 140 | ±0.50 | 18 | 53 | 225 | 400 | 350 | ±0.018 | 450 | ±4.0 | 8 | 435 | 470 | 335 | 560 | 830 | |||||||||||||
| 225M | 2 | 311 | 55 | 110 | ±0.43 | 16 | 49 | 825 | ||||||||||||||||||||||||||||
| 4、6 | 60 | 140 | ±0.50 | 18 | 53 | 855 | ||||||||||||||||||||||||||||||
| 250M | FF500 | 2 | 406 | 349 | 168 | 250 | 24 | Φ2.0 Ⓜ | 500 | 450 | ±0.020 | 550 | 490 | 510 | 370 | 615 | 915 | |||||||||||||||||||
| 4、6 | 65 | 58 | ||||||||||||||||||||||||||||||||||
| 280S | 2 | 457 | 368 | 190 | 280 | 0 -1.0 | 550 | 580 | 410 | 680 | 985 | |||||||||||||||||||||||||
| 4、6 | 75 | 20 | 0.-0.052 | 67.5 | ||||||||||||||||||||||||||||||||
| 280M | 2 | 419 | 65 | 18 | 0-0.043 | 58 | 1035 | |||||||||||||||||||||||||||||
| 0.-0.052 | ||||||||||||||||||||||||||||||||||||
| 4、6 | 75 | 20 | 71 | |||||||||||||||||||||||||||||||||
| 0-0.043 | ||||||||||||||||||||||||||||||||||||
| 315S | FF600 | 2 | 508 | 406 | 216 | 65 | 18 | 0.-0.052 | 67.5 | 315 | 28 | 600 | 550 | ±0.022 | 660 | 24 | Φ2.0 Ⓜ | 6 | 0- 0.15 | 635 | 645 | 530 | 845 | 1180 | ||||||||||||
| 4、6 | 80 | 170 | 22 | 71 | 1290 | |||||||||||||||||||||||||||||||
| 315M | 2 | 457 | 65 | 140 | 18 | 58 | 1210 | |||||||||||||||||||||||||||||
| 4 | 80 | 170 | ±.57 | 22 | 71 | 1320 | ||||||||||||||||||||||||||||||
| 315L | 2 | 508 | 65 | 140 | ±0.50 | 18 | 0-0.052 | 58 | 1210 | |||||||||||||||||||||||||||
| 4 | 80 | 170 | ±0.57 | 22 | 71 | 1320 | ||||||||||||||||||||||||||||||
| 355M | FF740 | 2 | 610 | 560 | 254 | 75 | 140 | ±0.50 | 20 | 67 5 | 355 | 740 | 680 | ±0.025 | 800 | 730 | 710 | 655 | 1010 | 1500 | ||||||||||||||||
| 4 | 95 | +0.035; -0.013 | 170 | ±0.57 | 25 | 86 | 1530 | |||||||||||||||||||||||||||||
| 355L | 2 | 630 | 75 | +0.030; -0.011 | 140 | ±0.50 | 20 | 67.5 | 1500 | |||||||||||||||||||||||||||
| 4、6 | 95 | +0.035; -0.013 | 170 | ±0.57 | 25 | 86 | 1530 | |||||||||||||||||||||||||||||
| 400M | 无 | 4~8 | 686 | 280 | 110 | 210 | 28 | 100 | 400 | 35 | 0.62 | 940 | 880 | ±0.028 | 1000 | 28 | 0- 0.12 | 606 | 1000 | 1078 | 1911 | |||||||||||||||
| 40OL | 710 | 120 | 32 | 0-0.062 | 109 | |||||||||||||||||||||||||||||||
| 450 | 800 | 1000 | 130 | +0.040; +0.075 | 250 | 119 | 450 | 42 | 1080 | 1000 | 1150 | 990 | 1150 | 1409 | 2500 | |||||||||||||||||||||
| Installation dimension and tolerance | Overall dimensions | |||||||||||||||||||||||||
| Frame | Flange | poles | D | E | F | Ga | M | N | Pc | Rd | Sb | T | holes | AC | AD | HF | L | |||||||||
| 180M | FF300 | 2~6 | 48 | +0.018 +0.002 | 110 | ±0.43 | 14 | 0-0.043 | 42.5 | 0-0.20 | 300 | 250 | ±0.016 -0.013 | 350 | 0 | ±3.0 | 18.5 | 0.52 | Φ1.2 Ⓜ | 5 | 0-0.12 | 4 | 380 | 280 | 500 | 800 |
| 180L | 850 | |||||||||||||||||||||||||
| 200L | FF350 | 55 | +0.030; -0.011 | 16 | 49 | 350 | 300 | ±0.016 | 400 | 420 | 305 | 550 | 860 | |||||||||||||
| 225S | 4 | 60 | 140 | ±0.50 | 18 | 53 | 400 | 350 | ±0.018 | 450 | ±4.0 | 8 | 470 | 335 | 610 | 920 | ||||||||||
| 225M | FF400 | 2 | 55 | 110 | ±0.43 | 16 | 49 | 915 | ||||||||||||||||||
| 4、6 | 60 | ±0.50 | 18 | 53 | 945 | |||||||||||||||||||||
| 250M | 2 | 500 | 450 | ±0.20 | 550 | 510 | 370 | 650 | 1020 | |||||||||||||||||
| 4, 6 | 65 | 58 | ||||||||||||||||||||||||
| 280S | FF500 | 2 | 140 | 580 | 410 | 720 | 1110 | |||||||||||||||||||
| 4、6 | 75 | 20 | 0-0.052 | 67.5 | ||||||||||||||||||||||
| 280M | 2 | 65 | 18 | 0-0.043 | 58 | 1150 | ||||||||||||||||||||
| 4、6 | 75 | 20 | 0-0.052 | 67.5 | ||||||||||||||||||||||
| 315S | 2 | 65 | 18 | 0-0.043 | 58 | 600 | 550 | ±0.022 | 660 | 24 | Φ2.0 Ⓜ | 6 | 0-0.15 | 645 | 530 | 900 | 1300 | |||||||||
| 4. 6 | 80 | 22 | 0-0.052 | 71 | 0-0.16 | 1420 | ||||||||||||||||||||
| 315M | FF600 | 2 | 65 | 18 | 0-0.043 | 58 | 0-0.17 | 1330 | ||||||||||||||||||
| 4、6 | 80 | 170 | 22 | 0-0.052 | 71 | 0-0.18 | 1450 | |||||||||||||||||||
| 315L | 2 | 65 | 140 | 18 | 0-0.043 | 58 | 0-0.19 | 1330 | ||||||||||||||||||
| 4、6 | 80 | 170 | 22 | 0-0.052 | 71 | 0-0.20 | 1450 | |||||||||||||||||||
| 355M | 2 | 75 | 140 | 20 | 67.5 | 740 | 680 | ±0.025 | 800 | 0-0.21 | 710 | 655 | 1010 | 1640 | ||||||||||||
| FF740 | 4、6 | 95 | +0.035 -0.013 | 170 | 25 | 86 | 0-0.22 | 1670 | ||||||||||||||||||
| 355L | 2 | 75 | +0030 -0 011 | 140 | 20 | 67.5 | 0-0.23 | 1640 | ||||||||||||||||||
| 4, 6 | 95 | +0.035 -0.013 | 170 | 25 | 86 | 0-0.24 | 1670 | |||||||||||||||||||
| 400M | 4~8 | 110 | 210 | 28 | 0-0.052 | 100 | 940 | 880 | ±0.028 | 1000 | 28 | 0-0.12 | 1000 | 1078 | 2200 | |||||||||||
| 400L | 4~8 | 120 | ±0.57 | 32 | 0-0.062 | 109 | ||||||||||||||||||||
| 450 | 4~8 | 130 | +0.040 +0.015 | 250 | 119 | 1080 | 1000 | 1150 | 1150 | 1409 | 2800 | |||||||||||||||
| Frame | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||||||
| Flange | poles | D | E | F | Ga | M | N | J | Rd | Sb | T | holes | AC | AD | HF | L | ||||||||||
| 132S | FF265 | 2~6 | 38 | +0.018 -0.002 | 80 | ±0.37 | 10 | 0 -0.036 | 33 | 0 -0.20 | 265 | 230 | 0.016；0.013 | 300 | 0 | ±2.0 | 14.5 | add 0.43 | Φ1.2 Ⓜ | 4 | 0 -0.12 | 4 | 275 | 210 | 315 | 510 |
| 132M | 560 | |||||||||||||||||||||||||
| 160M | FF300 | 42 | 110 | ±0.43 | 12 | 0-0.043 | 37 | 300 | 250 | 350 | ±3.0 | 18.5 | add 0.52 | 5 | 330 | 255 | 385 | 670 | ||||||||
| 160L | 700 | |||||||||||||||||||||||||
| 180M | 48 | 14 | 425 | 380 | 280 | 430 | 740 | |||||||||||||||||||
| 180L | 790 | |||||||||||||||||||||||||
| 200L | FF350 | 55 | +0.030 -0.011 | 16 | 49 | 350 | 300 | ±0.016 | 400 | 420 | 305 | 480 | ||||||||||||||
| 225S | FF400 | 4 | 60 | 140 | ±0.50 | 18 | 53 | 400 | 350 | ±0.018 | 450 | ±4.0 | 8 | 470 | 335 | 535 | 830 | |||||||||
| 225M | 2 | 55 | 110 | ±0.43 | 16 | 49 | 825 | |||||||||||||||||||
| 4、6 | 60 | 140 | ±0.50 | 18 | 53 | 855 | ||||||||||||||||||||
| 250M | FF500 | 2 | 500 | 450 | ±0.020 | 550 | 510 | 370 | 595 | 915 | ||||||||||||||||
| 4、6 | 65 | 58 | ||||||||||||||||||||||||
| 280S | 2 | 580 | 410 | 650 | 985 | |||||||||||||||||||||
| 4、6 | 75 | 20 | 0-0.052 | 67.5 | ||||||||||||||||||||||
| 280M | 2 | 65 | 18 | 0-0.043 | 58 | 1035 | ||||||||||||||||||||
| 4、6 | 75 | 20 | 0-0.052 | 67.5 | ||||||||||||||||||||||
People Who Viewed This Also Viewed
-
YR Series(IP23) Is Protected Type Wound Rotor Three-Phase Asynchronous Electromotor
- Score:
- MOQ: 20 PCS
- Sold: 0 PCS
- Score:
