Suction Type Stoner Machine
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1.Unique selection chamber to separate stones from grain,especially errective for brown rice.
- 2. Unique sieve structure to save blowing rate.
- 3. Negative-pressure air suction to prevent dust from escaping the machine.
- Suction Type Stoner Machine
Hunan Chenzhou Grain and Oil Machinery Co., Ltd.
Since:
1967
Product Description
This suction type paddy destoner urges the grains to separate from fixed gravels based on different characteristics of specific gravity and suspension speed of grain and gravel.
Mixed gravel and other heavy impurities are at the lower layer and moves towards the stone discharge end with the action of stoning plate that make directional tilt reciprocation movement; the grains floating at the upper lower roll towards the discharge end under the action of self-gravity thus separate the mixed gravels from the grains.
Main technical parameter
Model | TQSX85B | TQSX100B | TQSX125A | TQSX168 |
Capacity | 3.5-4.5t/h | 5-6.5t/h | 7-8.5t/h | 10-12t/h |
Power | 0.75KW | 0.75KW | 1.1KW | 1.5KW |
Air Volume |
3200-3400m³ | 3800-4100m³ | 4800-5200m³ | 7500-7800m³ |
Weight | 340KG | 380KG | 400KG | 510KG |
Inner resistance | 40-50mmH2O | 40-50mmH2O | 40-50mmH2O | 40-50mmH2O |
Dimension (LxWxH)mm | 1520X1050X2200 | 1520X1190X2200 | 1520X1380X2200 | 1550X1830X2370 |

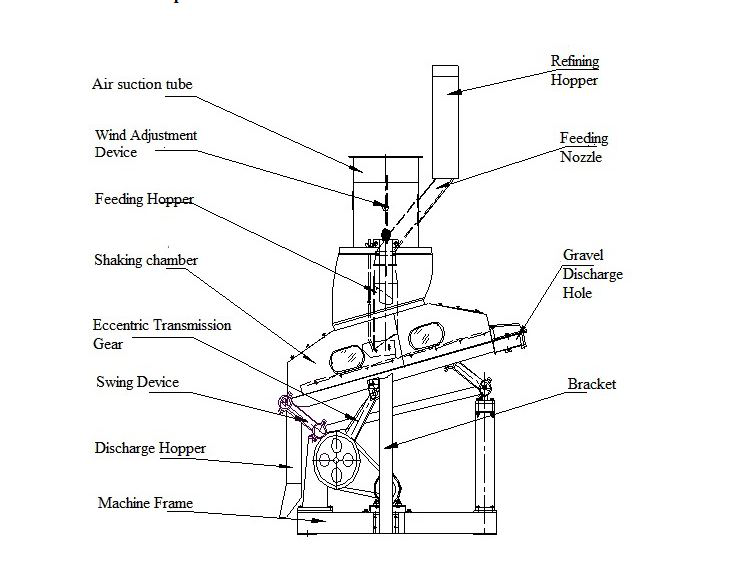

![Suction Type Stoner Machine.png](/ueditor/php/upload/image/20211024/1635078077405447.png)

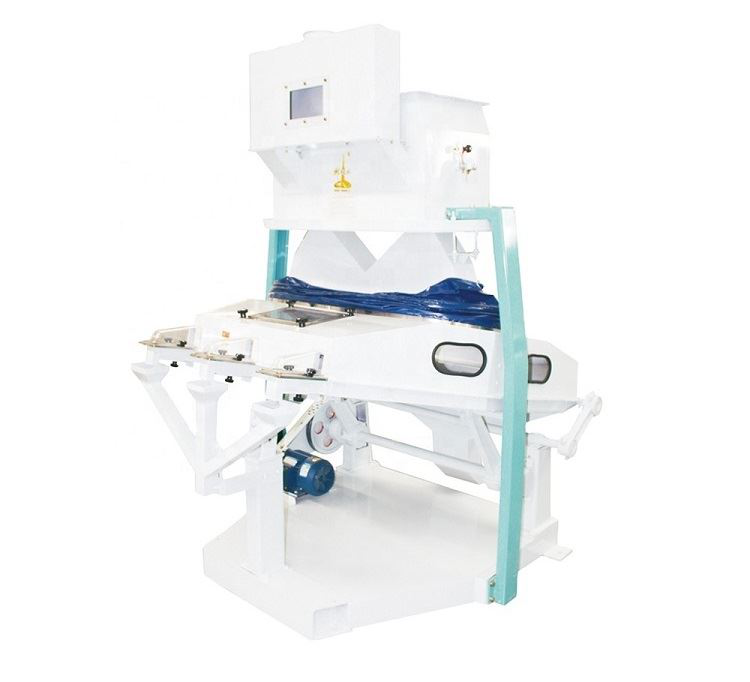

![Suction Type Stoner Machine.png](/ueditor/php/upload/image/20211024/1635078092246242.png)

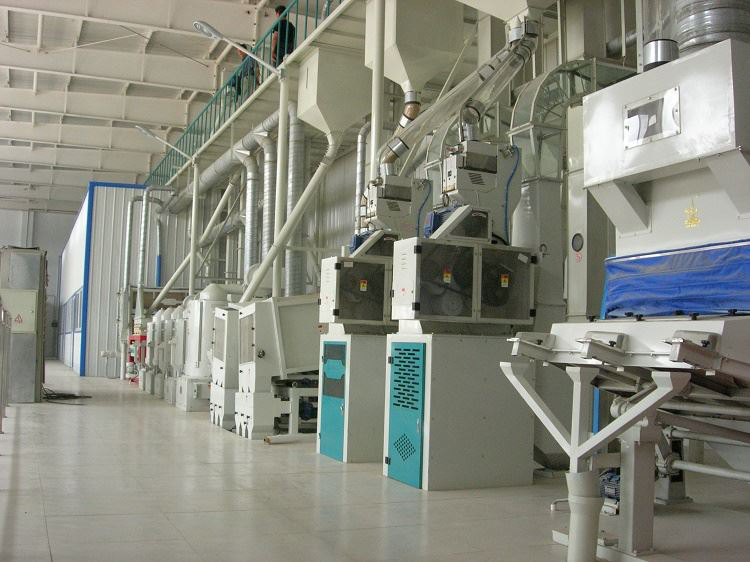

![Suction Type Stoner Machine.png](/ueditor/php/upload/image/20211024/1635078105485652.png)
