Pneumatic Husker Machine
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1. Automatic controls the motion sequence of equipment to realize tightening rollers when paddy feeding and loosening it when no feeding, it is convenience in operation.
- 2. Lineal control of tightening pressure between rolls with barometer, digital-regulated display of feeding volume, it is easy and simple in adjustment.
- 3.Use color sorter vibrating feeding technology, long feeding chute enable, can get big capacity ,low broken, high efficiency.
- 4. Triple-supported prop structure with smooth transmission and stable performance
- MLGQ25C
- MLGQ36
- MLGQ51
Hunan Chenzhou Grain and Oil Machinery Co., Ltd.
Since:
1967
Product Description

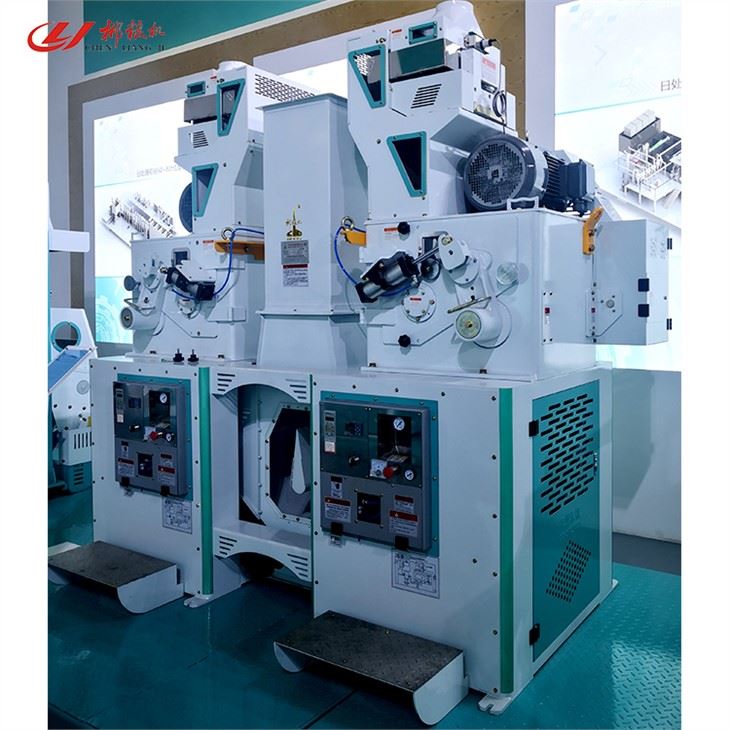

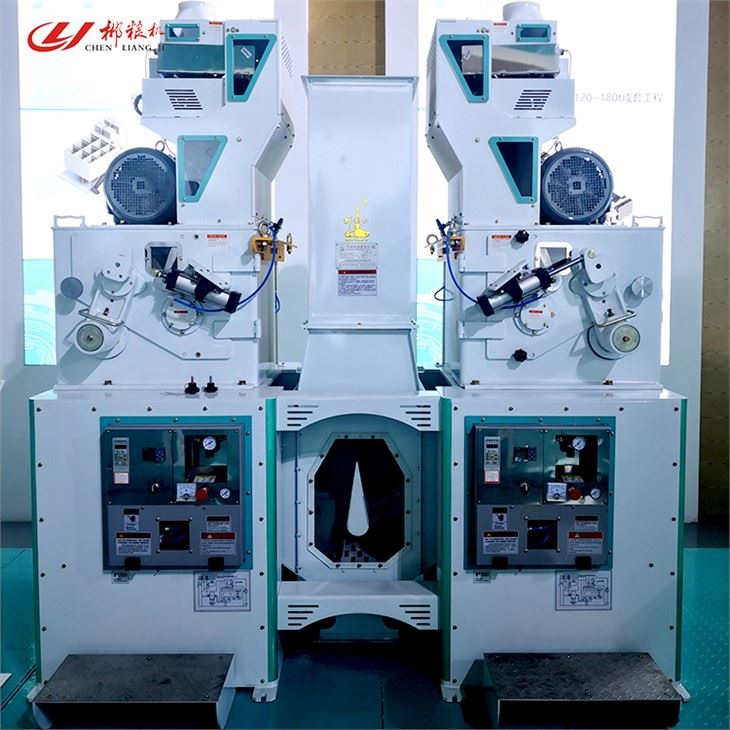

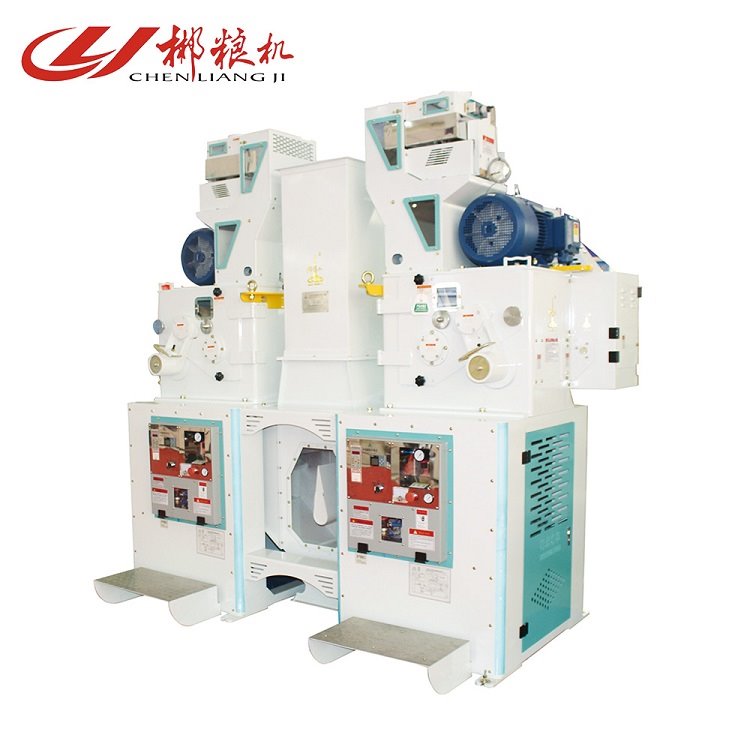

This double head husker machine is completely automatic controlling design. Husker aspiration device adopts conventional vertical suction channels; It adopts vibratory feeding system of high flow and stale feeding ability. The capacity of the double head husker machine could be digitally adjusted; High shelling rate because the long dripping plate We adopt double side synchronous belt to simplify the driven system and improve the driven efficiently at the same time. Thus the machine consumes less power and run more stably.
Main technical parameter
| Model | MLGQ25C | MLGQ36 | MLGQ51 | |
Capacity | Medium long grain rice | 3-5t/h | 5-6 t/h | 6-8t/h |
| Short grain rice | 5-6t/h | 6-8 t/h | 8-10t/h | |
| Power | 7.5 KW | 11 KW | 15 KW | |
| Air Volume | 3400-3700 m3/h | 4000-4500 m3/h | 5000-5500m3/h | |
| Rubber roller size (mm) | 254x254 | 225x356 | 254x508 | |
| Weight | 900kg | 1000kg | 1300kg | |
| Dimension(L x W x H) | 1620x1340x2410 | 1620x1350x2410 | 1690x1520x2500 | |
| Model | MLGQ25C x 2 | MLGQ36 x 2 | MLGQ51 x 2 | |
Capacity | Medium long grain rice | 7-8 t/h | 10-12 t/h | 12-16t/h |
| Short grain rice | 8-10t/h | 12-14 t/h | 16-20t/h | |
| Power | 7.5 KWx2 | 11 KW x2 | 15 KW x 2 | |
| Air Volume | 5500-6000 m3/h | 6000-6500 m3/h | 7000-8000m3/h | |
| Rubber roller size (mm) | 254x254 | 225x356 | 254x508 | |
| Weight | 1900kg | 2000kg | 2600kg | |
| Dimension(L x W x H) | 2580x1350x2410 | 2580x1350x2410 | 2740x1520x2500 | |
