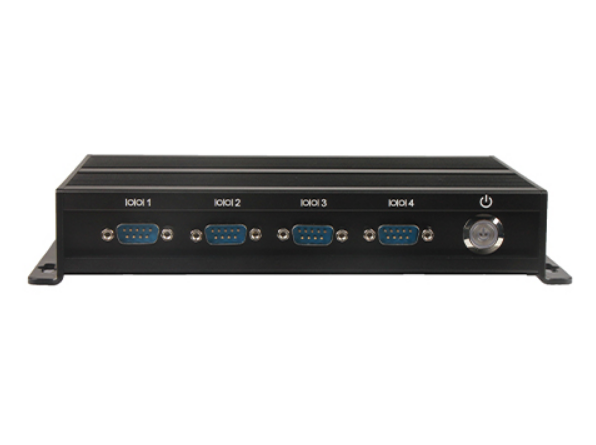

Miniature Industrial Computer PC-GS3051A
MOQ: 100 PCS
Note: If you have any questions,please contact us
- Intel ® J1900 2.0 GHz low-power processor
- 4*USB+4*RS232 port
- Standard 2GB, up to 16GB
- Dual display 1*VGA+1*HDMI
- Fanless sealed /Anti-dust design
- PC-GS3051A
Shenzhen Geshem Technology Co., LTD
Since:
2008
Product Description
Performance
Chipset: Intel ® Bay-trail J1900
RAM: 2GB ,up to 16GB
Hardware Monitor: Voltage CPU, Temperature Monitoring
Watchdog Timer: 0-255 sec by software
Storage: SSD
Power
Power Supply: 9-24V DC(9-36V DC optional)
O/S
O/S: Windows 7/10、Linux
I/O Port
USB: 3*USB 2.0+1*USB 3.0
COM: 4*RS232(1-2*RS485/RS422 optional)
Ethernet: 2*Intel 1000Mbps
Audio: 1*Line-out+1*Mic-in
Display: 1*VGA +1*HDMI
Expansion: 1*Mini PCIe
Environmental
Anti-vibration: 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration
Anti-shock: 10g acceleration, 11ms duration
Reliability: MTBF≥5000h; MTTR≤0.5h
Operating Temperature: -25℃～60℃ with air flow
Storage Temperature: -40℃～70℃
Operating Humidity: 95% @40℃, non-condensing
Mechanical
Dimensions: 208mm(L)x154mm(W)x37mm(H)
Material: Al-alloy, Fanless Design
Weight: 1.1Kg/2.0Kg(NET/Gross)
Color: Black
