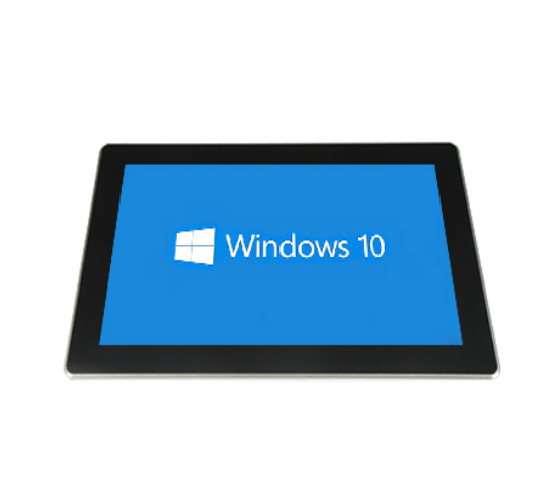

Industrial Tablet Industrial Panel PC TQ15-51AC/TQ15-7XAC
Industrial Tablet Industrial Panel PC TQ15-51AC/TQ15-7XAC
Industrial Tablet Industrial Panel PC TQ15-51AC/TQ15-7XAC

Industrial Tablet Industrial Panel PC TQ15-51AC/TQ15-7XAC

Score
Sold: 0 Question And Answer 0

MOQ: 100 PCS

Note: If you have any questions,please contact us

  • 15.6" industrial display, Multi-Point
  • Capacitive touch Screen / Front Panel IP65
  • Chipset:Intel ® Celeron J1900/3855U/3865U/Core I3/I5/I7
  • Provide 4*USB+6*COM
  • Standard DDR3/DDR4 RAM, up to 16GB
  • Provide 2*GbE LAN RJ45 1000M
  • TQ15-51AC
Shenzhen Geshem Technology Co., LTD

Shenzhen Geshem Technology Co., LTD

Since:

2008

You May Also Like

Product Detail Parameters

Screen 15.6" TFT LCD Resolution 1920*1080
Brightness 300cd/m² Contrast 800:1
Touchscreen Multi-Point Capacitive touch

Product Description

Performance

Chipset: Intel® Celeron J1900/3855U/3865U/Core I3/I5/I7

RAM: J1900 Standard 2GB DDR3, up to 8GB, 3855U/3865U/Core i3/i5/i7 Standard 2GB DDR4, up to 16GB

Hardware Monitor: Monitors voltage, CPU, TEMP

Watchdog Timer: 0-255 sec by software

Storage: SSD 64GB up to 512GB



Power

Power Supply: 9-24V DC(Standard 12V/5A adaptor, 9-36V DC optional)



O/S

O/S: Windows 10、Linux (J1900 support Win7)



I/O Port

USB: J1900: 3*USB2.0+1*USB3.0, 3855U/3865U/Core 6th/7th: 4*USB 3.0

Ethernet: 2*GbE LAN RJ45 1000M

COM: 6*RS232 (1~2*RS485/RS422 optional)

Audio: 1*Line-out+1*Mic

Display: 1*VGA, 1*HDMI

MiniPCIe: 1*MiniPCIe(WIFI/BT/3G/4G optional)

GPIO: 1*4 in/4 out



Environmental

Anti-vibration: 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration

Anti-shock: 10g acceleration, 11ms duration

IP Level: Front panel IP65

Reliability: MTBF≥5000h; MTTR≤0.5h

Operating Temperature: 0℃~50℃ with air flow

Storage Temperature: -30℃~70℃

Operating Humidity: 95% @40℃, non-condensing



Mechanical

Dimensions: 406.2mm(L)*255.6mm(W)*52.3mm(H)

Mounting size: VESA mounting: 75*75mm/100*100mm; Embedded mounting: 396mm*245mm

Material: Fanless High-strength and elegant Al-alloy panel

Weight: 3.57kg/4.77kg(NET/Gross)

Color: Silver
