HSSD8 Directional Control Valves Construction Machinery
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1 . HSSD8 sectional hydraulic valve has two hydraulic systems: open center and closed center.
- 2. The control methods include manual control, pneumatic control,ele ctro-hydraulic control, solenoid control, joystick control, and remote control, etc.
- 3. HSSD With advantages of compact structure, high pressure resistance and long service life.
- 4. The valve is widely used in construction machinery, environmental sanitation machinery, agricultural machinery and other types of machinery.
CHONGQING CHANGJIA INTERNATIONAL TRADING CO., LTD
Since:
Product Description
Product Details
.png)
HSSD With advantages of compact structure, high pressure resistance and long service life. the HSSD8 sectional hydraulic valve has two hydraulic systems: open center and closed center. Each valve body can be added with a relief
valve，a supplement valve and a combination valve according to customer requirements. The control methods include manual control, pneumatic control,ele ctro- hydraulic control, solenoid control, ele ctro-pneumatic control, joysitck control, and remote control, etc., which can meet the different control needs of customers. The valve is widely used in hydraulic systems of construction machinery, environmental sanitation machinery, mining machinery, agricultural machinery and other types of machinery.
Ordering code:
.png)
①Number of sections: 1-7
②Relief valve set pressure: 100- -250 bar
③inlet port size: see table (1)
④Control type: see table (2)

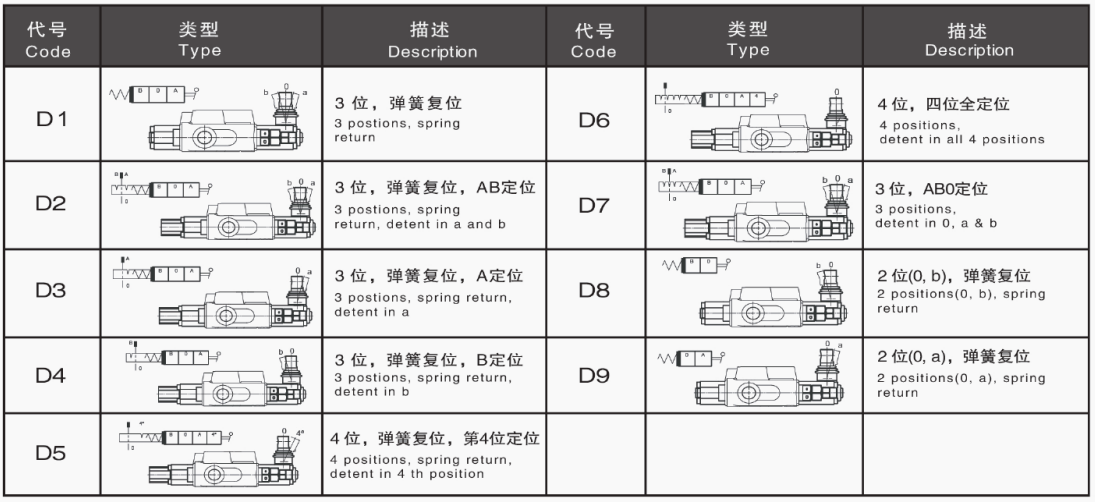

⑤Spool type: see table (3)
⑥Spool returning type: see table (4)
⑦Work port size:see table (1)
⑧Outlet port size: see table (1)
Table1.png)
Table2
.png)
Table3
.png)
Table 4
.png)
