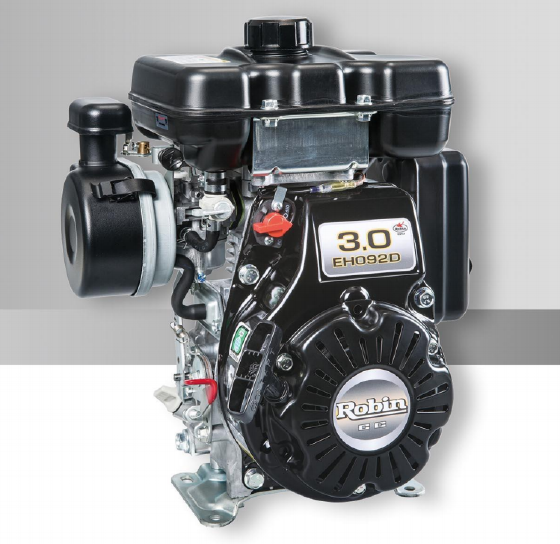

EH Series Gasoline Engine
MOQ: 10 PCS
Note: If you have any questions,please contact us
- 1.Simple operation system,vertical cylinder design,excellent lubrication,tilt operation is also very good.
- 2.With earthquake-resistant ventilation structure and reinforced casting body,it greatly improves the decrease of vibration and increase of durability.
- 3.Ignition system adopts advanced ignition timing and decompression device.
- 4.Higher fuel efficiency reduces environmental pollution.
- EH092D (Common type)
- EH092D(Impact rammer)
- EH100D(Impact rammer)
- EH122D(Impact rammer)
Changchai Co., Ltd
Since:
1913
Product Description
.png)
Specifications of EY series Gasoline Engine
| Model Item | EH092D (Common type) | EH092D(Impact rammer) | EH100D(Impact rammer) | EH122D(Impact rammer) |
| Type | Air cooled 4-Stroke vertical single cylinder engine with OHV horizontal shaft | |||
| Bore x Stroke (mm) | 51x42 | 53x44 | 60x43 | |
| Displacement (L) | 86 | 97.1 | 121 | |
| Rated Power(kW(PS)//rpm) | 1.8(2.5)/4200 | 2.1(2.9)4200 | 2.1(2.8)3600 | |
| Max Power (kW(PS)//rpm) | 2.1(2.9)/4200 | 2.4(3.2)4200 | 2.9(4.0)/4000 | |
| Running Direction | Counterclockwise | |||
| Fuel | Unleaded petrol for automobiles | |||
| Fuel Tank Capacity(L) | 1.5 | Null | ||
| Lubrication | Splash lubrication | |||
| Lubricate Tank capacity(L) | 0.3 | 0.4 | ||
| Carburetor | Float type | |||
| Ignition method | Electronic ignition without contact point | |||
| Net Weight (Kg) | 9.9 | 10.2 | 15.9 | |
| Overall Dimensions [LXWXH](mm) | 249x299x380 | 235x309x341 | 286x330x334 | |
- ◎The main technical features of EH series gasoline engine
- 1. Simple operation system, vertical cylinder design, excellent lubrication, tilt operation is also very good.
2. Good durability.
3. With earthquake-resistant ventilation structure and reinforced casting body, it greatly improves the decrease of vibration and increase of
durability.
4. Easy to start.
5. lgnition system adopts advanced ignition timing and decompression device.
6. Cost-effective and clean.
7. Higher fuel efficiency reduces environmental pollution.
Application:
For engine-driven mobile machinery:pumps,air compressors,agricultural machinery,flat rammer, cutting machines, generators and so on.
