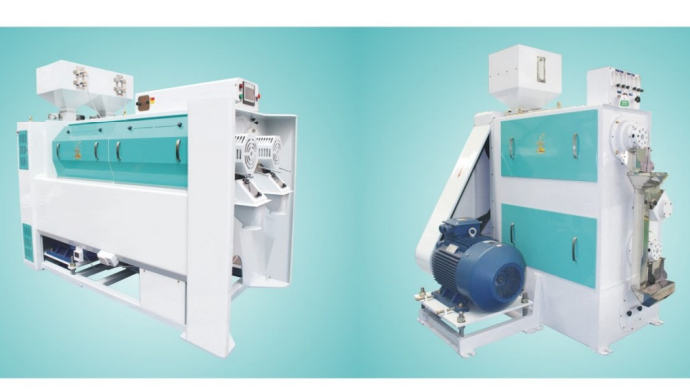

Double Dragon Twin Roller Rice Polisher
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1.Automatic control of water device system.multiple-point atomizing dampening system
- 2.Two independent polishing chambers in parallel with high capacity
- 3.The power is good for double motor.
- 4.Can be equipped with intelligent control system.Set current according to output, easy for operation.
- Double dragon G7B
- Double dragon G12A
- MPG158x2
- MPGH19x2
- MPG135Dx2
- MPG158PS
Hunan Chenzhou Grain and Oil Machinery Co., Ltd.
Since:
1967
Product Description
Main technical parameter
| Model | Double dragon G7B | Double dragon G12A | MPG158x2 | MPGH19x2 | MPG135Dx2 | MPG158PS |
| Output | 4-8t/h | 6-10t/h | 5-8t/h | String: 3-4.5t/h Union: 4-7t/h | String: 3.5-5t/h Union: 6-10t/h | String: 3-4t/h Union: 6-8t/h |
| Power | Host:2x(37-45)kw | Host:2x(45-55)kw | Host:2x(45-55)kw | Host:55-75kw | Host:2x(45-55)kw | Host:75kw |
| Fan: 15kw | Fan: 18.5kw | Fan: 18.5kw | Fan: 18.5kw | Fan: 18.5kw | Fan: 18.5kw | |
| Air Volume | 3500-4000m3/h | 4000-5000m3/h | 4000-5000m3/h | 4000-5000m3/h | 4000-5000m3/h | 4000-5000m3/h |
| Water Pressure | 0.25-0.3MPa | 0.25-0.3MPa | 0.25-0.3MPa | 0.25-0.3MPa | 0.25-0.3MPa | 0.25-0.3MPa |
| Weight | 2400kg | 2750kg | 3100kg | 1760kg | 2450kg | |
| Dimension (mm) | 2200X1160X2040 | 2250X1270X2030 | 2520X1350X2080 | 1840X1470X2270 | 2370X1820X2220 | 3340X1225X2575 |
