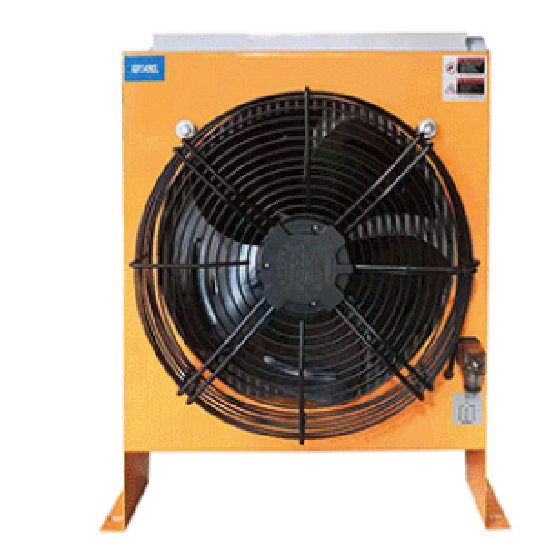

AH1490L 250L AH series Air Cooled Hydraulic Oil Cooler
MOQ: 100 PCS
Note: If you have any questions,please contact us
- AH1490L 250L AH series Air Cooled Hydraulic Oil Cooler
- AH1490L-250L
Hebei Keyuan Technology Co.，Ltd
Since:
2001
Product Description
AH1490L 250L AH series Air Cooled Hydraulic Oil Cooler
Model specification
| Model | AH1490L | Cooling Capacity | 18000KcaI/h |
| Traffic | 250L/min | Outsourcing Size | 64*54*40CM |
| Pressure of Work | 2MPa | The Fan Voltage | AG220V/AC380V DC12V/DC24V |
| Fan Power | 150W | Exhaust Air | 3150m3/h |
| The Cooling Area | 10.5m2 | Connection Thread | G1-1/2" |
| L/min | ≤95 | L/min(Max) | 250 |
| The Fan Diameter | Φ350mm
| note |
Outline drawing
Performance curve
