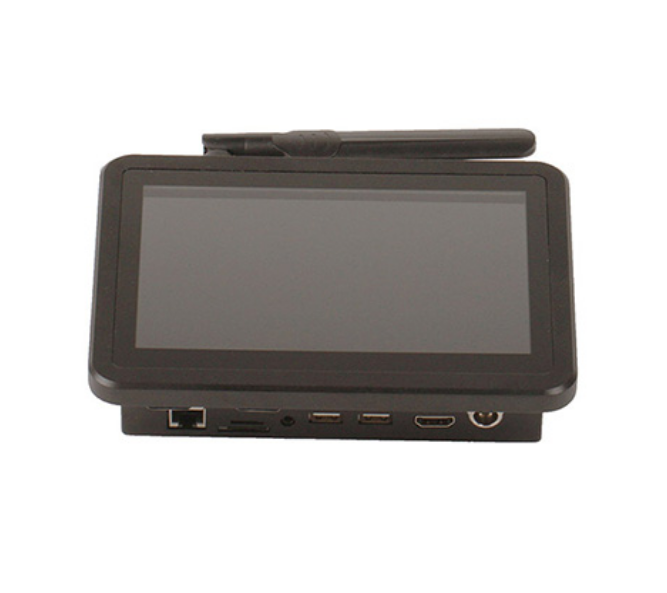

7'' Android Industrial Tablet Industrial Panel PC PPC-GS0792T
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 7" Multi-Point capacitive touch screen
- Chipset: RK3288 SoC Cortex-A17 Quad Core @ 1.8GHz Max.
- Onboard 2GB EMMC (4GB optional MOQ required)
- Provide 2*USB+2*COM port
- Support 1*1000M LAN port
- PPC-GS0792T
Shenzhen Geshem Technology Co., LTD
Since:
2008
Product Description
Performance
Chipset: RK3288 SoC Cortex-A17 Quad Core @ 1.8GHz Max
Memory: Onboard 2GB EMMC (4GB optional MOQ required)
Hardware Monitor: Monitors voltage, CPU, TEMP
Watchdog Timer: 0-255 sec by software
Storage: 8GB NAND Flash
(1).png)
Power
Power Supply: 12V DC (with adapater)
O/S
O/S: Android 5.1.1
I/O Port
USB: 2*USB 2.0
COM: 2*RS232 (1*RS485 optional)
Ethernet: 1*1000M LAN
Audio: 1*Line-out/In
Display: 1*HDMI
Bluetooth/WIFI: Support
TF: 1*TF card slot (up to 64GB)
SIM: 1*SIM card slot
MiniPCIe: 1*MiniPCIe(optional 3G/4G)
.png)
Environmental
Anti-vibration: 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration
Anti-shock: 10g acceleration, 11ms duration
IP Level: Front panel IP65
Reliability: MTBF≥5000h; MTTR≤0.5h
Operating Temperature: -10℃～50℃ with air flow
Storage Temperature: -20℃～60℃
Operating Humidity: 95% @40℃, non-condensing
Mechanical
Dimensions: 186mm(L)*135mm(W)*45.5mm(H)
Mounting size: VESA mounting: 100*100mm; Embedded mounting: 243*155mm
Material: Fanless High-strength and elegant Al-alloy panel
Weight: 1.11kg/1.61kg(NET/Gross)
Color: Black
.png)
