YE3-250M-4 YE3 Series IP55 Three-Phase Asynchronous Motors H132-450
MOQ: 20
Note: If you have any questions,please contact us
- 1.YE3/YE4 -series motor is totally enclosed squirrel-cage rotor ultra high efficiency, super ultra high efficiency three-phase asynchronous motor, it is widely used in the general use of all kinds of commonly use machinery and equipment, such as metal cut
- 2.The power rating and assembling dimension of YE3/YE4 -series motor is in according with IEC international standard, same with the Germany DIN2673 standard, the protection grade of motor is IP55, cooling mode IC411, duty continuously (S1). Testing mode o
- 3.The rated voltage of this Motor is 380 V, rated frequency 50 Hz. The altitude of the motor should not exceed 1000 m; Ambient air temperature changes with the seasons, but no more than 40 ℃, the lowest air temperature should not lower than -15℃.
- 4.The Motor can be derived according to the user's requirements.1. The different voltage, different frequency . Biaxial stretching. Dry (wet) special requirements such as tropical type motor.
- 5.The machine can according to user requirements to provide winding temperature measuring device, temperature of the stater winding temperature switch, bearing temperature measuring device, winding heating zone, etc.
- YE3-250M-4
Shanxi Electric Machinery Manufacturing Co., Ltd
Since:
1952
Product Description

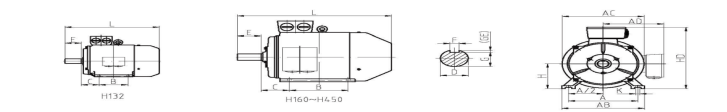

Frame | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||
A | B | C | D | E | F | Ga | H | Kb | AB | AC | AD | HD | L | ||||||||||
250M | 4、6 | 406 | 349 | 168 | ±4.0 | 65 | +0. 030 +0. 011 | 140 | ±0.50 | 18 | 0-0.043 | 58 | 0-0.20 | 250 | 0-0.5 | 24 | +0.052 | Φ2.0Ⓜ | 490 | 510 | 370 | 615 | 915 |
Frame | Flange | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||||||||||||||
A | B | c | D | E | F | Ga | H | K | M | N | A | Rd | S | T | holes | AB | AC | AD | HD | L | ||||||||||||||||
250M | FF500 | 4、6 | 406 | 349 | 168 | ±4.0 | 65 | +0.030； +0.011 | 140 | ±0.50 | 18 | 0-0.043 | 58 | 0-0.20 | 250 | 0 -0.5 | 24 | 0.52 | Φ2.0 Ⓜ | 500 | 450 | ±0.020 | 550 | 0 | ±4.0 | 18.5 | 0.52 | Φ1.2 Ⓜ | 5 | 0-0.12 | 8 | 490 | 510 | 370 | 615 | 915 |
Frame | Flange | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||||
D | E | F | Ga | M | N | Pc | Rd | Sb | T | holes | AC | AD | HF | L | ||||||||||||
250M | FF400 | 4, 6 | 65 | +0.030; +0.011 | 110 | ±0.50 | 18 | 0-0.043 | 58 | 0-0.20 | 500 | 450 | ±0.20 | 550 | 0 | ±4.0 | 18.5 | 0.52 | Φ1.2 Ⓜ | 5 | 0-0.12 | 8 | 510 | 370 | 650 | |
Frame | Flange | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||||
D | E | F | Ga | M | N | J | Rd | Sb | T | holes | AC | AD | HF | L | ||||||||||||
250M | FF500 | 4、6 | 65 | +0.030 ； +0.011 | 140 | ±0.50 | 18 | 0-0.043 | 58 | 0 -0.20 | 500 | 450 | ±0.020 | 550 | 0 | ±4.0 | 18.5 | +0.52 | Φ1.2 Ⓜ | 5 | 0 -0.12 | 8 | 510 | 370 | 595 | 915 |
