YE3-225S-4 YE3 Series IP55 Three-Phase Asynchronous Motors H132-450
MOQ: 20
Note: If you have any questions,please contact us
- 1.YE3/YE4 -series motor is totally enclosed squirrel-cage rotor ultra high efficiency, super ultra high efficiency three-phase asynchronous motor, it is widely used in the general use of all kinds of commonly use machinery and equipment, such as metal cut
- 2.The power rating and assembling dimension of YE3/YE4 -series motor is in according with IEC international standard, same with the Germany DIN2673 standard, the protection grade of motor is IP55, cooling mode IC411, duty continuously (S1). Testing mode o
- 3.The rated voltage of this Motor is 380 V, rated frequency 50 Hz. The altitude of the motor should not exceed 1000 m; Ambient air temperature changes with the seasons, but no more than 40 ℃, the lowest air temperature should not lower than -15℃.
- 4.The Motor can be derived according to the user's requirements.1. The different voltage, different frequency . Biaxial stretching. Dry (wet) special requirements such as tropical type motor.
- 5.The machine can according to user requirements to provide winding temperature measuring device, temperature of the stater winding temperature switch, bearing temperature measuring device, winding heating zone, etc.
- YE3-225S-4
Shanxi Electric Machinery Manufacturing Co., Ltd
Since:
1952
Product Description

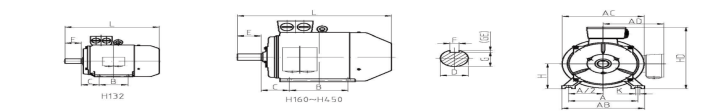

Frame | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||
A | B | C | D | E | F | Ga | H | Kb | AB | AC | AD | HD | L | ||||||||||
225S | 4 | 356 | 286 | 149 | ±4.0 | 60 | +0. 030 +0. 011 | 140 | ±0.50 | 18 | 0-0.043 | 53 | 0-0.20 | 225 | 0-0.5 | 18.5 | +0.052 | Φ1.2ⓜ | 435 | 470 | 335 | 560 | 830 |
Frame | Flange | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||||||||||||||
A | B | c | D | E | F | Ga | H | K | M | N | A | Rd | S | T | holes | AB | AC | AD | HD | L | ||||||||||||||||
225S | FF400 | 4 | 356 | 286 | 149 | ±4.0 | 60 | +0.030； +0.011 | 140 | ±0.50 | 18 | 0-0.043 | 53 | 0-0.20 | 225 | 0 -0.5 | 18.5 | 0.52 | Φ1.2 Ⓜ | 400 | 350 | ±0.018 | 450 | 0 | ±4.0 | 18.5 | 0.52 | Φ1.2 Ⓜ | 5 | 0-0.12 | 8 | 435 | 470 | 335 | 560 | 830 |
|
| Installation dimension and tolerance | Overall dimensions | |||||||||||||||||||||||
Frame | Flange | poles | D | E | F | Ga | M | N | Pc | Rd | Sb | T | holes | AC | AD | HF | L | |||||||||
225S | FF350 | 4 | 60 | +0.030; +0.011 | 140 | ±0.50 | 18 | 0-0.043 | 53 | 0-0.20 | 400 | 350 | ±0.018 | 450 | 0 | ±4.0 | 18.5 | 0.52 | Φ1.2 Ⓜ | 5 | 0-0.12 | 8 | 470 | 335 | 610 | 920 |

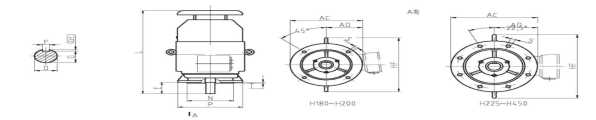

Frame | Flange | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||||
D | E | F | Ga | M | N | J | Rd | Sb | T | holes | AC | AD | HF | L | ||||||||||||
225S | FF400 | 4 | 60 | +0.030 ； +0.011 | 140 | ±0.50 | 18 | 0-0.043 | 53 | 0 -0.20 | 400 | 350 | ±0.018 | 450 | 0 | ±4.0 | 18.5 | +0.52 | Φ1.2 Ⓜ | 5 | 0 -0.12 | 8 | 470 | 335 | 535 | 830 |
