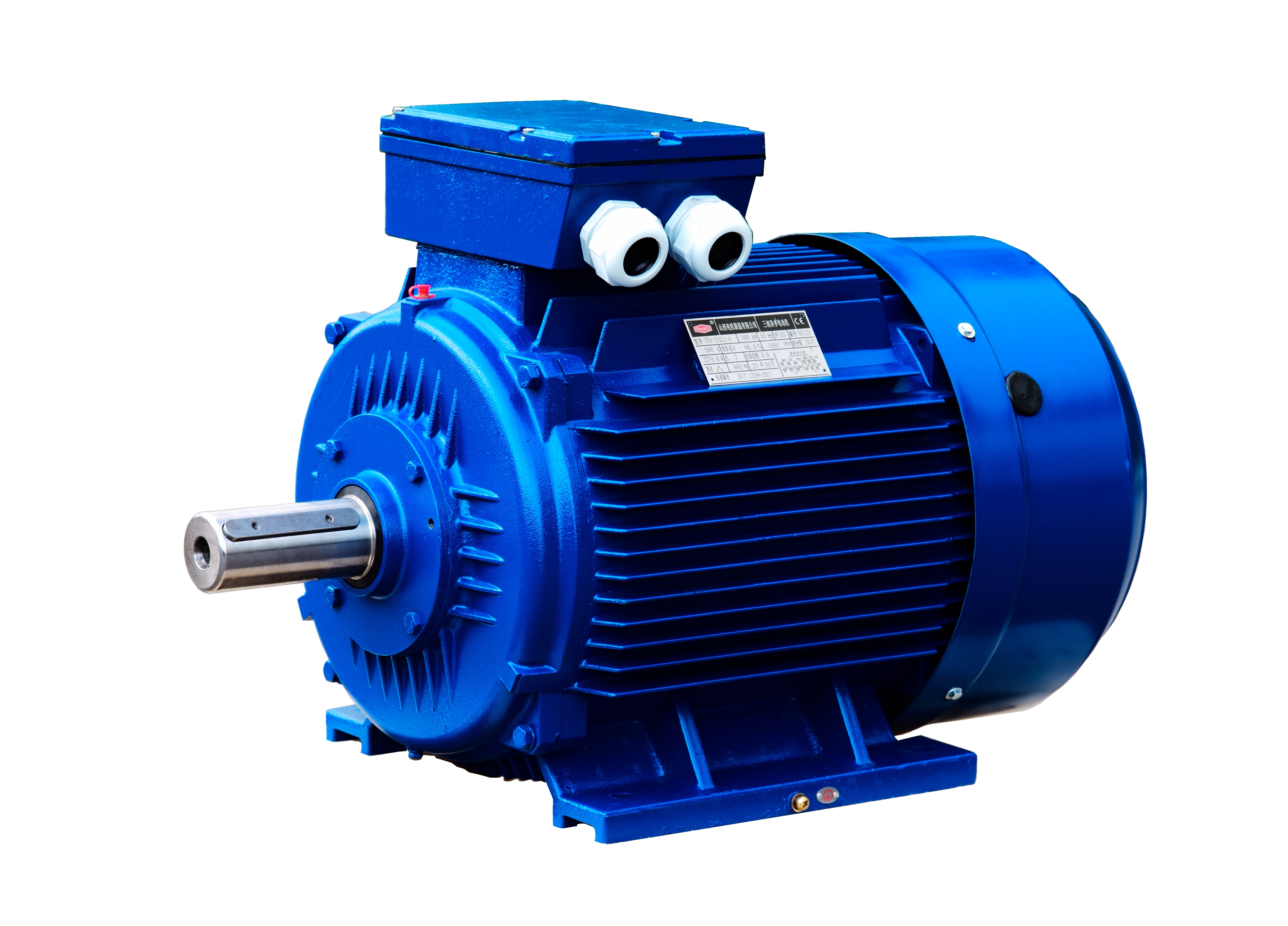

YE3-180M-2 YE3 Series IP55 3-Phase Asynchronous Motors H132-450 Super High Efficiency
MOQ: 20
Note: If you have any questions,please contact us
- 1.YE3/YE4 -series motor is totally enclosed squirrel-cage rotor ultra high efficiency, super ultra high efficiency three-phase asynchronous motor, it is widely used in the general use of all kinds of commonly use machinery and equipment, such as metal cut
- 2.The power rating and assembling dimension of YE3/YE4 -series motor is in according with IEC international standard, same with the Germany DIN2673 standard, the protection grade of motor is IP55, cooling mode IC411, duty continuously (S1). Testing mode o
- 3.The rated voltage of this Motor is 380 V, rated frequency 50 Hz. The altitude of the motor should not exceed 1000 m; Ambient air temperature changes with the seasons, but no more than 40 ℃, the lowest air temperature should not lower than -15℃.
- 4.The Motor can be derived according to the user's requirements. The different voltage, different frequency . Biaxial stretching. Dry (wet) special requirements such as tropical type motor.
- 5.The machine can according to user requirements to provide winding temperature measuring device, temperature of the stater winding temperature switch, bearing temperature measuring device, winding heating zone, etc.
- YE3-180M-2
Shanxi Electric Machinery Manufacturing Co., Ltd
Since:
1952
Product Description

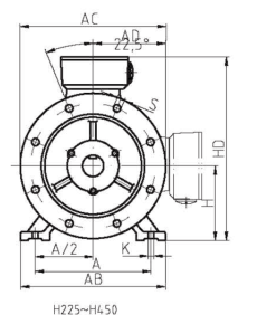

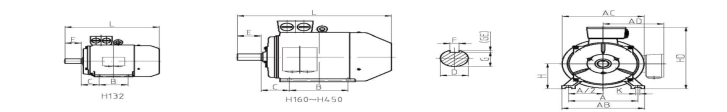

Frame | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||
A | B | C | D | E | F | Ga | H | Kb | AB | AC | AD | HD | L | ||||||||||
180M | 2~6 | 279 | 241 | 121 | ±3.0 | 48 | +0.018 +0.002 | 110 | ±0.43 | 14 | 0-0.043 | 42.5 | 0-0.20 | 180 | 0-0.5 | 14.5 | +0.43 | Φ1.2Ⓜ | 355 | 380 | 280 | 455 | 740 |
Frame | Flange | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||||||||||||||
A | B | c | D | E | F | Ga | H | K | M | N | A | Rd | S | T | holes | AB | AC | AD | HD | L | ||||||||||||||||
180M | FF330 | 2~6 | 279 | 241 | 121 | ±3.0 | 48 | +0.018 ；+0.002 | 110 | ±0.43 | 14 | 0-0.043 | 42.5 | 0-0.20 | 180 | 0 -0.5 | 14.5 | 0.43 | Φ1.2 Ⓜ | 300 | 250 | 0.016 ;0.013 | 350 | 0 | ±3.0 | 18.5 | 0.52 | Φ1.2 Ⓜ | 5 | 0-0.12 | 4 | 355 | 380 | 280 | 455 | 740 |

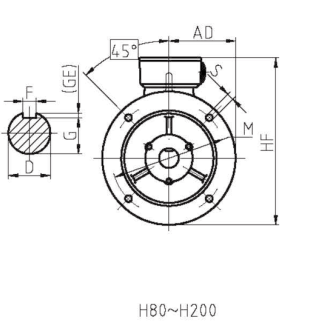

Frame | Flange | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||||
D | E | F | Ga | M | N | Pc | Rd | Sb | T | holes | AC | AD | HF | L | ||||||||||||
180M | FF300 | 2~6 | 48 | 0.018 +0.002 | 110 | ±0.43 | 14 | 0-0.043 | 42.5 | 0-0.20 | 300 | 250 | ±0.016 -0.013 | 350 | 0 | ±3.0 | 18.5 | 0.52 | Φ1.2 Ⓜ | 5 | 0-0.12 | 4 | 380 | 280 | 500 | 800 |
Frame | Flange | poles | Installation dimension and tolerance | Overall dimensions | ||||||||||||||||||||||
D | E | F | Ga | M | N | J | Rd | Sb | T | holes | AC | AD | HF | L | ||||||||||||
180M | FF300 | 2~6 | 48 | +0.018； -0.002 | 110 | ±0.43 | 14 | 0-0.043 | 425 | 0 -0.20 | 300 | 250 | +0.016 -0.013 | 350 | 0 | ±3.0 | 18.5 | +0.52 | Φ1.2 Ⓜ | 5 | 0 -0.12 | 4 | 380 | 280 | 430 | 740 |
